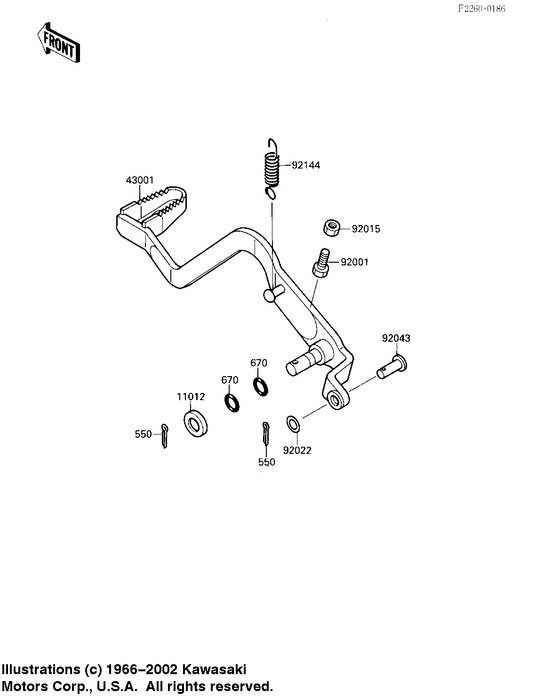

Brake pedal Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1576
CAP,BRAKE
Cap,brake; |
11012-1576 |
— | ||
|
43001
|
43001
43001-1221
LEVER-BRAKE,PEDAL
Lever-brake,pedal; |
43001-1221 |
— | ||
|
92001
|
92001
92001-1090 BOLT,HEX HEAD,6X25Bolt,6x25; |
92001-1090 |
from US $3.01 |
||
|
92015
|
92015
92015-1391 NUT,6MMNut,6mm; |
92015-1391 |
from US $2.38 |
||
|
92022
|
92022
92022-1028 WASHER,PLAINWasher,8.5x13x1; |
92022-1028 |
from US $3.20 |
||
|
92043
|
92043
92043-1039 PIN |
92043-1039 |
from US $6.65 |
||
|
92144
|
92144
92144-1170
SPRING,BRAKE PEDAL RE
Spring,brake pedal return; |
92144-1170 |
— | ||
|
550
|
550
550D2025 PIN-COTTER,2.0X25Pin-cotter,2.0x25; |
550D2025 |
US $3.37 |
||
| replacement | |||||
|
550
|
550
550AA2025 PIN-COTTER,2.0X25Pin-cotter,2.0x25; |
550AA2025 |
from US $1.09 |
||
|
670
|
670
670B2012 O RING,12MMO ring,12mm; |
670B2012 |
from US $2.84 |
||
