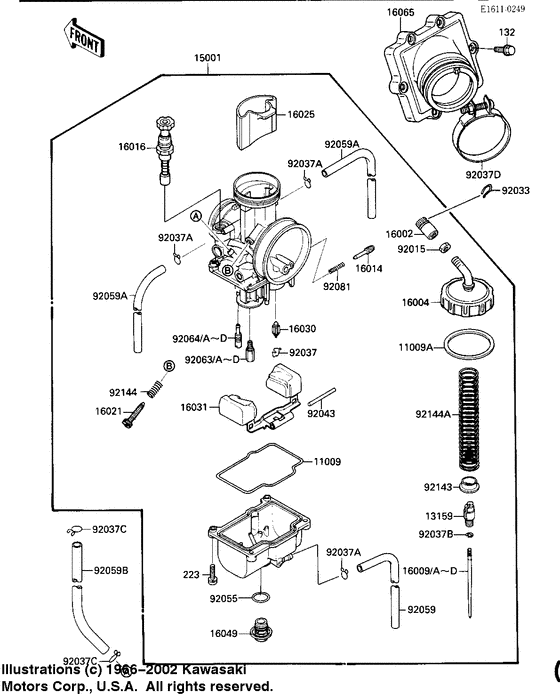

Carburetor (Kxf250-a2; 004205Å) Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1716 GASKET,FLOAT CHAMBERGasket,float chamber; |
11009-1716 |
from US $11.09 |
||
|
11009A
|
11009A
11009-1717 GASKET,CHAMBER CAPGasket,chamber cap; |
11009-1717 |
from US $9.66 |
||
|
13159
|
13159
13159-1060
CONNECTOR,THROTTLE CA
Connector,throttle cable; |
13159-1060 |
— | ||
| replacement | |||||
|
13159
|
13159
13159-1063 CONNECTOR,THROTTLE CAConnector,throttle cable; |
13159-1063 |
from US $15.05 |
||
|
15001
|
15001
15001-1458 CARBURETOR-ASSY |
15001-1458 |
US $556.92 |
||
|
16002
|
16002
16002-1057 ADJUSTER-CABLE |
16002-1057 |
from US $16.16 |
||
|
16004
|
16004
16004-1063 CAP-CHAMBER |
16004-1063 |
US $61.79 |
||
| replacement | |||||
|
16004
|
16004
16004-1070 CAP-CHAMBER |
16004-1070 |
from US $51.01 |
||
|
16009
|
16009
16009-1424 NEEDLE-JET,R1467JNeedle-jet,r1467j; (option) |
16009-1424 |
US $20.16 |
||
|
16009A
|
16009A
16009-1425 NEEDLE-JET,R1468JNeedle-jet,r1468j; (option) |
16009-1425 |
US $27.23 |
||
|
16009B
|
16009B
16009-1426 NEEDLE-JET,R1469JNeedle-jet,r1469j; |
16009-1426 |
US $27.23 |
||
|
16009C
|
16009C
16009-1427 NEEDLE-JET,R1470JNeedle-jet,r1470j; (option) |
16009-1427 |
US $27.23 |
||
|
16009D
|
16009D
16009-1428 NEEDLE-JET,R1471JNeedle-jet,r1471j; (option) |
16009-1428 |
US $27.23 |
||
|
16014
|
16014
16014-1059 SCREW-PILOT AIR |
16014-1059 |
US $12.31 |
||
|
16016
|
16016
16016-1075 PLUNGERPlunger,starter; |
16016-1075 |
from US $27.38 |
||
|
16021
|
16021
16021-1124 SCREW-THROTTLE STOP |
16021-1124 |
from US $16.79 |
||
|
16025
|
16025
16025-1148 VALVE-THROTTLE,CA6.0Valve-throttle,ca6; |
16025-1148 |
US $154.09 |
||
|
16030
|
16030
16030-1057 VALVE-FLOAT |
16030-1057 |
from US $34.26 |
||
|
16031
|
16031
16031-1067 FLOAT |
16031-1067 |
from US $43.08 |
||
|
16049
|
16049
16049-1051 COVER-MAIN JET |
16049-1051 |
from US $21.39 |
||
|
16065
|
16065
16065-1170
HOLDER-CARBURETOR
|
16065-1170 |
— | ||
|
92015
|
92015
92015-1574 NUT,CABLE ADJUST LOCKNut,cable adjust lock; |
92015-1574 |
from US $3.80 |
||
|
92033
|
92033
92036-018 CIRCLIP |
92036-018 |
from US $2.53 |
||
|
92037
|
92037
16044-007 CLIP,FLOAT VALVEClamp,float valve; |
16044-007 |
from US $6.18 |
||
|
92037A
|
92037A
92037-1396 CLAMP,TUBEClamp,tube; |
92037-1396 |
from US $3.33 |
||
|
92037B
|
92037B
92037-1401 CLAMP,JET NEEDLEClamp,jet needle; |
92037-1401 |
from US $2.85 |
||
|
92037C
|
92037C
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $4.95 |
||
|
92037D
|
92037D
92037-1486 CLAMP,55MMClamp,55mm; |
92037-1486 |
from US $5.54 |
||
|
92043
|
92043
92043-1207
PIN,FLOAT
Pin,float; |
92043-1207 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-1148 PIN,FLOATPin,float; |
92043-1148 |
from US $4.20 |
||
|
92055
|
92055
92055-1167 RING-O,MAIN JET COVERRing-o,main jet cover; |
92055-1167 |
from US $7.27 |
||
|
92059
|
92059
92059-1897 TUBE,3.5X6.5X390Tube,3.5x6.5x330; |
92059-1897 |
US $8.03 |
||
| replacement | |||||
|
92059
|
92059
92059-1899 TUBE,3.5X6.5X390Tube,3.5x6.5x330; |
92059-1899 |
from US $10.45 |
||
|
92059A
|
92059A
92059-1950 TUBE,4X7X270Tube,4x7x270; |
92059-1950 |
US $4.88 |
||
| replacement | |||||
|
92059A
|
92059A
92059-1898 TUBE,4X7X480Tube,4x7x270; |
92059-1898 |
from US $11.09 |
||
|
92059B
|
92059B
92059-3731 TUBE,2.5X5.8X270Tube,2.5x5.8x270; |
92059-3731 |
from US $7.49 |
||
|
92063
|
92063
92063-1338 JET-MAIN,#135Jet-main,#135; (option) |
92063-1338 |
from US $9.03 |
||
|
92063A
|
92063A
92063-1359 JET-MAIN,#138Jet-main,#138; (option) |
92063-1359 |
from US $9.03 |
||
|
92063B
|
92063B
92063-1360 JET-MAIN,#140Jet-main,#140; |
92063-1360 |
from US $9.03 |
||
|
92063C
|
92063C
92063-1361 JET-MAIN,#142Jet-main,#142; (option) |
92063-1361 |
from US $8.71 |
||
|
92063D
|
92063D
92063-1362 JET-MAIN,#145Jet-main,#145; (option) |
92063-1362 |
from US $10.45 |
||
|
92064
|
92064
92064-1130 JET-PILOT,#52Jet-pilot,#52; (option) |
92064-1130 |
from US $11.88 |
||
|
92064A
|
92064A
92064-1142 JET-PILOTJet-pilot,#45; (option) |
92064-1142 |
from US $12.57 |
||
|
92064B
|
92064B
92064-1143 JET-PILOT,#48Jet-pilot,#48; (option) |
92064-1143 |
from US $12.57 |
||
|
92064C
|
92064C
92064-1144 JET-PILOTJet-pilot,#50; |
92064-1144 |
from US $11.25 |
||
|
92064D
|
92064D
92064-1145 JET-PILOT,#55Jet-pilot,#55; (option) |
92064-1145 |
from US $11.88 |
||
|
92081
|
92081
92081-1555 SPRING,ADJUST SCREWSpring,adjust screw; |
92081-1555 |
from US $4.09 |
||
|
92143
|
92143
92143-1201 COLLAR,THROTTLE VALVECollar,throttle valve; |
92143-1201 |
from US $15.21 |
||
|
92144
|
92144
92144-1257 SPRING,THROTTLE STOPSpring,throttle stop screw; |
92144-1257 |
from US $4.44 |
||
|
92144A
|
92144A
92144-1284
SPRING,THROTTLE
Spring,throttle valve; |
92144-1284 |
— | ||
|
132
|
132
132G0620
BOLT-FLANGED-SMALL,6X
|
132G0620 |
— | ||
| replacement | |||||
|
132
|
132
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
223
|
223
223C0416
SCREW-PAN-WS-CROS
|
223C0416 |
— | ||
| replacement | |||||
|
223
|
223
223AB0416 SCREW-PAN-WS-CROS |
223AB0416 |
from US $0.95 |
||
