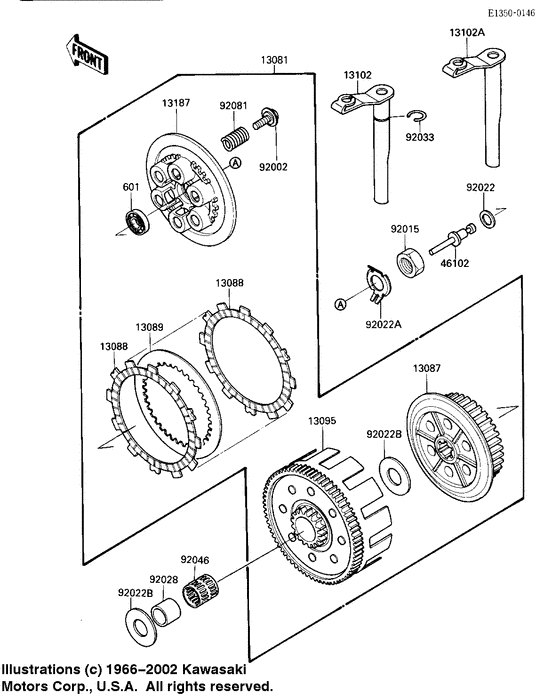

Clutch Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13081
|
13081
13081-1249 CLUTCH-ASSY |
13081-1249 |
US $438.44 |
||
|
13087
|
13087
13087-1085
Hub-clutch
|
13087-1085 |
— | ||
|
13088
|
13088
13088-1069 PLATE-FRICTION |
13088-1069 |
US $12.28 |
||
| replacement | |||||
|
13088
|
13088
13088-1114 PLATE-FRICTION |
13088-1114 |
from US $17.78 |
||
|
13089
|
13089
13089-1074 PLATE-CLUTCH |
13089-1074 |
US $12.35 |
||
| replacement | |||||
|
13089
|
13089
13089-1079 PLATE-CLUTCH |
13089-1079 |
from US $14.10 |
||
|
13095
|
13095
13095-1160 HOUSING-COMP-CLUTCH |
13095-1160 |
US $418.70 |
||
|
13102A
|
13102A
13102-1096
RELEASE-COMP-CLUTCH
|
13102-1096 |
— | ||
|
13187
|
13187
13187-1060 PLATE-CLUTCH OPERATIN |
13187-1060 |
from US $65.67 |
||
|
46102
|
46102
46102-1146 ROD,CLUTCHRod,clutch; |
46102-1146 |
US $23.62 |
||
|
92002
|
92002
92002-1949 BOLT,CLUTCHBolt,clutch; |
92002-1949 |
US $4.91 |
||
| replacement | |||||
|
92002
|
92002
92150-1489 BOLT,CLUTCHBolt,clutch; |
92150-1489 |
from US $3.96 |
||
|
92015
|
92015
92016-028 NUT 20MMNut,20mm; |
92016-028 |
from US $6.34 |
||
| replacement | |||||
|
92015
|
92015
92016-043
NUT,20MM
Nut,20mm; |
92016-043 |
— | ||
|
92022
|
92022
92022-1415 WASHER,10.2X18X1.0,SKWasher,10.2x18x1.0,sk5; |
92022-1415 |
from US $2.85 |
||
|
92022A
|
92022A
92022-1835 WASHER |
92022-1835 |
US $3.47 |
||
|
92022B
|
92022B
92022-1836
WASHER,22.3X38X2.0
Washer,22.3x38x2.0; |
92022-1836 |
— | ||
|
92028
|
92028
92028-1385 BUSHING,22X28X27.5Bushing,22x28x27.5; |
92028-1385 |
from US $22.41 |
||
|
92046
|
92046
92046-1149 BEARING-NEEDLE,28R322Bearing-needle,28r3226; |
92046-1149 |
US $29.47 |
||
|
92081
|
92081
92081-1151 SPRING,CLUTCHSpring,clutch; |
92081-1151 |
from US $6.49 |
||
|
601
|
601
601B6001
BEARING BALL #6001
Bearing-ball,#6001c3; |
601B6001 |
— | ||
| replacement | |||||
|
601
|
601
92045-1235 BEARING-BALL (12X28X8)Bearing-ball,#6001c3; |
92045-1235 |
from US $16.42 |
||
