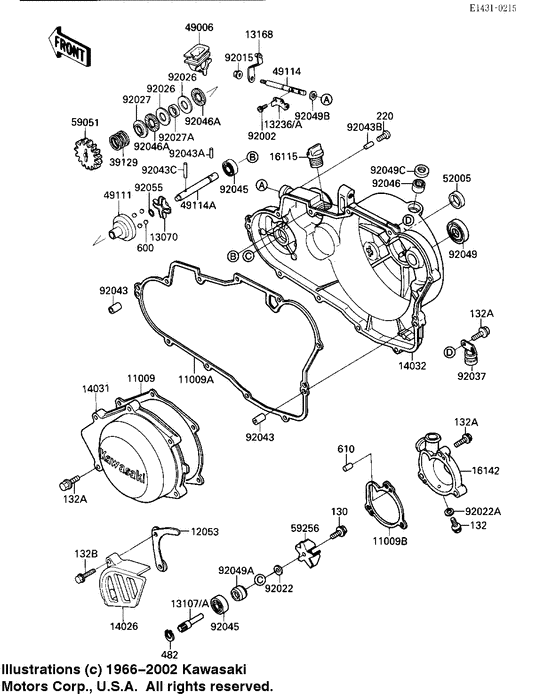

Engine cover Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1653 GASKET,GENERATOR COVRGasket,generator cover; |
11009-1653 |
US $20.75 |
||
| replacement | |||||
|
11009
|
11009
11060-1459 GASKET,GENERATOR COVRGasket,generator cover; |
11060-1459 |
US $20.75 |
||
|
11009A
|
11009A
11009-1654 Gasket, clutch coverGasket,clutch cover; |
11009-1654 |
US $32.20 |
||
| replacement | |||||
|
11009A
|
11009A
11060-1469 Gasket, clutch coverGasket,clutch cover; |
11060-1469 |
US $32.20 |
||
|
11009B
|
11009B
11009-1655 GASKET, PUMP COVERGasket,pump cover; |
11009-1655 |
US $4.36 |
||
| replacement | |||||
|
11009B
|
11009B
11060-1447 GASKET, PUMP COVERGasket,pump cover; |
11060-1447 |
US $4.36 |
||
|
12053
|
12053
12053-1251 GUIDE-CHAIN |
12053-1251 |
US $77.20 |
||
|
13070
|
13070
13070-1122 GUIDE |
13070-1122 |
US $52.66 |
||
|
13107A
|
13107A
13107-1224 SHAFT,IMPELLERShaft,impeller; |
13107-1224 |
US $29.32 |
||
|
13168
|
13168
13168-1342
Lever
|
13168-1342 |
— | ||
| replacement | |||||
|
13168
|
13168
13168-1494
LEVER,GOVERNOR
|
13168-1494 |
— | ||
|
13236A
|
13236A
13236-1182
LEVER-COMP,PUMP
Lever-comp,governor; |
13236-1182 |
— | ||
| replacement | |||||
|
13236A
|
13236A
13236-1250 LEVER-COMP,PUMPLever-comp,governor; |
13236-1250 |
US $7.60 |
||
|
14026
|
14026
14026-1119
COVER-CHAIN
|
14026-1119 |
— | ||
|
14031
|
14031
14031-1204 Cover-generator |
14031-1204 |
US $59.76 |
||
|
14032
|
14032
14032-1232 COVER-CLUTCH |
14032-1232 |
US $298.33 |
||
|
16115
|
16115
16115018 CAP-OIL FILLER |
16115018 |
from US $7.92 |
||
|
16142
|
16142
16142-1074 COVER-PUMP |
16142-1074 |
US $47.11 |
||
|
39129
|
39129
39129-1001 SPRING-GOVERNER,GOVER |
39129-1001 |
from US $4.46 |
||
|
49006
|
49006
49006-1202
BOOT
|
49006-1202 |
— | ||
|
49111
|
49111
49111-1051 HOLDER-GOVERNOR WEIGH |
49111-1051 |
from US $42.94 |
||
|
49114
|
49114
49114-1061 SHAFT-GOVERNOR |
49114-1061 |
US $20.28 |
||
|
49114A
|
49114A
49114-1062 SHAFT-GOVERNOR |
49114-1062 |
US $21.08 |
||
|
52005
|
52005
52005-1055 GAUGE,OIL LEVELGauge,oil level; |
52005-1055 |
from US $11.72 |
||
| replacement | |||||
|
52005
|
52005
52005-0019 GAUGE,OIL LEVELGauge,oil level; |
52005-0019 |
from US $11.16 |
||
|
59051
|
59051
59051-1183 GEAR-SPUR,GOVERNORGear-spur,governor; |
59051-1183 |
US $10.64 |
||
|
59256
|
59256
59256-1067 IMPELLER |
59256-1067 |
US $6.81 |
||
|
92002
|
92002
92002-1403 BOLT,SOCKET,4X8Bolt,socket,4x8; |
92002-1403 |
from US $2.30 |
||
| replacement | |||||
|
92002
|
92002
92150-1888 BOLT,SOCKET,4X8Bolt,socket,4x8; |
92150-1888 |
from US $2.32 |
||
|
92015
|
92015
92015-1193
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1193 |
— | ||
| replacement | |||||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92022
|
92022
92022-1380 WASHER,5.2X13X1Washer,5.2x13x1; |
92022-1380 |
from US $2.69 |
||
|
92022A
|
92022A
92022-304 WASHER,PLAINWasher,6.2x11x1; |
92022-304 |
from US $2.53 |
||
|
92026
|
92026
92026-1238 SPACER,15X28X1Spacer,15x28x1; |
92026-1238 |
from US $5.70 |
||
|
92027
|
92027
92027-1838 COLLAR |
92027-1838 |
from US $17.27 |
||
|
92027A
|
92027A
92027-1839 COLLAR,15.2X17X4Collar,15.2x17x4; |
92027-1839 |
from US $8.08 |
||
|
92043
|
92043
92042-007 PIN-DOWELPin,dowel,6.3x8x14; |
92042-007 |
from US $4.44 |
||
|
92043A
|
92043A
92043-1256 PIN,3X12.8Pin,3x12.8; |
92043-1256 |
from US $3.17 |
||
|
92043B
|
92043B
92043-1293 PIN,2X9.8Pin,2x9.8; |
92043-1293 |
from US $4.95 |
||
|
92043C
|
92043C
92043-1319 PIN,3X19.8Pin,3x19.8; |
92043-1319 |
from US $3.01 |
||
|
92045
|
92045
92045-1048 Bearing-ball,#608Bearing-ball,#608; |
92045-1048 |
US $6.73 |
||
| replacements | |||||
|
92045
|
92045
92045-1305 BEARING-BALLBearing-ball,#608; |
92045-1305 |
US $12.78 |
||
|
92045
|
92045
92045-1497 Bearing-Ball,608Mc3Bearing-ball,#608; |
92045-1497 |
from US $12.67 |
||
|
92046
|
92046
92046-1010
BEARING-NEEDLE,HK1210
Bearing-needle,hk1210; |
92046-1010 |
— | ||
| replacement | |||||
|
92046
|
92046
92046-0034 BEARING-NEEDLE,HK1210FMBearing-needle,hk1210; |
92046-0034 |
from US $12.67 |
||
|
92046A
|
92046A
92046-1052 BEARING-NEEDLE,AXK110Bearing-needle,axk1102; |
92046-1052 |
from US $14.52 |
||
|
92049
|
92049
92049-013 OIL SEAL,SB18307Seal-oil,sb18307; |
92049-013 |
from US $8.87 |
||
|
92049A
|
92049A
92049-1081
SEAL-OIL,MHSD8X18X10J
Seal-oil,a9567; |
92049-1081 |
— | ||
| replacement | |||||
|
92049A
|
92049A
92049-1366 SEAL-OIL,MHSD8X18X10JSeal-oil,a9567; |
92049-1366 |
from US $11.88 |
||
|
92049B
|
92049B
92049-1207 SEAL-OIL,SDO8144Seal-oil,sdo8144; |
92049-1207 |
from US $6.97 |
||
|
92049C
|
92049C
92049-1271 SEAL-OILSeal-oil,tb12205.5; |
92049-1271 |
from US $8.15 |
||
|
92055
|
92055
92055-1343 RING-ORing-o,5.5x1.5; |
92055-1343 |
from US $0.79 |
||
| replacement | |||||
|
92055
|
92055
92055-1339 RING-O,5.5X1.5Ring-o,5.5x1.5; |
92055-1339 |
from US $2.85 |
||
|
130
|
130
130P0510 BOLT-FLANGED |
130P0510 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130CA0510 BOLT-FLANGED |
130CA0510 |
from US $0.95 |
||
|
132
|
132
132G0608 BOLT-FLANGED-SMALL,6X |
132G0608 |
from US $1.43 |
||
| replacement | |||||
|
132
|
132
132BA0608 BOLT-FLANGED-SMALL,6X |
132BA0608 |
from US $1.11 |
||
|
132A
|
132A
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
132A
|
132A
92002-1609 BOLT |
92002-1609 |
from US $2.85 |
||
|
132A
|
132A
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
132B
|
132B
132G0630
BOLT-FLANGED-SMALL
|
132G0630 |
— | ||
| replacement | |||||
|
132B
|
132B
132BA0630 BOLT-FLANGED-SMALL |
132BA0630 |
from US $1.27 |
||
|
220
|
220
220B0306
SCREW-PAN-CROS,3X6
|
220B0306 |
— | ||
| replacement | |||||
|
220
|
220
220AA0306 SCREW-PAN-CROS,3X6 |
220AA0306 |
from US $0.78 |
||
|
482
|
482
482J7000 CIRCLIP 7MMCirclip-type-e,7mm; |
482J7000 |
from US $1.11 |
||
|
600
|
600
600A1000 BALL STEEL 5/16'Ball-steel,5/16"; |
600A1000 |
from US $0.95 |
||
|
610
|
610
610A0408 PIN DOWEL 4X8Roller,4x8; |
610A0408 |
from US $1.07 |
||
