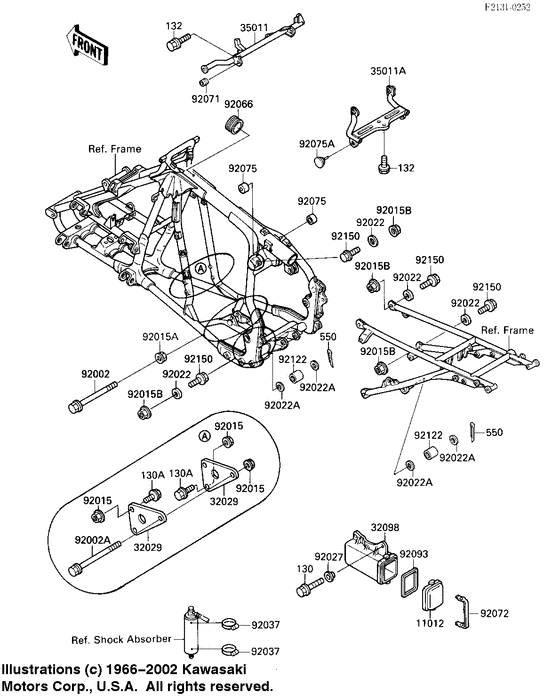

Frame fittings (Kxf250-a2) Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1606 CAP,TOOL CASECap,tool case; |
11012-1606 |
from US $7.46 |
||
|
32029
|
32029
32029-1526 BRACKET-ENGINE,FRBracket-engine,fr; |
32029-1526 |
US $14.87 |
||
|
32098
|
32098
32098-1078
CASE-TOOL
|
32098-1078 |
— | ||
| replacement | |||||
|
32098
|
32098
39012-1055 CASE-STORAGE |
39012-1055 |
US $28.15 |
||
|
35011
|
35011
35011-1338
STAY,FRONT FENDER&SID
Stay,front fender&side cover; |
35011-1338 |
— | ||
|
35011A
|
35011A
35011-1339 STAY,SIDE COVERStay,side cover; |
35011-1339 |
US $63.65 |
||
|
92002
|
92002
92002-1416
BOLT,FLANGED,8X90
Bolt,flanged,8x93; |
92002-1416 |
— | ||
|
92002A
|
92002A
92002-1849 BOLT,FLANGED,8X90Bolt,flanged,8x90; |
92002-1849 |
from US $5.07 |
||
|
92015
|
92015
92015-1143 NUT-8MMNut,8mm; |
92015-1143 |
from US $0.99 |
||
|
92015A
|
92015A
92015-1335 NUT,LOCK,FLANGED,10MMNut,flanged,10mm; |
92015-1335 |
from US $3.15 |
||
| replacement | |||||
|
92015A
|
92015A
92210-0276 NUT,LOCK,FLANGED,10MMNut,flanged,10mm; |
92210-0276 |
from US $1.43 |
||
|
92015B
|
92015B
92015-1506 NUTNut,lock,8mm; |
92015-1506 |
from US $5.78 |
||
|
92022
|
92022
92022-1561 WASHER,8.5X20X1.6Washer,8.5x20x1.6; |
92022-1561 |
from US $2.69 |
||
|
92022A
|
92022A
92022-1863
WASHER,13.5X23X2.3
Washer,13.5x23x2.3; |
92022-1863 |
— | ||
|
92027
|
92027
92027-1354 COLLAR |
92027-1354 |
from US $2.79 |
||
|
92037
|
92037
92037-509 CLAMP |
92037-509 |
from US $6.49 |
||
|
92066
|
92066
92066-1310 PLUGPlug,frame fitting; |
92066-1310 |
US $7.79 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92072
|
92072
92072-1226 BAND,TOOL CASE CAPBand,tool case cap; |
92072-1226 |
from US $3.27 |
||
|
92075
|
92075
92075-044 DAMPER RUBBERDamper,fuel tank; |
92075-044 |
from US $2.79 |
||
|
92075A
|
92075A
92075-1911 DAMPER,REAR STAYDamper,rear stay; |
92075-1911 |
US $4.77 |
||
|
92093
|
92093
92093-1247 SEAL,TOOL CASE CAPSeal,tool case cap; |
92093-1247 |
from US $3.11 |
||
|
92122
|
92122
92122-1144
ROLLER,CHAIN GUIDE
Roller,chain guide; |
92122-1144 |
— | ||
|
92150
|
92150
92150-1017 BOLTBolt,flanged,8x20; |
92150-1017 |
US $2.50 |
||
|
130
|
130
130G0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130G0820 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130BA0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130BA0820 |
from US $1.43 |
||
|
130A
|
130A
130G0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130G0850 |
from US $1.43 |
||
| replacement | |||||
|
130A
|
130A
130BA0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130BA0850 |
from US $1.40 |
||
|
132
|
132
132G0610
BOLT-FLANGED-SMALL,6X
|
132G0610 |
— | ||
| replacement | |||||
|
132
|
132
132BA0610 BOLT-FLANGED-SMALL,6X |
132BA0610 |
from US $0.79 |
||
|
550
|
550
550D2025 PIN-COTTER,2.0X25Pin-cotter,2.0x25; |
550D2025 |
US $3.37 |
||
| replacement | |||||
|
550
|
550
550AA2025 PIN-COTTER,2.0X25Pin-cotter,2.0x25; |
550AA2025 |
from US $1.09 |
||
