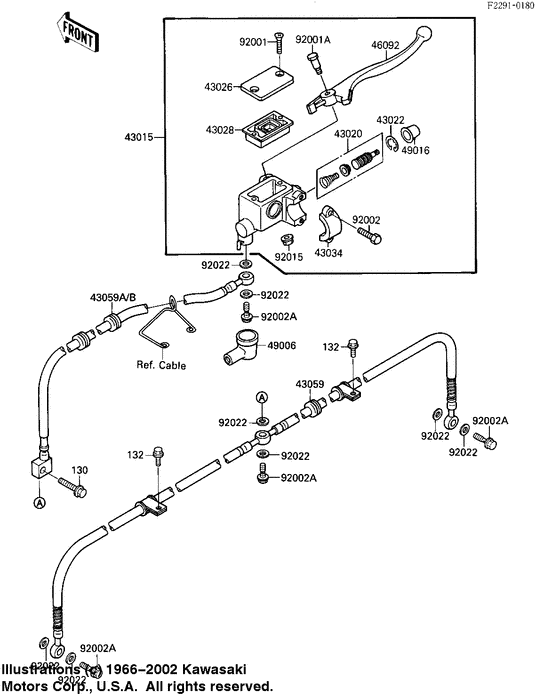

Front master cylinder Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43015
|
43015
43015-1360 CYLINDER-ASSY-MASTER,Cylinder-assy-master,fr; |
43015-1360 |
US $372.11 |
||
|
43020
|
43020
43020-1031 PISTON-COMP-BRAKE |
43020-1031 |
US $48.78 |
||
| replacement | |||||
|
43020
|
43020
43020-1098 PISTON-COMP-BRAKE |
43020-1098 |
from US $34.41 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERStopper-brake,piston; |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1022 CAP-BRAKE |
43026-1022 |
from US $31.26 |
||
|
43028
|
43028
43028-1061 DIAPHRAGM |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER CHolder-brake,master cylinder; |
43034-1016 |
from US $14.10 |
||
|
43059
|
43059
43059-1389
HOSE-BRAKE,FR
Hose-brake,fr; |
43059-1389 |
— | ||
|
43059B
|
43059B
43059-1425
HOSE-BRAKE,FR
Hose-brake,fr; |
43059-1425 |
— | ||
|
46092
|
46092
46092-1144 LEVER-GRIP,FRONT BRAKLever-grip,front brake; |
46092-1144 |
US $21.35 |
||
|
49006
|
49006
49006-1040 BOOT,DUSTBoot,dust; |
49006-1040 |
from US $7.29 |
||
| replacement | |||||
|
49006
|
49006
49006-1041 BOOT,DUSTBoot,dust; |
49006-1041 |
from US $9.35 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERCover-seal,master cylinder; |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1727 BOLT,MASTER CYLINDERScrew,5mm; |
92001-1727 |
from US $2.85 |
||
|
92001A
|
92001A
92001-1728 BOLT,FRONT BRAKE LEVERBolt,front brake lever; |
92001-1728 |
from US $10.45 |
||
|
92002
|
92002
92002-1860 BOLT |
92002-1860 |
US $4.27 |
||
| replacement | |||||
|
92002
|
92002
92002-1894 BOLT |
92002-1894 |
from US $3.17 |
||
|
92002A
|
92002A
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
92002A
|
92002A
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
43067-001 WASHER-SEAL,10.1X14.5Washer,10.5x15x1.5; |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5Washer,10.5x15x1.5; |
49091-0001 |
from US $1.27 |
||
|
130
|
130
130G0825
BOLT-FLANGED,8X25
Bolt-flanged,8x25; |
130G0825 |
— | ||
| replacement | |||||
|
130
|
130
130BA0825 BOLT-FLANGED,8X25Bolt-flanged,8x25; |
130BA0825 |
from US $1.27 |
||
|
132
|
132
132G0610
BOLT-FLANGED-SMALL,6X
|
132G0610 |
— | ||
| replacement | |||||
|
132
|
132
132BA0610 BOLT-FLANGED-SMALL,6X |
132BA0610 |
from US $0.79 |
||
