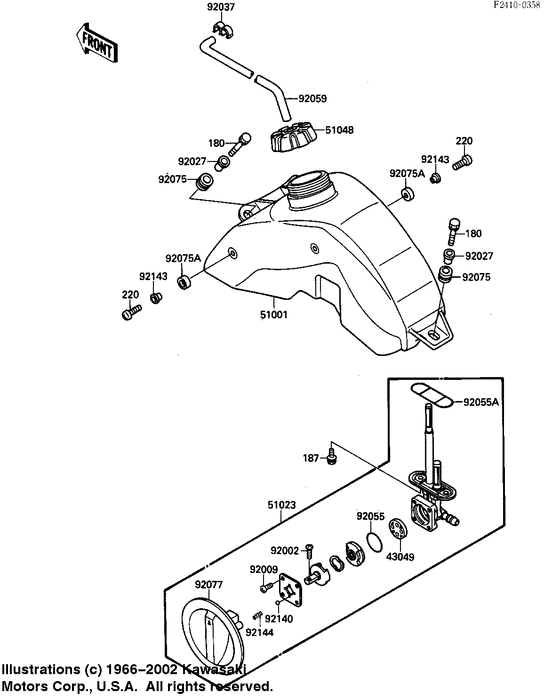

Fuel tank Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43049
|
43049
43049-1017 PACKING,FUEL TAP VALVPacking,fuel tap lever; |
43049-1017 |
from US $5.70 |
||
| replacement | |||||
|
43049
|
43049
43049-1102 PACKING,VALVEPacking,fuel tap lever; |
43049-1102 |
from US $4.59 |
||
|
51001
|
51001
51001-1262 TANK-COMP-FUEL |
51001-1262 |
US $185.35 |
||
|
51023
|
51023
51023-1137
TAP-ASSY
Tap-assy,fuel; |
51023-1137 |
— | ||
| replacement | |||||
|
51023
|
51023
51023-1348
TAP-ASSY
Tap-assy,fuel; |
51023-1348 |
— | ||
|
51048
|
51048
51048-1090 Cap-assy-tank,fuelCap-assy-tank,fuel; |
51048-1090 |
US $37.84 |
||
| replacement | |||||
|
51048
|
51048
51048-1133 CAP-ASSY-TANK,FUELCap-assy-tank,fuel; |
51048-1133 |
from US $47.09 |
||
|
92002
|
92002
92002-1996 BOLTBolt,screw,4x12; |
92002-1996 |
from US $3.04 |
||
|
92009
|
92009
92009-1123 SCREW,PAN HEAD,3X5Screw,3x5; |
92009-1123 |
from US $0.79 |
||
|
92027
|
92027
92027-1847 COLLAR,6=16.1Collar,l=16.1; |
92027-1847 |
from US $3.64 |
||
|
92037
|
92037
92037-1603 CLAMPClamp,hose; |
92037-1603 |
from US $3.17 |
||
|
92055
|
92055
92055-1111
O-RING,FUEL TAP LEVER
Ring-o,fuel tap lever; |
92055-1111 |
— | ||
| replacement | |||||
|
92055
|
92055
92055-0960 Ring-O,fuel Tap LeverRing-o,fuel tap lever; |
92055-0960 |
from US $6.43 |
||
|
92055A
|
92055A
92055-1348 RING-O,FUEL TAP PACKIRing-o,fuel tap packing; |
92055-1348 |
from US $3.96 |
||
|
92059
|
92059
92059-1258 TUBE,5X9X250Tube,5x9x250; |
92059-1258 |
US $8.32 |
||
| replacement | |||||
|
92059
|
92059
92192-0753 TUBE,5X9.4X250Tube,5x9x250; |
92192-0753 |
from US $6.06 |
||
|
92075
|
92075
92075-1787 DAMPER |
92075-1787 |
from US $3.96 |
||
|
92075A
|
92075A
92075-1910 DAMPER,FUEL TANKDamper,fuel tank; |
92075-1910 |
US $2.77 |
||
|
92077
|
92077
92077-1078 KNOBKnob,fuel tap; |
92077-1078 |
US $42.57 |
||
|
92140
|
92140
92140-1051 BALL,STAINLESS,5/32"Ball,stainless,5/32"; |
92140-1051 |
from US $3.33 |
||
|
92143
|
92143
92027-1965 COLLARCollar,l=4.5; |
92027-1965 |
from US $4.12 |
||
|
92144
|
92144
92144-1212 SPRING,FUEL TAP KNOBSpring,fuel tap knob; |
92144-1212 |
from US $3.33 |
||
|
180
|
180
180D0625 BOLT-UPSET-WS,6X25Bolt-upset-ws,6x25; |
180D0625 |
from US $1.43 |
||
| replacement | |||||
|
180
|
180
180AA0625 BOLT-UPSET-WS,6X25Bolt-upset-ws,6x25; |
180AA0625 |
from US $1.15 |
||
|
187
|
187
187B0614 BOLT-UPSET-WSP |
187B0614 |
US $1.11 |
||
| replacement | |||||
|
187
|
187
187AA0614 BOLT-UPSET-WSP |
187AA0614 |
from US $1.01 |
||
|
220
|
220
220B0610 SCREW-PAN HEAD,6X10Screw-pan-cros,6x10; |
220B0610 |
US $1.27 |
||
| replacement | |||||
|
220
|
220
220AA0610 SCREW-PAN HEAD,6X10Screw-pan-cros,6x10; |
220AA0610 |
from US $0.95 |
||
