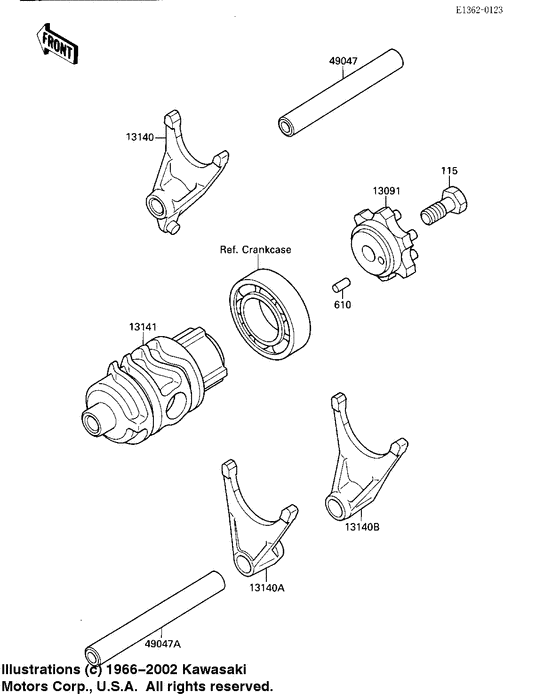

Gear change drum/shift fork Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13091
|
13091
13091-1477 HOLDER |
13091-1477 |
US $92.38 |
||
|
13140
|
13140
13140-1157 FORK-SHIFT,5TH&TOPFork-shift,5th⊤ |
13140-1157 |
US $72.36 |
||
|
13140A
|
13140A
13140-1158 FORK-SHIFT,2ND&3RDFork-shift,2nd&3rd; |
13140-1158 |
US $53.41 |
||
|
13140B
|
13140B
13140-1159 FORK-SHIFT,LOW&4THFork-shift,low&4th; |
13140-1159 |
US $61.22 |
||
|
13141
|
13141
13141-1141 DRUM-CHANGE |
13141-1141 |
US $89.55 |
||
|
49047
|
49047
49047-1064 ROD-SHIFT,L=81Rod-shift,5.9x10x81; |
49047-1064 |
from US $12.36 |
||
|
49047A
|
49047A
49047-1072 ROD-SHIFT,10X92.5Rod-shift,10x92.5; |
49047-1072 |
US $13.14 |
||
|
115
|
115
115G0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115G0818 |
US $1.58 |
||
| replacement | |||||
|
115
|
115
115BA0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115BA0818 |
from US $0.94 |
||
|
610
|
610
610A0408 PIN DOWEL 4X8Roller,4x8; |
610A0408 |
from US $1.07 |
||
