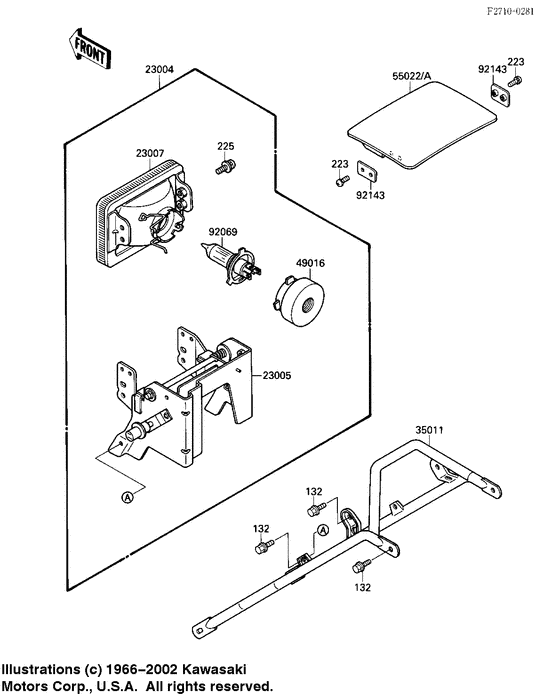

Headlight Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23004
|
23004
23004-1220
LAMP-HEAD
|
23004-1220 |
— | ||
|
23005
|
23005
23005-1084
BODY-COMP-HEAD LAMP
|
23005-1084 |
— | ||
|
23007
|
23007
23007-1173
Lens-comp,head lamp
Lens-comp,head lamp; |
23007-1173 |
— | ||
|
35011
|
35011
35011-1341 STAY,HEAD LAMPStay,head lamp; |
35011-1341 |
US $33.46 |
||
|
49016
|
49016
49016-1131 COVER-SEAL,HEAD LAMPCover-seal,head lamp socket; |
49016-1131 |
US $9.68 |
||
|
55022
|
55022
55022-1058-6F
COVER HEAD LAMP WHITE
Cover-head lamp,p.white; |
55022-1058-6F |
— | ||
|
55022A
|
55022A
55022-1058-6W
COVER-HEAD LAMP,GREEN
Cover-head lamp,l.green; |
55022-1058-6W |
— | ||
|
92069
|
92069
92069-1002
BULB,12V 60/55W,H4
Bulb,12v 60/55w,h4; |
92069-1002 |
— | ||
| replacement | |||||
|
92069
|
92069
92069-0050 BULB,12V 60/55W,H412V 60/55W,H4 Bulb,12v 60/55w,h4; |
92069-0050 |
from US $18.68 |
||
|
92143
|
92143
92143-1084
COLLAR
|
92143-1084 |
— | ||
|
132
|
132
132G0610
BOLT-FLANGED-SMALL,6X
|
132G0610 |
— | ||
| replacement | |||||
|
132
|
132
132BA0610 BOLT-FLANGED-SMALL,6X |
132BA0610 |
from US $0.79 |
||
|
223
|
223
223B0512
SCREW-PAN-WS-CROS,5X1
|
223B0512 |
— | ||
| replacement | |||||
|
223
|
223
223AA0512 SCREW-PAN-WS-CROS,5X1 |
223AA0512 |
from US $1.11 |
||
|
225
|
225
225B0610 SCREW-PAN-WSP-CROS,6XScrew-pan-wsp-cros,6x10; |
225B0610 |
US $1.85 |
||
