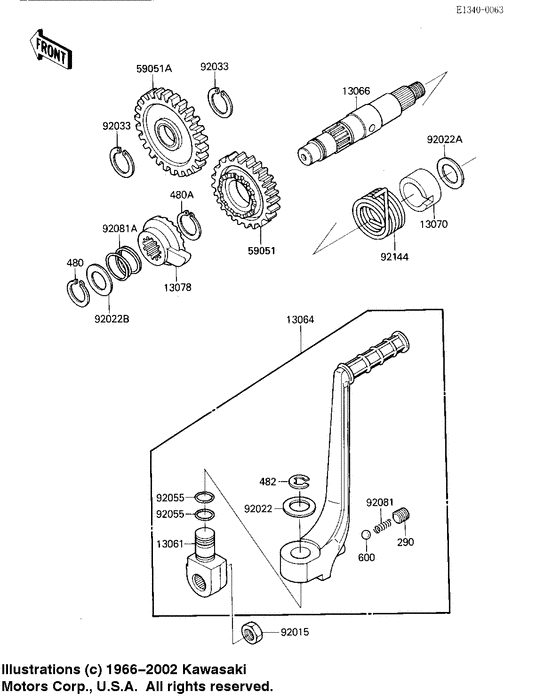

Kickstarter mechanism Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13061
|
13061
13061-1055
BOSS,KICK PEDAL
Boss,kick pedal; |
13061-1055 |
— | ||
|
13064
|
13064
13064-1132
LEVER-ASSY-KICK,PEDAL
Lever-assy-kick,pedal; |
13064-1132 |
— | ||
|
13066
|
13066
13066-1065 SHAFT-KICK |
13066-1065 |
US $67.59 |
||
|
13070
|
13070
13070-1063 GUIDE,KICK SPRINGGuide,kick spring; |
13070-1063 |
from US $16.16 |
||
|
13078
|
13078
13078-1007
RATCHET
|
13078-1007 |
— | ||
| replacement | |||||
|
13078
|
13078
13078-1061 RATCHET |
13078-1061 |
US $72.71 |
||
|
59051
|
59051
59051-1177 GEAR-SPURGear,kickstarter,26t; |
59051-1177 |
US $92.38 |
||
| replacement | |||||
|
59051
|
59051
59051-1230
GEAR-SPUR
Gear,kickstarter,26t; |
59051-1230 |
— | ||
|
59051A
|
59051A
59051-1178
Gear,kickstarter idle
Gear,kickstarter idle,26t; |
59051-1178 |
— | ||
| replacement | |||||
|
59051A
|
59051A
59051-1271
GEAR,KICKSTARTER IDLE
Gear,kickstarter idle,26t; |
59051-1271 |
— | ||
|
92015
|
92015
92015-1001 NUT,12MMNut,12mm; |
92015-1001 |
from US $3.80 |
||
|
92022
|
92022
92022-1019 WASHER,PLAINWasher,15.2x20x1; |
92022-1019 |
from US $3.48 |
||
|
92022A
|
92022A
92022-271 WASHER,PLAINWasher,18.3x22x0.5; |
92022-271 |
from US $3.17 |
||
|
92022B
|
92022B
92022-315 WASHER,PLAINWasher,16.8x22x0.5; |
92022-315 |
from US $3.48 |
||
|
92033
|
92033
92033-029 CIRCLIP,18MMRing-snap,18mm; |
92033-029 |
from US $6.34 |
||
|
92055
|
92055
92055-072 O RING,11.5MM |
92055-072 |
US $4.14 |
||
|
92081
|
92081
92081-020 SPRING, KICK PEDALSpring,kick pedal; |
92081-020 |
from US $2.85 |
||
|
92081A
|
92081A
92081-122 SPRING,RATCHETSpring,ratchet; |
92081-122 |
from US $5.70 |
||
|
92144
|
92144
92144-1076
SPRING,KICKSTARTER
Spring,kickstarter; |
92144-1076 |
— | ||
| replacement | |||||
|
92144
|
92144
92145-1517 SPRING,KICKSTARTERSpring,kickstarter; |
92145-1517 |
from US $15.21 |
||
|
290
|
290
290Q0816 SCREW, 8X16Screw-set-socket,8x16; |
290Q0816 |
US $2.88 |
||
|
480
|
480
480J1600 CIRCLIP 16MMCirclip-type-c,16mm; |
480J1600 |
from US $1.43 |
||
|
480A
|
480A
480J1800 CIRCLIP 18MMCirclip-type-c,18mm; |
480J1800 |
from US $1.11 |
||
|
482
|
482
482L0100 RING, SNAPCirclip-type-e,10mm; |
482L0100 |
from US $1.11 |
||
| replacement | |||||
|
482
|
482
482EA0100 CIRCLIP-TYPE-E,10MMCirclip-type-e,10mm; |
482EA0100 |
from US $0.72 |
||
|
600
|
600
600A0800 BALL,6.35MMBall-steel,1/4"; |
600A0800 |
from US $0.91 |
||
