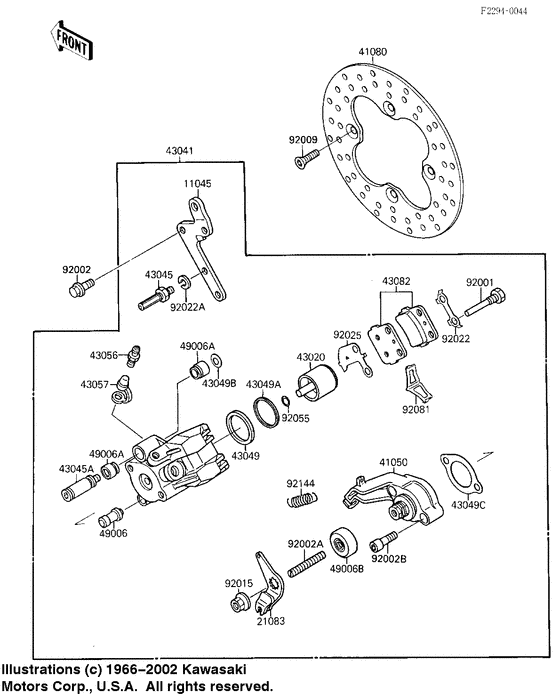

Rear brake Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11045
|
11045
11045-1105 BRACKET |
11045-1105 |
from US $42.15 |
||
|
21083
|
21083
21083-1061
ARM
|
21083-1061 |
— | ||
|
41050
|
41050
41050-1072 CAM-BRAKECam-brake,rr caliper; |
41050-1072 |
from US $92.07 |
||
|
41080
|
41080
41080-1185 DISC,RRDisc,rr; |
41080-1185 |
US $350.33 |
||
|
43020
|
43020
43020-1064 PISTON-COMP-BRAKE |
43020-1064 |
US $48.78 |
||
| replacement | |||||
|
43020
|
43020
43020-1102 PISTON-COMP-BRAKE |
43020-1102 |
from US $35.93 |
||
|
43041
|
43041
43041-1220 Caliper-assy,rrCaliper-assy,rr; |
43041-1220 |
US $601.09 |
||
| replacement | |||||
|
43041
|
43041
43041-1573 CALIPER-ASSY,RRCaliper-assy,rr; |
43041-1573 |
US $695.84 |
||
|
43045
|
43045
43045-1010 SHAFT-CALIPER |
43045-1010 |
from US $14.10 |
||
|
43045A
|
43045A
43045-1051 SHAFT-CALIPER |
43045-1051 |
from US $13.68 |
||
|
43049
|
43049
43049-1023 PACKING,PISTON SEALPacking,piston seal; |
43049-1023 |
from US $9.98 |
||
|
43049A
|
43049A
43049-1024 PACKING,PISTON SEALPacking,piston seal; |
43049-1024 |
from US $6.02 |
||
|
43049B
|
43049B
43049-1025 PACKING |
43049-1025 |
from US $3.48 |
||
|
43049C
|
43049C
43049-1053 PACKING |
43049-1053 |
US $2.32 |
||
| replacement | |||||
|
43049C
|
43049C
43049-1073 PACKING |
43049-1073 |
from US $2.17 |
||
|
43056
|
43056
43056-1052 BREATHER,BRAKEBreather-brake; |
43056-1052 |
US $12.47 |
||
| replacement | |||||
|
43056
|
43056
43056-1056 BREATHER,BRAKEBreather-brake; |
43056-1056 |
from US $10.14 |
||
|
43057
|
43057
43057-1001 CAP-BREATHER |
43057-1001 |
from US $3.48 |
||
|
43082
|
43082
43082-1066 PAD-ASSY-BRAKE |
43082-1066 |
from US $51.56 |
||
|
49006
|
49006
49006-1088 BOOT,CALIPERBoot,caliper; |
49006-1088 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1089 BOOT,CALIPERBoot,caliper; |
49006-1089 |
from US $5.54 |
||
|
49006B
|
49006B
49006-1193 BOOT,CALIPERBoot,caliper; |
49006-1193 |
from US $5.76 |
||
|
92001
|
92001
92001-1723 BOLT,PAD HOLDERBolt,pad holder; |
92001-1723 |
from US $5.54 |
||
|
92002
|
92002
92002-1737 BOLT,FLANGED,8X13Bolt,flanged,8x13; |
92002-1737 |
from US $3.11 |
||
|
92002A
|
92002A
92002-1771
BOLT,ADJUST
Bolt,adjust; |
92002-1771 |
— | ||
|
92002B
|
92002B
92002-1772 BOLT |
92002-1772 |
US $6.35 |
||
|
92009
|
92009
92009-1408
SCREW,8X18
Screw,8x18; |
92009-1408 |
— | ||
|
92015
|
92015
92015-1600 NUT |
92015-1600 |
from US $3.11 |
||
|
92022
|
92022
92022-1372 WASHER,LOCKWasher,lock; |
92022-1372 |
from US $3.48 |
||
|
92022A
|
92022A
92022-1373 WASHERWasher,wave; |
92022-1373 |
from US $2.53 |
||
|
92025
|
92025
92025-1344 SHIMShim,pad; |
92025-1344 |
from US $8.87 |
||
|
92055
|
92055
92055-1351 RING-O |
92055-1351 |
from US $3.57 |
||
|
92081
|
92081
92081-1502 SPRING,PADSpring,pad; |
92081-1502 |
from US $5.54 |
||
|
92144
|
92144
92144-1037 SPRING |
92144-1037 |
from US $6.68 |
||
