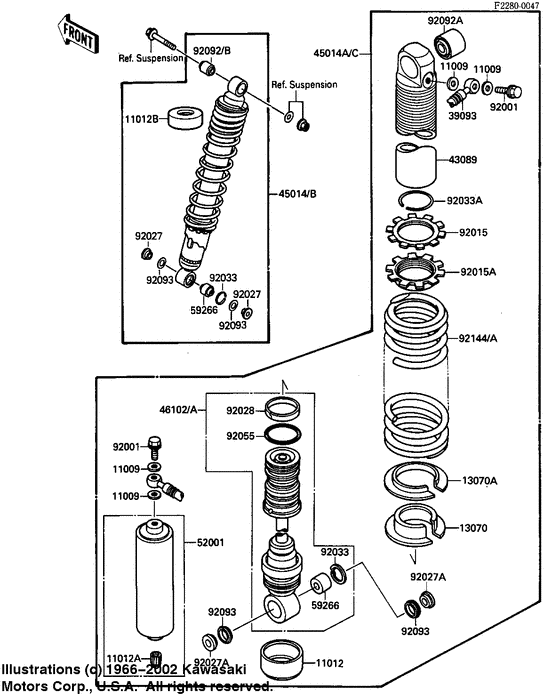

Shock absorber Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
11012
|
11012
11012-1278
CAP,REARSHOCK
Cap,rearshock; |
11012-1278 |
— | ||
|
11012A
|
11012A
11012-1391 CAP,VALVE AIRCap,valve air; |
11012-1391 |
from US $4.12 |
||
|
11012B
|
11012B
11012-1636 CAP,SHOCKABSORBERCap,shockabsorber; |
11012-1636 |
US $5.20 |
||
|
13070
|
13070
13070-1150 GUIDEGuide,spring; |
13070-1150 |
US $49.99 |
||
|
13070A
|
13070A
13070-1161 GUIDE,SPRINGGuide,spring; |
13070-1161 |
US $19.64 |
||
|
39093
|
39093
39093-1117 PIPE-COMP-SUSP |
39093-1117 |
US $139.82 |
||
|
43089
|
43089
43089-1120 CYLINDER-SHOCKABSORBE |
43089-1120 |
US $380.86 |
||
|
45014B
|
45014B
45014-1394
SHOCK ABSORBER,FR
Shockabsorber,fr; |
45014-1394 |
— | ||
|
45014C
|
45014C
45014-1395 Shock Absorber,RRShockabsorber,rr; |
45014-1395 |
US $1,090.57 |
||
|
46102A
|
46102A
46102-1240 ROD,SHOCKABSORBERRod,shockabsorber; |
46102-1240 |
US $696.37 |
||
|
52001
|
52001
52001-1073 TANK-OIL,SHOCKABSORBETank-oil,shockabsorber; |
52001-1073 |
US $180.77 |
||
|
59266
|
59266
59266-1053 JOINT-BALL,REAR SHOCK |
59266-1053 |
from US $94.55 |
||
|
92001
|
92001
92001-1752 BOLT,PIPE-COMP-SUSPBolt,banjo; |
92001-1752 |
US $10.64 |
||
|
92015
|
92015
92015-1551 NUT,SPRING ADJUST LOCNut,spring adjust lock; |
92015-1551 |
US $38.39 |
||
|
92015A
|
92015A
92015-1552 NUTNut,spring guide; |
92015-1552 |
US $45.32 |
||
|
92027
|
92027
92027-1862 COLLAR,REAR SHOCK |
92027-1862 |
from US $13.94 |
||
|
92027A
|
92027A
92027-1976 COLLAR,SHOCK ABSORBERCollar,shockabsorber; |
92027-1976 |
US $12.31 |
||
| replacement | |||||
|
92027A
|
92027A
92143-1116 COLLAR,SHOCK ABSORBERCollar,shockabsorber; |
92143-1116 |
US $12.31 |
||
|
92028
|
92028
92028-1411
BUSHING
|
92028-1411 |
— | ||
|
92033
|
92033
92033-1090 RING-SNAP,REARSHOCK |
92033-1090 |
from US $3.64 |
||
|
92033A
|
92033A
92033-1206 RING-SNAP |
92033-1206 |
US $2.66 |
||
|
92055
|
92055
92055-1181
RING-O,ROD
Ring-o,rod; |
92055-1181 |
— | ||
|
92092A
|
92092A
92092-1058 BUSHING-RUBBER |
92092-1058 |
from US $20.43 |
||
|
92092B
|
92092B
92092-1066 BUSHING-RUBBER,SHOCKABushing-rubber,shockabsorber; |
92092-1066 |
US $16.25 |
||
|
92093
|
92093
92093-1183 SEAL,REAR SHOCK |
92093-1183 |
from US $11.25 |
||
|
92144A
|
92144A
92144-1263 SPRING,SHOCKABSORBER,Spring,shockabsorber,k=4.8; |
92144-1263 |
US $233.03 |
||
