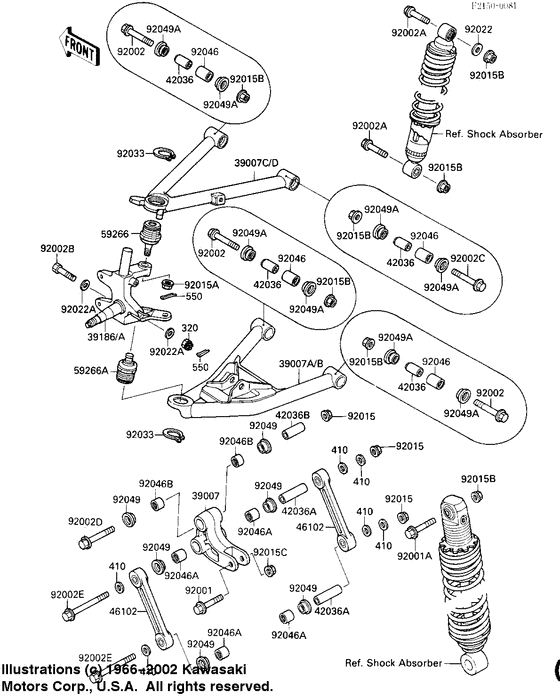

Suspension (Kxf250-a2) Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39007
|
39007
39007-1152 ARM-SUSP,UNI TRAKArm-susp,uni trak; |
39007-1152 |
US $137.74 |
||
|
39007A
|
39007A
39007-1153 ARM-SUSP,LWR,LHArm-susp,lwr,lh; |
39007-1153 |
US $96.25 |
||
|
39007B
|
39007B
39007-1154 ARM-SUSP,LWR,RHArm-susp,lwr,rh; |
39007-1154 |
US $92.54 |
||
|
39007C
|
39007C
39007-1163 ARM-SUSP,UPP,LHArm-susp,upp,lh; |
39007-1163 |
US $92.65 |
||
|
39007D
|
39007D
39007-1164
ARM,SUSP,UPP,RH
Arm-susp,upp,rh; |
39007-1164 |
— | ||
|
39186
|
39186
39186-1087 KNUCKLE,LHKnuckle,lh; |
39186-1087 |
US $188.91 |
||
|
39186A
|
39186A
39186-1088 KNUCKLE,RHKnuckle,rh; |
39186-1088 |
US $188.91 |
||
|
42036
|
42036
42036-1183 SLEEVE,10X17X40Sleeve,10x17x40; |
42036-1183 |
from US $11.82 |
||
|
42036A
|
42036A
42036-1223 SLEEVE,L=65Sleeve,l=65; |
42036-1223 |
US $23 |
||
| replacement | |||||
|
42036A
|
42036A
42036-1174 SLEEVE,L=65Sleeve,l=65; |
42036-1174 |
US $23 |
||
|
42036B
|
42036B
42036-1224 SLEEVE,L=49Sleeve,l=49; |
42036-1224 |
US $21.08 |
||
| replacement | |||||
|
42036B
|
42036B
42036-1175 SLEEVE,L=49Sleeve,l=49; |
42036-1175 |
US $21.08 |
||
|
46102
|
46102
46102-1233 ROD,SUSPENSIONRod,suspension; |
46102-1233 |
US $16.27 |
||
|
59266
|
59266
59266-1075
JOINT-BALL
|
59266-1075 |
— | ||
|
59266A
|
59266A
59266-1077 JOINT-BALL |
59266-1077 |
US $91.06 |
||
| replacement | |||||
|
59266A
|
59266A
59266-1098 JOINT-BALL |
59266-1098 |
from US $66.41 |
||
|
92001
|
92001
92001-1182
BOLT,10X45
Bolt,flanged,10x45; |
92001-1182 |
— | ||
|
92001A
|
92001A
92001-1913 BOLT,FLANGED,10X49Bolt,10x50; |
92001-1913 |
US $5.78 |
||
| replacement | |||||
|
92001A
|
92001A
92150-1170 BOLT,FLANGED,10X49Bolt,10x50; |
92150-1170 |
from US $4.44 |
||
|
92002
|
92002
92002-1738 BOLT,FLANGED,10X61Bolt,flanged,10x61; |
92002-1738 |
US $4.05 |
||
|
92002A
|
92002A
92002-1740 BOLT,FLANGED,10X46Bolt,flanged,10x46; |
92002-1740 |
from US $4.05 |
||
|
92002B
|
92002B
92002-1741 BOLT,10X40Bolt,10x41; |
92002-1741 |
US $7.94 |
||
|
92002C
|
92002C
92002-1764 BOLT,FLANGED,10X80Bolt,flanged,10x80; |
92002-1764 |
from US $4.51 |
||
|
92002D
|
92002D
92002-1979 BOLT,FLANGED,14X81.5Bolt,flanged,14x81.5; |
92002-1979 |
US $9.50 |
||
|
92002E
|
92002E
92002-1980 BOLT,FLANGED,14X107.5Bolt,flanged,14x107.5; |
92002-1980 |
US $13.52 |
||
|
92015
|
92015
92015-1411 NUT,14MMNut,14mm; |
92015-1411 |
US $7.92 |
||
|
92015A
|
92015A
92015-1502 NUTNut,flanged,10mm; |
92015-1502 |
US $10.19 |
||
| replacement | |||||
|
92015A
|
92015A
92210-1080 NUTNut,flanged,10mm; |
92210-1080 |
from US $6.49 |
||
|
92015B
|
92015B
92015-1597 NUT,LOCK,10MMNut,lock,10mm; |
92015-1597 |
from US $7.04 |
||
|
92015C
|
92015C
92015-1663
Nut,lock,flanged,10mm
Nut,lock,flanged,10mm; |
92015-1663 |
— | ||
| replacement | |||||
|
92015C
|
92015C
92210-1204 NUT,LOCK,10MMNut,lock,flanged,10mm; |
92210-1204 |
from US $5.59 |
||
|
92022
|
92022
92022-176 WASHER-PLN,10X22X3.2Washer,10x22x3.2; |
92022-176 |
from US $3.33 |
||
|
92022A
|
92022A
92022-1829 WASHER,10.2X16X1Washer,10.2x16x1; |
92022-1829 |
from US $2.69 |
||
|
92033
|
92033
92033-1218 RING-SNAP,30MMRing-snap,30mm; |
92033-1218 |
from US $4.05 |
||
|
92046
|
92046
92046-1046 BEARING-NEEDLE |
92046-1046 |
from US $24.40 |
||
|
92046A
|
92046A
92046-1150 BEARING-NEEDLE,F-2020Bearing-needle,f-2020; |
92046-1150 |
US $14.69 |
||
|
92046B
|
92046B
92046-1151 BEARING-NEEDLE,F-2016Bearing-needle,f-2016; |
92046-1151 |
from US $16.32 |
||
|
92049
|
92049
92049-1154 SEAL-OIL,MHA20265.2FSeal-oil,mha20265.2f; |
92049-1154 |
US $6.82 |
||
|
92049A
|
92049A
92049-1223 SEAL-OIL,MHA17245.7FSeal-oil,mha17245.7f; |
92049-1223 |
from US $6.91 |
||
|
320
|
320
320H1000 NUT-CASTLE |
320H1000 |
US $6.80 |
||
| replacement | |||||
|
320
|
320
320BA1000 NUT-CASTLE |
320BA1000 |
from US $1.24 |
||
|
410
|
410
410B1400 WASHER PLAIN 14MMWasher-plain-small,14mm; |
410B1400 |
from US $1.27 |
||
| replacement | |||||
|
410
|
410
410AA1400 WASHER-PLAIN-SMALL,14Washer-plain-small,14mm; |
410AA1400 |
from US $0.95 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin-cotter,2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin-cotter,2.0x15; |
550AA2015 |
from US $0.63 |
||
