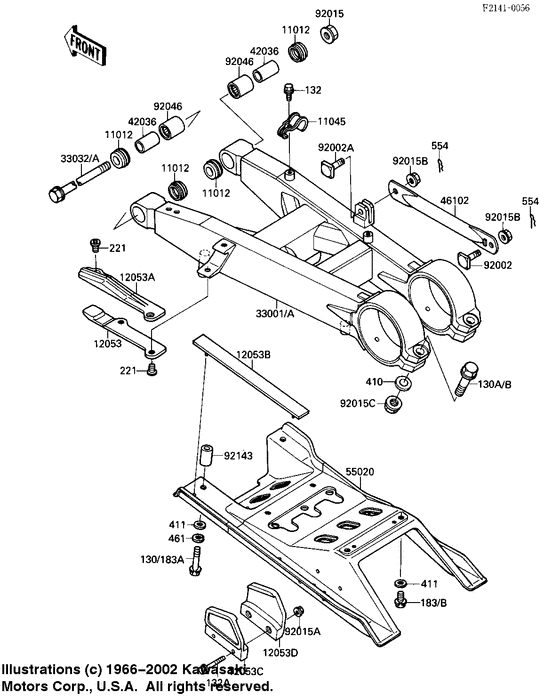

Swingarm Diagram Kawasaki KXF250 Tecate 4
- Model code
- KXF250-A2
- Engine Capacity
- 250
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1259 CAP,SWING ARMCap,swing arm; |
11012-1259 |
from US $15.52 |
||
|
11045
|
11045
11045-1447
BRACKET
|
11045-1447 |
— | ||
|
12053
|
12053
12053-1208
GUIDE-CHAIN,FR,LWR
Guide-chain,fr,lwr; |
12053-1208 |
— | ||
|
12053A
|
12053A
12053-1213
GUIDE-CHAIN,FR,UPP
Guide-chain,fr,upp; |
12053-1213 |
— | ||
|
12053B
|
12053B
12053-1218
GUIDE-CHAIN
|
12053-1218 |
— | ||
|
12053C
|
12053C
12053-1230
GUIDE-CHAIN
Guide-chain,lh; |
12053-1230 |
— | ||
|
12053D
|
12053D
12053-1231
GUIDE-CHAIN
Guide-chain,rh; |
12053-1231 |
— | ||
|
33001A
|
33001A
33001-1310 SWING ARM-COMP |
33001-1310 |
US $342.92 |
||
|
33032A
|
33032A
33032-1140 SHAFT-SWING ARM |
33032-1140 |
US $52.92 |
||
|
42036
|
42036
42036-1064 SLEEVE,SWING ARMSleeve,swing arm; |
42036-1064 |
from US $15.05 |
||
|
46102
|
46102
46102-1179 ROD,TORQUERod,torque; |
46102-1179 |
US $16.65 |
||
|
55020
|
55020
55020-1294
GUARD
|
55020-1294 |
— | ||
|
92002
|
92002
92002-1733 BOLT,10X28Bolt,10x28; |
92002-1733 |
from US $5.28 |
||
|
92002A
|
92002A
92002-1915
BOLT,BRAKE ROD,10X30
Bolt,brake rod,10x30; |
92002-1915 |
— | ||
|
92015
|
92015
92015-1032 NUT,14MMNut,flanged,14mm; |
92015-1032 |
US $8.41 |
||
| replacement | |||||
|
92015
|
92015
92015-1407 NUT,14MMNut,flanged,14mm; |
92015-1407 |
from US $6.34 |
||
|
92015A
|
92015A
92015-1193
NUT,FLANGED,6MM
Nut,flanged,6mm; |
92015-1193 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92015-1367 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1367 |
from US $3.01 |
||
|
92015B
|
92015B
92015-1597 NUT,LOCK,10MMNut,lock,10mm; |
92015-1597 |
from US $7.04 |
||
|
92015C
|
92015C
92015-1617 NUT,LOCK,12MMNut,lock,12mm; |
92015-1617 |
from US $6.02 |
||
|
92046
|
92046
92046-1128 BEARING-NEEDLE,TA2030Bearing-needle,ta2030z; |
92046-1128 |
from US $21.07 |
||
|
92143
|
92143
92143-1155 COLLARCollar,l=26; |
92143-1155 |
US $16.27 |
||
|
130
|
130
130G0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130G0850 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130BA0850 BOLT-FLANGED,8X50Bolt-flanged,8x50; |
130BA0850 |
from US $1.40 |
||
|
130B
|
130B
130P1260 BOLT-FLANGED |
130P1260 |
US $6.93 |
||
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
|
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
132A
|
132A
132G0645 BOLT-FLANGED-SMALL |
132G0645 |
from US $1.74 |
||
| replacement | |||||
|
132A
|
132A
132BA0645 BOLT-FLANGED-SMALL |
132BA0645 |
from US $1.27 |
||
|
183B
|
183B
183G0822 BOLT-UPSET-WS-SMALL |
183G0822 |
US $4.12 |
||
| replacement | |||||
|
183B
|
183B
183BA0822 BOLT-UPSET-WS-SMALL |
183BA0822 |
from US $1.40 |
||
|
221
|
221
221B0610
SCREW CNTSNK HD 6X10
Screw-csk-cros,6x10; |
221B0610 |
— | ||
| replacement | |||||
|
221
|
221
221AA0610 SCREW-CNTSNK HD,6X10Screw-csk-cros,6x10; |
221AA0610 |
from US $1.25 |
||
|
410
|
410
410B1200 WASHER PLAIN 12MMWasher-plain-small,12mm; |
410B1200 |
from US $0.95 |
||
| replacement | |||||
|
410
|
410
410AA1200 WASHER-PLAIN-SMALL,12Washer-plain-small,12mm; |
410AA1200 |
from US $0.95 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
Washer-plain,8mm; |
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAINWasher-plain,8mm; |
411AA0800 |
from US $0.72 |
||
|
461
|
461
461F0800
WASHER-SPRING,8MM
Washer-spring,8mm; |
461F0800 |
— | ||
| replacement | |||||
|
461
|
461
461DA0800 WASHER-SPRING,8MMWasher-spring,8mm; |
461DA0800 |
from US $0.48 |
||
|
554
|
554
554A1000
PIN-SNAP,10MM
Pin-snap,10mm; |
554A1000 |
— | ||
| replacement | |||||
|
554
|
554
554DA1000 PIN-SNAP,10MMPin-snap,10mm; |
554DA1000 |
from US $0.91 |
||
