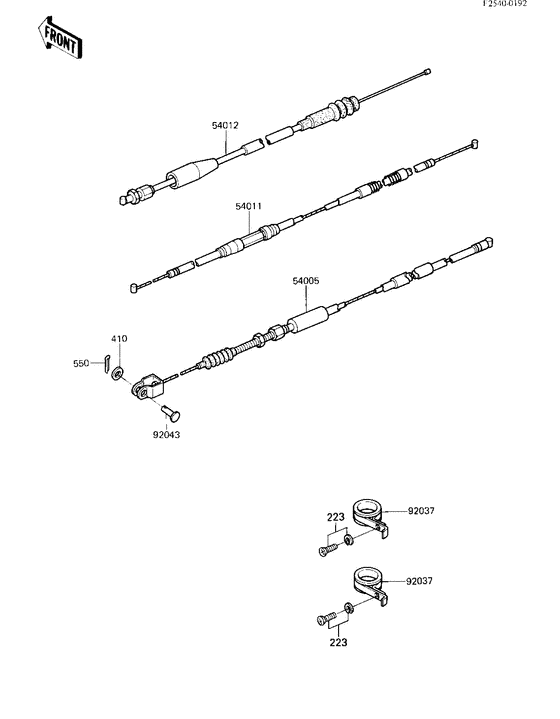

Cables ('84 a1) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223B0614 SCREW,PAN HEAD,6X14 |
223B0614 |
from US $1.11 |
||
| replacement | |||||
|
223
|
223
223AA0614 SCREW,PAN HEAD,6X14 |
223AA0614 |
from US $1.24 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
54005
|
54005
54005-4013 CABLE-BRAKE |
54005-4013 |
US $62.89 |
||
|
54011
|
54011
54011-1112
CABLE-CLUTCH
|
54011-1112 |
— | ||
|
54012
|
54012
54012-4006
CABLE-THROTTLE
|
54012-4006 |
— | ||
|
92037
|
92037
92037-4013 CLAMP |
92037-4013 |
US $12.49 |
||
|
92043
|
92043
92043-064
PIN-BRAKE ROD FITTING
Pin-brake rod fitting; |
92043-064 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-125 PINPin-brake rod fitting; |
92043-125 |
from US $3.96 |
||
