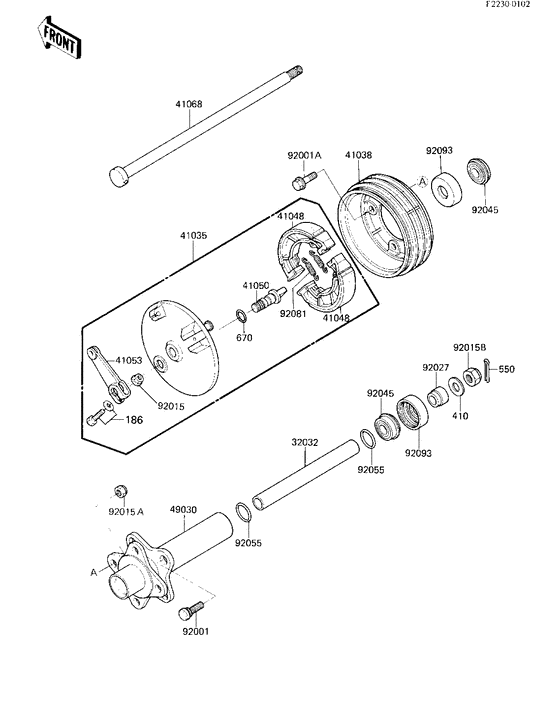

Front hub/brake ('84 a1) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
186
|
186
186G0635 BOLT-UPSET-WP |
186G0635 |
US $1.96 |
||
|
410
|
410
410B1600 WASHER PLAIN 16MM |
410B1600 |
US $7.20 |
||
|
550
|
550
550D3230 PIN,COTTERPin,cotter; |
550D3230 |
US $1.67 |
||
| replacement | |||||
|
550
|
550
550AA3230 PIN,COTTERPin,cotter; |
550AA3230 |
from US $0.94 |
||
|
670
|
670
670B2015 O RING,15MM"o" ring,15mm; |
670B2015 |
from US $1.77 |
||
|
32032
|
32032
32032-4118 COLLAR |
32032-4118 |
US $9.23 |
||
|
41035
|
41035
41035-4011 PANEL-ASSY-BRAKE,FRPanel-assy-brake,fr; |
41035-4011 |
US $292.16 |
||
|
41038
|
41038
41038-4016 DRUM,FRDrum,fr; |
41038-4016 |
US $281.57 |
||
|
41048
|
41048
41048-1068 SHOE-BRAKE |
41048-1068 |
from US $50.40 |
||
|
41050
|
41050
41050-1002 CAM SHAFT,BRAKECam shaft,brake; |
41050-1002 |
US $39.10 |
||
|
41053
|
41053
41053-4003 LEVER-BRAKE CAM |
41053-4003 |
US $37.40 |
||
|
41068
|
41068
41068-4019 AXLE,17X405Axle,17x405; |
41068-4019 |
US $150.25 |
||
|
49030
|
49030
49030-4010 HUB,FRONTHub,front; |
49030-4010 |
US $85.03 |
||
|
92001
|
92001
92001-4006 BOLT,LUGBolt,lug; |
92001-4006 |
US $2.09 |
||
|
92001A
|
92001A
92001-4034 BOLT,FLANGED,10X22Bolt,flanged,10x22; |
92001-4034 |
US $3.35 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1429 NUT,LOCK,10MMNut,10mm; |
92015-1429 |
from US $4.12 |
||
|
92015B
|
92015B
92019-012 NUT-SELF LOCKING |
92019-012 |
from US $10.43 |
||
|
92027
|
92027
92027-4032 COLLAR,FRONT AXLE,L=2Collar,front axle,l=2; |
92027-4032 |
US $14.71 |
||
|
92045
|
92045
92045-4006 BEARING-BALLBearing-ball,#6203 zn; |
92045-4006 |
US $24.01 |
||
| replacement | |||||
|
92045
|
92045
92045-1353 BEARING-BALLBearing-ball,#6203 zn; |
92045-1353 |
US $24.01 |
||
|
92055
|
92055
92055-4001 0 RINGRing-o; |
92055-4001 |
US $1.28 |
||
|
92081
|
92081
42020-004 SPRING-BRAKE SHOESpring-brake shoe; |
42020-004 |
from US $6.18 |
||
|
92093
|
92093
92093-4007 SEAL |
92093-4007 |
US $7.83 |
||
