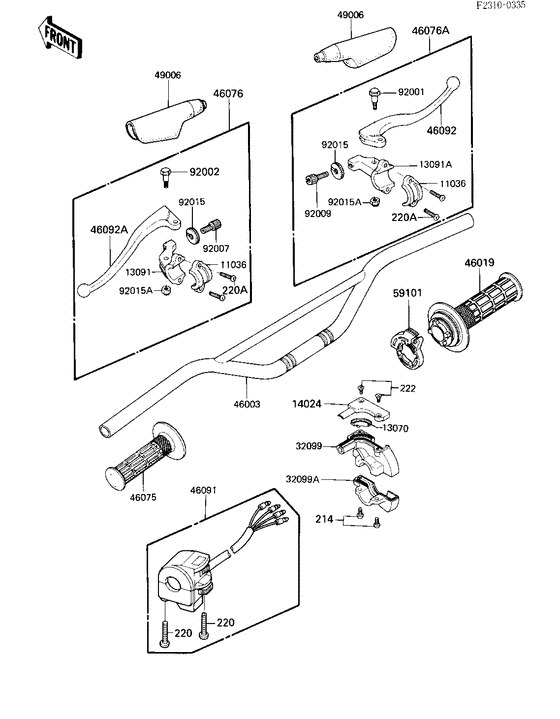

Handlebar ('84 a1) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
214
|
214
220C0518 SCREW-PAN-CROS,5X18Screw-pan-cros,5x18; |
220C0518 |
from US $1.11 |
||
| replacement | |||||
|
214
|
214
220AB0518 SCREW-PAN-CROS,5X18Screw-pan-cros,5x18; |
220AB0518 |
from US $0.79 |
||
|
220
|
220
220B0535 SCREW-PAN-CROS |
220B0535 |
US $1.11 |
||
| replacement | |||||
|
220
|
220
220AA0535 SCREW-PAN-CROS |
220AA0535 |
from US $0.95 |
||
|
220A
|
220A
220C0514
SCREW-PAN-CROSS
Screw-pan-cross,5x14; |
220C0514 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0514 SCREW-PAN-CROSSScrew-pan-cross,5x14; |
220AB0514 |
from US $1.25 |
||
|
222
|
222
222E0412 SCREW OVL CNTSNK 4X12Screw ovl cntsnk 4x12; |
222E0412 |
from US $0.95 |
||
|
11036
|
11036
11036-1297
BRACKET,LEVER HOLDER
|
11036-1297 |
— | ||
| replacements | |||||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
|
11056-0150 |
— | ||
|
11036
|
11036
11056-0036 BRACKET,LEVER HOLDER |
11056-0036 |
from US $9.33 |
||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDER |
11058-2777 |
US $17.31 |
||
|
13070
|
13070
13070-1074 GUIDE,THROTTLEGuide,throttle; |
13070-1074 |
from US $5.07 |
||
|
13091
|
13091
13091-1131 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13091-1131 |
from US $30.52 |
||
|
13091A
|
13091A
13091-1135 HOLDER,BRAKE LEVERHolder,brake lever; |
13091-1135 |
from US $32.33 |
||
| replacement | |||||
|
13091A
|
13091A
13280-0354 HOLDER,BRAKE LEVERHolder,brake lever; |
13280-0354 |
from US $13.38 |
||
|
14024
|
14024
14025-1646 COVER,THROTTLE CASE UCover,throttle case u; |
14025-1646 |
from US $7.13 |
||
|
32099
|
32099
32099-1036 CASE,THROTTLE UPPCase,throttle upp; |
32099-1036 |
from US $24.98 |
||
|
32099A
|
32099A
32099-1044 CASE,THROTTLE,LWRCase,throttle lwr; |
32099-1044 |
from US $18.07 |
||
| replacement | |||||
|
32099A
|
32099A
32099-0038 CASE,THROTTLE,LWRCase,throttle lwr; |
32099-0038 |
from US $11.09 |
||
|
46003
|
46003
46003-4009
HANDLE
|
46003-4009 |
— | ||
|
46019
|
46019
46019-1054 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-1054 |
from US $26.33 |
||
|
46075
|
46075
46075-1024 GRIP,LHGrip,lh; |
46075-1024 |
from US $17.58 |
||
|
46076
|
46076
46076-1118
LEVER-ASSY-GRIP
|
46076-1118 |
— | ||
|
46076A
|
46076A
46076-1120 LEVER-ASSY-GRIP |
46076-1120 |
US $52.63 |
||
|
46091
|
46091
46091-1392 HOUSING-ASSY-CONTROL,Housing-assy-control,; |
46091-1392 |
US $128.74 |
||
|
46092
|
46092
46092-1109
LEVER-GRIP,BRAKE
Lever-grip,brake; |
46092-1109 |
— | ||
|
46092A
|
46092A
46092-1110 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-1110 |
US $28.24 |
||
| replacement | |||||
|
46092A
|
46092A
46092-0045 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-0045 |
from US $21.64 |
||
|
49006
|
49006
49006-1017 BOOTS,LEVER HOLDERBoots,lever holder; |
49006-1017 |
from US $16.47 |
||
|
59101
|
59101
59101-1110 REEL,THROTTLEReel,throttle; |
59101-1110 |
from US $8.71 |
||
|
92001
|
92001
92001-1757 BOLT,LEVER SETBolt,lever set; |
92001-1757 |
US $4.25 |
||
|
92002
|
92002
92002-1150 BOLT,LEVER SETBolt,lever set; |
92002-1150 |
from US $4.44 |
||
|
92007
|
92007
46055010 SCREW,CABLE ADJUSTScrew,cable adjust; |
46055010 |
from US $17.88 |
||
|
92009
|
92009
46055009 SCREW,CABLE ADJUSTScrew,cable adjust; |
46055009 |
from US $12.99 |
||
|
92015
|
92015
46056006 NUT,CABLE ADJUST LOCKNut,cable adjust lock; |
46056006 |
from US $6.02 |
||
|
92015A
|
92015A
92019-008 NUT |
92019-008 |
from US $2.53 |
||
