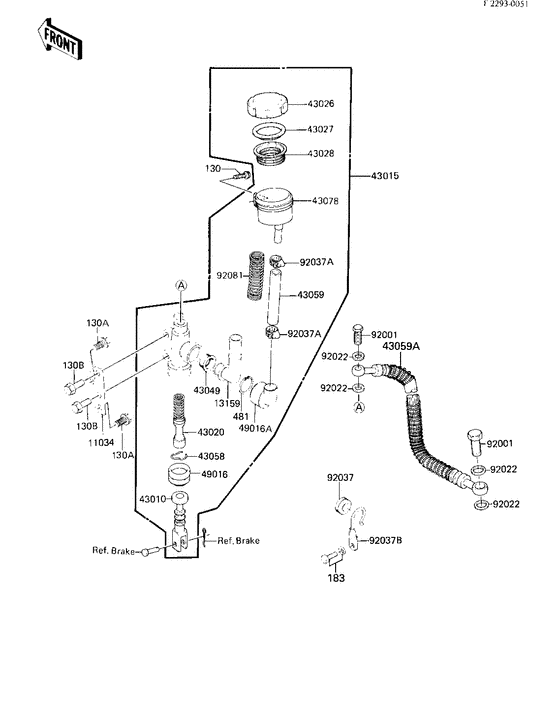

Rear master cylinder ('84 a1) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0620 BOLT-FLANGED,6X20Bolt,flanged,6x20; |
130B0620 |
US $1.11 |
||
| replacements | |||||
|
130
|
130
130CA0620 BOLT-FLANGED,6X20Bolt,flanged,6x20; |
130CA0620 |
from US $1.11 |
||
|
130
|
130
130AA0620 BOLT-FLANGED,6X20Bolt,flanged,6x20; |
130AA0620 |
from US $1.11 |
||
|
130A
|
130A
130G0814 BOLT-FLANGED,8X14Bolt,flanged,8x14; |
130G0814 |
from US $1.27 |
||
| replacement | |||||
|
130A
|
130A
130BA0814 BOLT-FLANGED,8X14Bolt,flanged,8x14; |
130BA0814 |
from US $0.95 |
||
|
130B
|
130B
130G0820 BOLT-FLANGED,8X20Bolt,flanged,8x20; |
130G0820 |
from US $1.27 |
||
| replacement | |||||
|
130B
|
130B
130BA0820 BOLT-FLANGED,8X20Bolt,flanged,8x20; |
130BA0820 |
from US $1.43 |
||
|
183
|
183
183B0816 BOLT-UPSET-WS-SMALL |
183B0816 |
US $1.11 |
||
| replacement | |||||
|
183
|
183
183AA0816 BOLT-UPSET-WS-SMALL |
183AA0816 |
US $1.01 |
||
|
481
|
481
481J2500 CIRCRIP-TYPE-CCircrip-type-c; |
481J2500 |
from US $1.09 |
||
|
11034
|
11034
11034-4267 BRACKET,MASTER CYLINDBracket,master cylind; |
11034-4267 |
US $4.82 |
||
|
13159
|
13159
13159-1009 CONNECTOR |
13159-1009 |
US $16.47 |
||
|
43010
|
43010
43010-1052
ROD-ASSY-BRAKE
|
43010-1052 |
— | ||
|
43015
|
43015
43015-4002 CYLINDER-ASSY-MASTER |
43015-4002 |
US $347.83 |
||
|
43020
|
43020
43020-4001 PISTON-COMP-BRAKE |
43020-4001 |
US $61.47 |
||
|
43026
|
43026
43026-1016 CAP-BRAKE |
43026-1016 |
from US $20.06 |
||
|
43027
|
43027
43027-1005 PLATE,DIAPHRAGMPlate,diaphragm; |
43027-1005 |
from US $4.20 |
||
|
43028
|
43028
43028-1016 DIAPHRAGM |
43028-1016 |
from US $13.84 |
||
|
43049
|
43049
43049-1008 PACKING |
43049-1008 |
from US $8.24 |
||
|
43058
|
43058
43058004 RING,DUST SEALRing,dust seal; |
43058004 |
from US $6.38 |
||
|
43059
|
43059
43059-4004 HOSE-BRAKE |
43059-4004 |
US $86.26 |
||
|
43059A
|
43059A
43059-4004 HOSE-BRAKE |
43059-4004 |
US $86.26 |
||
|
43078
|
43078
43078-1009 RESERVOIR |
43078-1009 |
from US $18.82 |
||
|
49016
|
49016
49016-1034 COVER-SEAL |
49016-1034 |
from US $13.68 |
||
|
49016A
|
49016A
49016-1034 COVER-SEAL |
49016-1034 |
from US $13.68 |
||
|
92001
|
92001
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
92001
|
92001
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
92022
|
92022
43067-001 WASHER-SEAL,10.1X14.5Washer-oil bolt; |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5Washer-oil bolt; |
49091-0001 |
from US $1.27 |
||
|
92037
|
92037
43064007 DAMPER RUBBERDamper rubber; |
43064007 |
from US $3.64 |
||
|
92037A
|
92037A
92037-1386
CLAMP,BRAKE HOSE
Clamp,brake hose; |
92037-1386 |
— | ||
| replacement | |||||
|
92037A
|
92037A
92037-1391 CLAMP,BRAKE HOSEClamp,brake hose; |
92037-1391 |
from US $5.44 |
||
|
92037B
|
92037B
92037-4014
CLAMP,BRAKE HOSE
Clamp,brake hose; |
92037-4014 |
— | ||
|
92081
|
92081
92081-1659
SPRING,HOSE PROTECTER
Spring,hose protecter; |
92081-1659 |
— | ||
