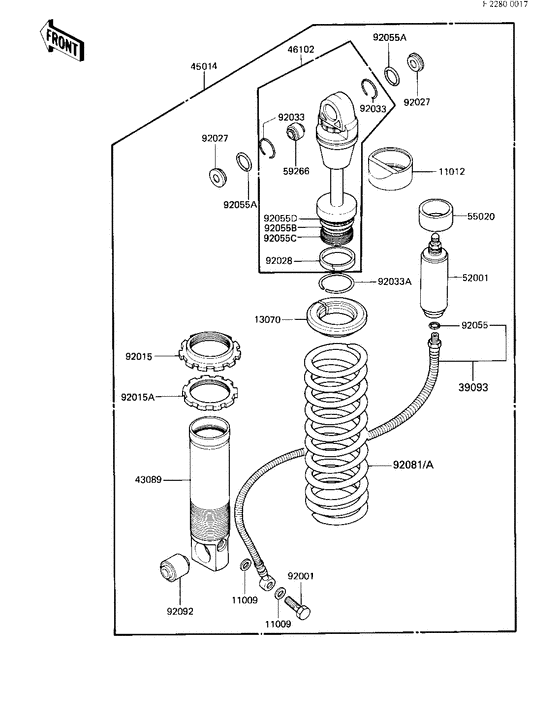

Shock absorber ('84 a1) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
44045057 GASKET,FORK CYLINDERGasket,fork cylinder; |
44045057 |
from US $3.33 |
||
|
11012
|
11012
11012-1278
CAP,REARSHOCK
Cap,rearshock; |
11012-1278 |
— | ||
|
13070
|
13070
13070-1075 GUIDE,SPRINGGuide,spring; |
13070-1075 |
from US $51.31 |
||
|
39093
|
39093
39093-1084 PIPE-COMP-SUSP |
39093-1084 |
US $130.21 |
||
|
43089
|
43089
43089-4002 CYLINDER-SHOCKABSORBE |
43089-4002 |
US $390.10 |
||
|
45014
|
45014
45014-4012 Shock Absorber |
45014-4012 |
US $1,095.91 |
||
|
46102
|
46102
46102-4009 ROD,REARSHOCKRod,rearshock; |
46102-4009 |
US $688.10 |
||
|
52001
|
52001
52001-1104 TANK-OIL,RR SHOCKTank-oil,rr shock; |
52001-1104 |
US $139.95 |
||
|
55020
|
55020
55020-1044 GUARD,AIR TANKGuard,air tank; |
55020-1044 |
US $13.30 |
||
|
59266
|
59266
59266-1014 JOINT-BALL |
59266-1014 |
US $72.95 |
||
|
92001
|
92001
92001-1752 BOLT,PIPE-COMP-SUSPBolt,pipe-comp-susp; |
92001-1752 |
US $10.64 |
||
|
92015
|
92015
92015-1239 NUT,SPRING ADJUSTNut,spring adjust; |
92015-1239 |
US $41.76 |
||
|
92015A
|
92015A
92015-1240 NUT,SPRING ADJUST LOCNut,spring adjust loc; |
92015-1240 |
US $7.29 |
||
|
92027
|
92027
92027-4037
COLLAR,REAR
Collar,rear; |
92027-4037 |
— | ||
|
92028
|
92028
92028-1198 BUSHING,RODBushing,rod; |
92028-1198 |
US $16.88 |
||
|
92033
|
92033
92033-1090 RING-SNAP,REARSHOCKRing-snap,rearshock; |
92033-1090 |
from US $3.64 |
||
|
92033A
|
92033A
92033-1091 RING-SNAP,REARSHOCKRing-snap,rearshock; |
92033-1091 |
from US $3.01 |
||
|
92055
|
92055
92055-1099
0 RING
|
92055-1099 |
— | ||
|
92055A
|
92055A
92055-1156 0 RING,18MMRing-o,rearshock; |
92055-1156 |
from US $0.95 |
||
| replacement | |||||
|
92055A
|
92055A
670B2018 0 RING,18MMRing-o,rearshock; |
670B2018 |
from US $1.77 |
||
|
92055B
|
92055B
92055-1181
RING-O,ROD
Ring-o,rod; |
92055-1181 |
— | ||
|
92055C
|
92055C
92055-1158
RING-O,ROD
Ring-o,rod; |
92055-1158 |
— | ||
|
92055D
|
92055D
92055-1181
RING-O,ROD
Ring-o,rod; |
92055-1181 |
— | ||
|
92081
|
92081
92081-1736 SPRING R-SHOCK,OPT5.8Spring r-shock,opt5.8; (option) |
92081-1736 |
US $292.16 |
||
|
92081A
|
92081A
92081-4024 SPRING R-SHOCK,STD5.0Spring r-shock,std5.0; |
92081-4024 |
US $307.08 |
||
|
92092
|
92092
92092-1008 BUSHING-RUBBER,SHOCKABushing-rubber,shocka; |
92092-1008 |
US $27.86 |
||
| replacement | |||||
|
92092
|
92092
92092-1054 BUSHING-RUBBER,SHOCKABushing-rubber,shocka; |
92092-1054 |
from US $20.94 |
||
