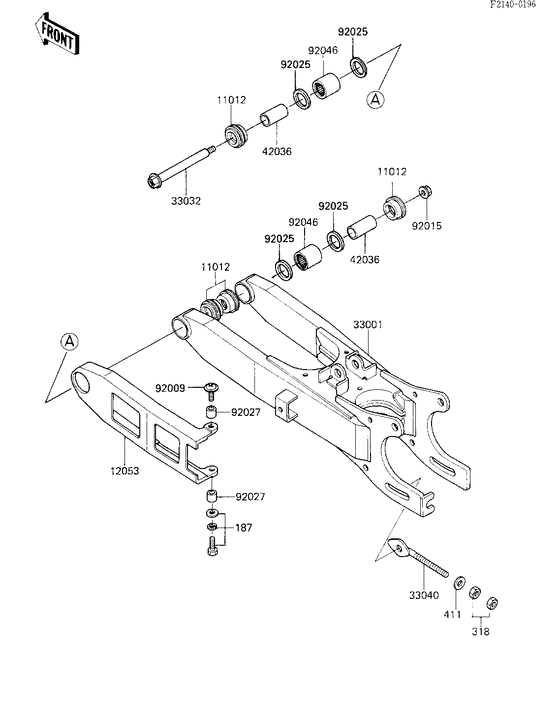

Swing arm ('84 a1) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0620 BOLT-UPSET-WSP |
187B0620 |
from US $1.11 |
||
| replacement | |||||
|
187
|
187
187AA0620 BOLT-UPSET-WSP |
187AA0620 |
from US $1.27 |
||
|
318
|
318
318G0800
NUT-HEX-SMALL,8MM
Nut 8mm; |
318G0800 |
— | ||
| replacement | |||||
|
318
|
318
318BA0800 NUT-HEX-SMALL,8MMNut 8mm; |
318BA0800 |
from US $0.63 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
11012
|
11012
11012-1259 CAP,SWING ARMCap,swing arm; |
11012-1259 |
from US $15.52 |
||
|
12053
|
12053
12053-4003 GUIDE-CHAIN,BLACKGuide-chain,black; |
12053-4003 |
US $52.33 |
||
|
33001
|
33001
33001-4007-8T SWING ARM |
33001-4007-8T |
US $224.53 |
||
|
33032
|
33032
33032-1042
SHAFT-SWING ARM
|
33032-1042 |
— | ||
|
33040
|
33040
33040-4006
ADJUSTER-CHAIN
|
33040-4006 |
— | ||
|
42036
|
42036
42036-1064 SLEEVE,SWING ARMSleeve,swing arm; |
42036-1064 |
from US $15.05 |
||
|
92009
|
92009
92009-1287
Screw,6x14
Screw,6x14; |
92009-1287 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0401 SCREW,6X14Screw,6x14; |
92172-0401 |
from US $1.11 |
||
|
92015
|
92015
92015-1407 NUT,14MMNut,14mm; |
92015-1407 |
from US $6.34 |
||
|
92025
|
92025
92025-1116
SHIM,SWING ARM
Shim,swing arm; |
92025-1116 |
— | ||
|
92027
|
92027
92027-164 COLLAR |
92027-164 |
from US $3.11 |
||
|
92046
|
92046
92046-1031
BRG,NEEDLE,HMK2030
Brg,needle,hmk2030; |
92046-1031 |
— | ||
