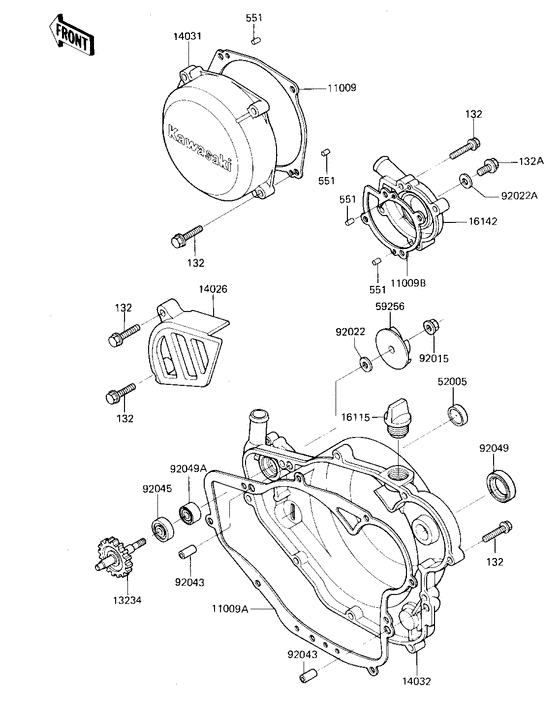

Engine covers/water pump ('85 a2) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A2
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
132
|
132
92002-1609 BOLT |
92002-1609 |
from US $2.85 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
132A
|
132A
132G0810 BOLT-FLANGED-SMALL |
132G0810 |
from US $1.74 |
||
| replacement | |||||
|
132A
|
132A
132BA0810 BOLT-FLANGED-SMALL |
132BA0810 |
from US $1.40 |
||
|
551
|
551
551A0408 PIN,DOWEL,4X8Pin,dowel,4x8; |
551A0408 |
from US $1.17 |
||
|
11009
|
11009
11009-1319 GASKET,GENERATOR COVRGasket,generator cove; |
11009-1319 |
US $11.27 |
||
| replacement | |||||
|
11009
|
11009
11060-1571 GASKET,GENERATOR COVRGasket,generator cove; |
11060-1571 |
US $11.27 |
||
|
11009A
|
11009A
11009-1320 GASKET,CLUTCH COVERGasket,clutch cover; |
11009-1320 |
US $23.90 |
||
| replacement | |||||
|
11009A
|
11009A
11060-1550 GASKET,CLUTCH COVERGasket,clutch cover; |
11060-1550 |
US $23.90 |
||
|
11009B
|
11009B
11009-1321 GASKET, PUMP COVERGasket,pump cover; |
11009-1321 |
US $5.74 |
||
| replacement | |||||
|
11009B
|
11009B
11060-1572 GASKET, PUMP COVERGasket,pump cover; |
11060-1572 |
US $5.74 |
||
|
13234
|
13234
13234-1009
SHAFT-COMP,WATER PUMP
Shaft-comp,water pump; |
13234-1009 |
— | ||
|
14026
|
14026
14026-1119
COVER-CHAIN
|
14026-1119 |
— | ||
|
14031
|
14031
14031-1104 Cover-generator |
14031-1104 |
US $74.43 |
||
|
14032
|
14032
14032-1094 COVER-CLUTCH |
14032-1094 |
US $333.81 |
||
|
16115
|
16115
16115018 CAP-OIL FILLERFiller,oil; |
16115018 |
from US $7.92 |
||
|
16142
|
16142
16142-1008 COVER-PUMP,WATERCover-pump,water; |
16142-1008 |
US $61.79 |
||
|
52005
|
52005
52005-1005 GAUGE,OIL LEVELGauge,oil level; |
52005-1005 |
US $12.89 |
||
| replacement | |||||
|
52005
|
52005
52005-0019 GAUGE,OIL LEVELGauge,oil level; |
52005-0019 |
from US $11.16 |
||
|
59256
|
59256
59256-1002
IMPELLER,WATER PUMP
Impeller,water pump; |
59256-1002 |
— | ||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
92022-1393
WASHER,6X14X2
Washer,6x14x2; |
92022-1393 |
— | ||
|
92022A
|
92022A
92022-1488 WASHER,8.2X14X1.0Washer,8.2x14x1; |
92022-1488 |
from US $3.17 |
||
|
92043
|
92043
92042-007 PIN-DOWELPin-dowel; |
92042-007 |
from US $4.44 |
||
|
92045
|
92045
92045-1212
BEARING-BALL
|
92045-1212 |
— | ||
| replacements | |||||
|
92045
|
92045
92045-1305 BEARING-BALL |
92045-1305 |
US $12.78 |
||
|
92045
|
92045
92045-1497 Bearing-Ball,608Mc3 |
92045-1497 |
from US $12.67 |
||
|
92049
|
92049
92049-013 OIL SEAL,SB18307Oil seal,sb18307; |
92049-013 |
from US $8.87 |
||
|
92049A
|
92049A
92049-1366 SEAL-OIL,MHSD8X18X10JSeal-oil,mhsd8x18x10j; |
92049-1366 |
from US $11.88 |
||
