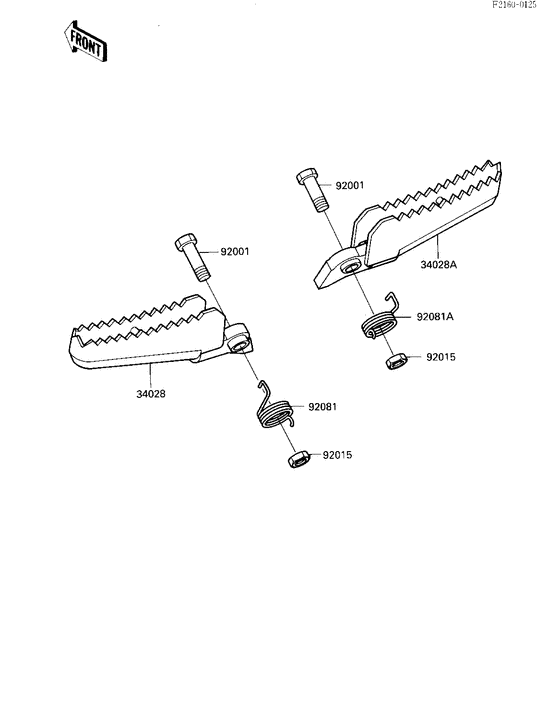

Footrests ('85 a2) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A2
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34028
|
34028
34028-1139 STEP,LH,BLACK PAINTStep,lh,black paint; |
34028-1139 |
US $40.70 |
||
|
34028A
|
34028A
34028-1140 STEP,RH,BLACK PAINTStep,rh,black paint; |
34028-1140 |
US $40.70 |
||
|
92001
|
92001
92001-4038 BOLT,10X44Bolt,10x44; |
92001-4038 |
US $3.35 |
||
|
92015
|
92015
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015
|
92015
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015
|
92015
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
from US $3.33 |
||
|
92081
|
92081
92081-4027 SPRING,STEP,LHSpring,step,lh; |
92081-4027 |
US $4.82 |
||
|
92081A
|
92081A
92081-4028 SPRING,STEP,RHSpring,step,rh; |
92081-4028 |
US $4.25 |
||
