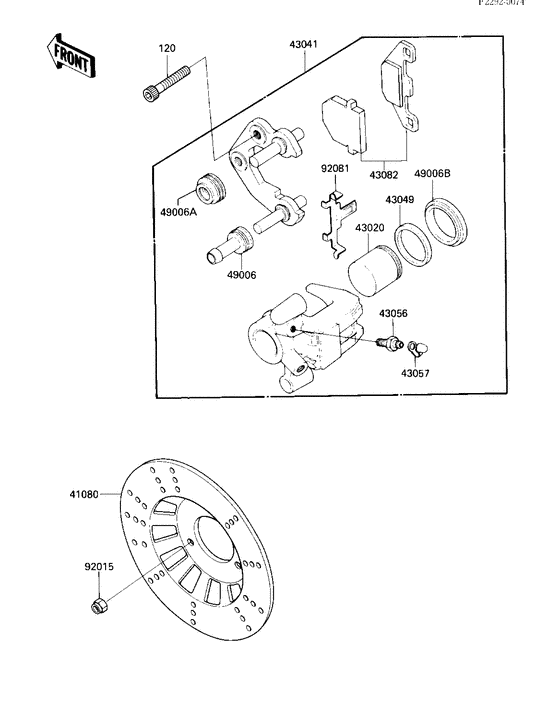

Front brake ('85 a2) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A2
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0830
BOLT-SOCKET,8X30
Bolt,socket,8x30; |
120P0830 |
— | ||
| replacement | |||||
|
120
|
120
120CA0830 BOLT-SOCKET,8X30Bolt,socket,8x30; |
120CA0830 |
from US $1.61 |
||
|
41080
|
41080
41080-4001 DISK,4X210Disk,4x210; |
41080-4001 |
US $326.45 |
||
|
43020
|
43020
43020-1082 PISTON-COMP-BRAKE |
43020-1082 |
from US $49.97 |
||
|
43041
|
43041
43041-1191 CALIPER-ASSY |
43041-1191 |
US $324.16 |
||
|
43049
|
43049
43049-1026
PACKING,PISTON SEAL
Packing,piston seal; |
43049-1026 |
— | ||
| replacement | |||||
|
43049
|
43049
43049-1095 PACKING,PISTON SEALPacking, piston seal Packing,piston seal; |
43049-1095 |
from US $10.63 |
||
|
43056
|
43056
43056-003
BLEEDER SET
Breeder; |
43056-003 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SETBreeder; |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDERCap,breeder; |
43057-003 |
from US $3.01 |
||
|
43082
|
43082
43082-1027 PAD-ASSY-BRAKEPad-assy-brake,fr; |
43082-1027 |
US $55.80 |
||
| replacement | |||||
|
43082
|
43082
43082-1063 PAD-ASSY-BRAKEPad-assy-brake,fr; |
43082-1063 |
from US $65.06 |
||
|
49006
|
49006
49006-1054 BOOT,CALIPERBoot,caliper; |
49006-1054 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1055 BOOT,CALIPERBoot,caliper; |
49006-1055 |
from US $4.91 |
||
|
49006B
|
49006B
49006-1091 BOOT,PISTONBoot,piston; |
49006-1091 |
from US $12.67 |
||
|
92015
|
92015
92015-1143 NUT-8MMNut-8mm; |
92015-1143 |
from US $0.99 |
||
|
92081
|
92081
92081-1341 SPRING |
92081-1341 |
from US $9.35 |
||
