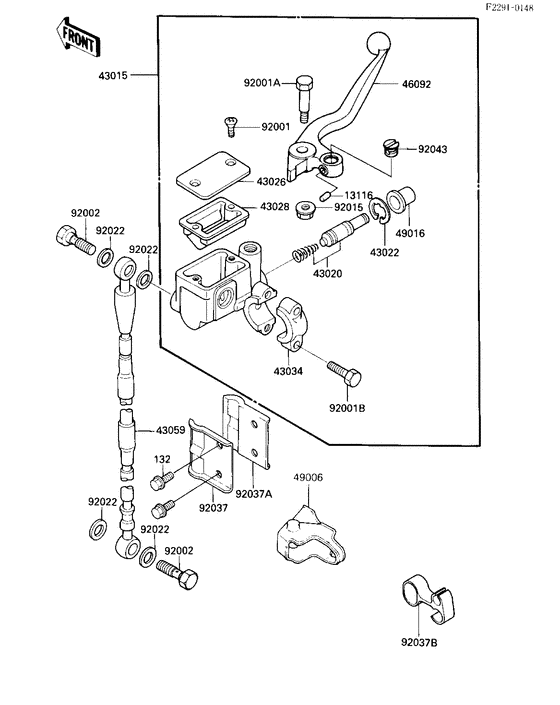

Front master cylinder ('85 a2) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A2
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0614
BOLT-FLANGED-SMALL,6X
|
132G0614 |
— | ||
| replacement | |||||
|
132
|
132
132BA0614 BOLT-FLANGED-SMALL,6X |
132BA0614 |
from US $0.79 |
||
|
13116
|
13116
13116-1116
ROD-PUSH
|
13116-1116 |
— | ||
|
43015
|
43015
43015-1287
CYLINDER-ASSY-MASTER,
|
43015-1287 |
— | ||
|
43020
|
43020
43020-1060 PISTON-COMP-BRAKE |
43020-1060 |
US $56.14 |
||
| replacement | |||||
|
43020
|
43020
43020-1104 PISTON-BRAKE |
43020-1104 |
from US $48.96 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERStopper-brake,piston; |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1021
CAP-BRAKE,MASTER CYLI
Cap-brake,master cyli; |
43026-1021 |
— | ||
|
43028
|
43028
43028-1035 DIAPHRAGM,MASTER CYLIDiaphragm,master cyli; |
43028-1035 |
from US $18.85 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER CHolder-brake,master c; |
43034-1016 |
from US $14.10 |
||
|
43059
|
43059
43059-1317 HOSE-BRAKE,FRHose-brake,fr; |
43059-1317 |
US $236.68 |
||
|
46092
|
46092
46092-1118 LEVER-GRIP,FR BRAKELever-grip,fr brake; |
46092-1118 |
US $31.37 |
||
|
49006
|
49006
49006-1090
BOOT,BRAKE LEVER
Boot,brake lever; |
49006-1090 |
— | ||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERCover-seal,master cyl; |
49016-1044 |
from US $10.08 |
||
|
92001
|
92001
92001-1727 BOLT,MASTER CYLINDERBolt,master cylinder; |
92001-1727 |
from US $2.85 |
||
|
92001A
|
92001A
92001-1728 BOLT,FRONT BRAKE LEVERBolt,front brake leve; |
92001-1728 |
from US $10.45 |
||
|
92001B
|
92001B
92001-1729 BOLTBolt,6x25,black; |
92001-1729 |
from US $3.48 |
||
| replacement | |||||
|
92001B
|
92001B
92002-1894 BOLTBolt,6x25,black; |
92002-1894 |
from US $3.17 |
||
|
92002
|
92002
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
43067-001 WASHER-SEAL,10.1X14.5Washer-oil bolt; |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5Washer-oil bolt; |
49091-0001 |
from US $1.27 |
||
|
92037
|
92037
92037-1362 CLAMP,BRAKE HOSE,OUTSClamp,brake hose,outs; |
92037-1362 |
from US $4.95 |
||
|
92037A
|
92037A
92037-1363 CLAMP,BRAKE HOSE,INSIClamp,brake hose,insi; |
92037-1363 |
from US $4.12 |
||
|
92037B
|
92037B
92037-1629 CLAMP,BRAKE HOSEClamp,brake hose; |
92037-1629 |
US $6.18 |
||
|
92043
|
92043
92043-1286
PIN
|
92043-1286 |
— | ||
