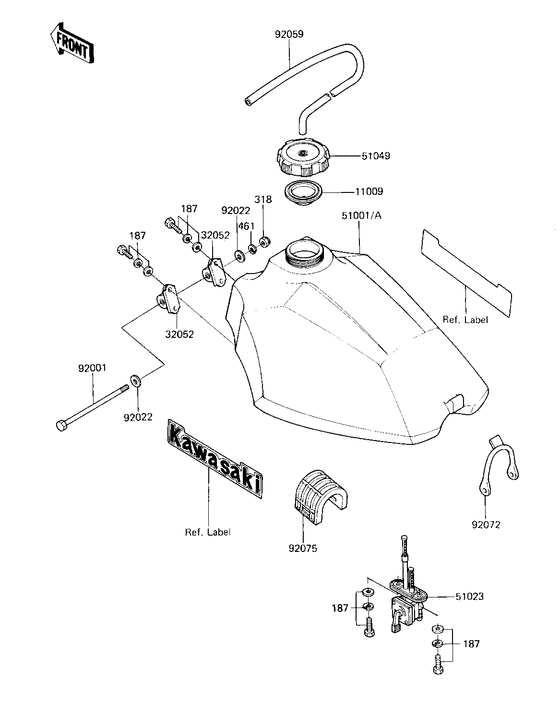

Fuel tank ('85 a2) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A2
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
187
|
187
187B0616
BOLT-UPSET-WSP
|
187B0616 |
— | ||
| replacement | |||||
|
187
|
187
187AA0616 BOLT-UPSET-WSP |
187AA0616 |
from US $1.70 |
||
|
318
|
318
318B0800
NUT-HEX-SMALL
Nut 8mm; |
318B0800 |
— | ||
| replacement | |||||
|
318
|
318
318AA0800 NUT-HEX-SMALLNut 8mm; |
318AA0800 |
from US $0.92 |
||
|
461
|
461
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
461
|
461
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
11009
|
11009
11009-4001
GASKET,FUEL TANK CAP
Gasket,fuel tank cap; |
11009-4001 |
— | ||
| replacement | |||||
|
11009
|
11009
11009-1276
GASKET,FUEL TANK CAP
Gasket,fuel tank cap; |
11009-1276 |
— | ||
|
32052
|
32052
32052-4011 BRACKET-TANK |
32052-4011 |
US $17.06 |
||
|
51001
|
51001
51001-4007-6W
TANK-FUEL,L.GREEN
Tank-fuel,l.green; |
51001-4007-6W |
— | ||
|
51001A
|
51001A
51001-4007-8S
TANK-FUEL,W.F.RED
Tank-fuel,w.f.red; |
51001-4007-8S |
— | ||
|
51023
|
51023
51023-1045
TAP-ASSY
|
51023-1045 |
— | ||
| replacement | |||||
|
51023
|
51023
51023-1344
TAP-ASSY
|
51023-1344 |
— | ||
|
51049
|
51049
51049-1060
CAP-TANK,FUEL
Cap-tank,fuel; |
51049-1060 |
— | ||
|
92001
|
92001
92001-4031
BOLT,8X186
Bolt,8x186; |
92001-4031 |
— | ||
|
92022
|
92022
92022-1561 WASHER,8.5X20X1.6Washer,8.5x20x1.6; |
92022-1561 |
from US $2.69 |
||
|
92059
|
92059
92059-1258 TUBE,5X9X250Tube,5x9x250; |
92059-1258 |
US $8.32 |
||
| replacement | |||||
|
92059
|
92059
92192-0753 TUBE,5X9.4X250Tube,5x9x250; |
92192-0753 |
from US $6.06 |
||
|
92072
|
92072
92072-042 BAND,FUEL TANKBand,fuel tank; |
92072-042 |
from US $8.64 |
||
|
92075
|
92075
92075-4036 DAMPER,FUEL TANKDamper,fuel tank; |
92075-4036 |
US $15.89 |
||
