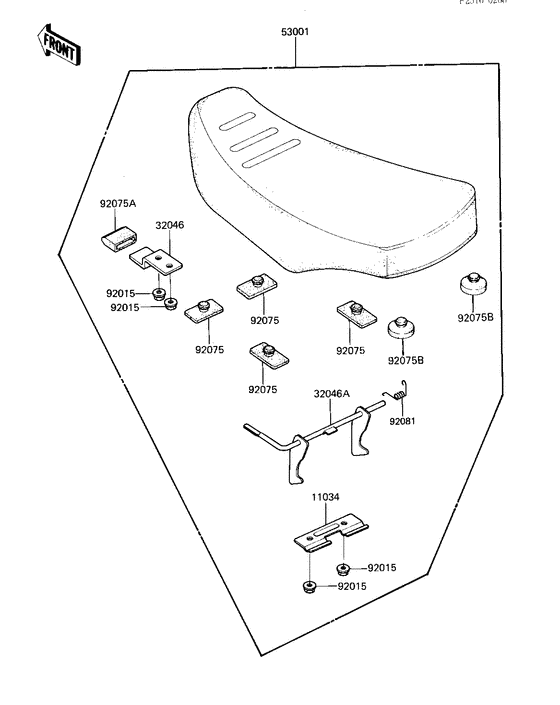

Seat ('85 a2) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A2
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11034
|
11034
11034-4048
BRACKET,SEAT
Bracket,seat; |
11034-4048 |
— | ||
|
32046
|
32046
32046-1225 BRACKET-SEAT |
32046-1225 |
US $2.65 |
||
|
32046A
|
32046A
32046-4021 BRACKET,SEATBracket,seat; |
32046-4021 |
US $7.81 |
||
|
53001
|
53001
53001-1395
SEAT-ASSY,DUAL
Seat-assy,dual; |
53001-1395 |
— | ||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92075
|
92075
92075-1054 DAMPER RUBBER,SEATDamper rubber,seat; |
92075-1054 |
from US $3.17 |
||
|
92075A
|
92075A
92075-219 DAMPER RUBBER,SEATDamper rubber,seat; |
92075-219 |
from US $4.59 |
||
|
92075B
|
92075B
92075-281 DAMPER RUBBERDamper rubber; |
92075-281 |
from US $3.64 |
||
|
92081
|
92081
92081-4017
SPRING
|
92081-4017 |
— | ||
