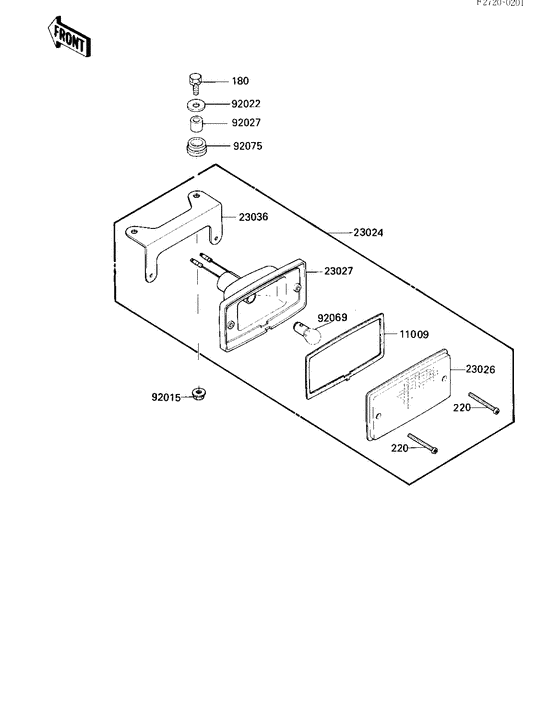

Taillight ('85 a2) Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-A2
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180B0625
BOLT-UPSET-WS,6X25
Bolt-upset-ws,6x25; |
180B0625 |
— | ||
| replacement | |||||
|
180
|
180
180AA0625 BOLT-UPSET-WS,6X25Bolt-upset-ws,6x25; |
180AA0625 |
from US $1.15 |
||
|
220
|
220
220B0420 SCREW-PAN-CROS,4X20 |
220B0420 |
US $4.48 |
||
| replacements | |||||
|
220
|
220
220AA0420 SCREW-PAN-CROS,4X20 |
220AA0420 |
from US $0.79 |
||
|
220
|
220
220AB0420 SCREW-PAN-CROS,4X20 |
220AB0420 |
from US $1.29 |
||
|
11009
|
11009
11009-4004 GASKET |
11009-4004 |
from US $4.67 |
||
|
23024
|
23024
23024-4002
LAMP-ASSY-TAIL
|
23024-4002 |
— | ||
|
23026
|
23026
23026-4003 LENS,TAIL LAMPLens,tail lamp; |
23026-4003 |
from US $13.84 |
||
|
23027
|
23027
23027-4001
BODY-COMP-TAIL LAMP
|
23027-4001 |
— | ||
|
23036
|
23036
23036-4004 BRACKET-TAIL LAMP |
23036-4004 |
US $12.28 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
42046008 WASHER SHOCK DAMPERWasher shock damper; |
42046008 |
US $3.48 |
||
|
92027
|
92027
92027-156
COLLAR 6.8X10X14.5
Collar 6.8x10x14.5; |
92027-156 |
— | ||
|
92069
|
92069
92069-1012 BULB,12V 4CPBulb,12v 4cp; |
92069-1012 |
US $3.33 |
||
|
92075
|
92075
92075-1035 DAMPER RUBBERDamper rubber; |
92075-1035 |
from US $3.80 |
||
