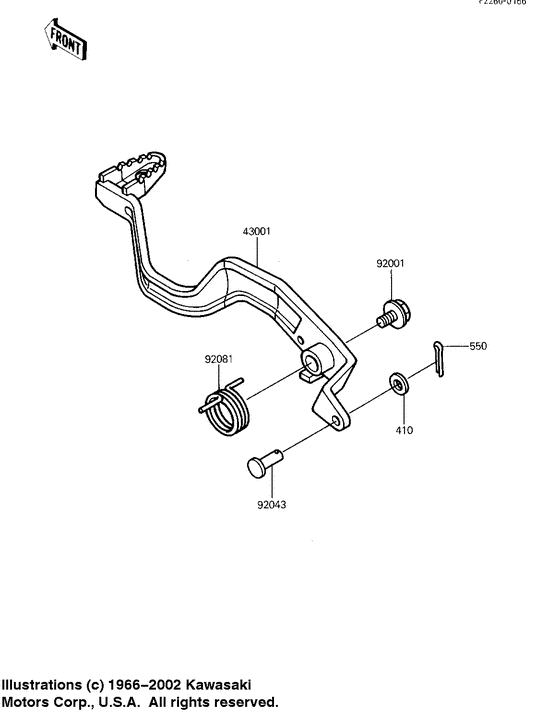

Brake pedal Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
410
|
410
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
43001
|
43001
43001-1203 LEVER-BRAKE,PEDALLever-brake,pedal; |
43001-1203 |
US $77.56 |
||
|
92001
|
92001
92001-1034 BOLT,HEX HEAD,6X10Bolt,hex head,6x10; |
92001-1034 |
from US $6.49 |
||
|
92043
|
92043
92043-1013 PIN |
92043-1013 |
from US $6.65 |
||
|
92081
|
92081
92081-1640
SPRING,BRAKE RETURN
Spring,brake return; |
92081-1640 |
— | ||
