Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
112	112 112G0618 BOLT-UPSET	112G0618	—
	replacement
112	112 112BA0618 BOLT-UPSET	112BA0618	from US $0.95
132	132 132G0640 BOLT-FLANGED-SMALL	132G0640	—
	replacement
132	132 132BA0640 BOLT-FLANGED-SMALL	132BA0640	from US $1.27
482	482 482J6000 CIRCLIP-TYPE-E,6MM Circlip 6mm;	482J6000	from US $1.05
600	600 600A1000 BALL STEEL 5/16' Ball steel 5/16';	600A1000	from US $0.95
601	601 601B6204 BEARING BALL #6204 Bearing ball #6204;	601B6204	from US $13.94
11009	11009 92065-058 GASKET Gasket check valve;	92065-058	from US $3.37
13206	13206 13206-1052 GUIDE-KICK	13206-1052	from US $8.08
13234	13234 13234-1061 SHAFT-COMP,GOVERNOR Shaft-comp,governor;	13234-1061	US $83.97
14001	14001 14001-5206 SET-CRANKCASE	14001-5206	US $733.91
14069	14069 14069003 BREATHER	14069003	from US $7.92
21083	21083 21083-1058 ARM	21083-1058	—
32085	32085 32085-1016 STOPPER,KICKSTARTER Stopper,kickstarter;	32085-1016	from US $7.13
42036	42036 42036-1177 SLEEVE	42036-1177	US $14.87
49046	49046 49046-1055 ROD-GOVERNOR	49046-1055	US $24.68
49111	49111 49111-1051 HOLDER-GOVERNOR WEIGH Holder-governor weigh;	49111-1051	from US $42.94
92001	92001 92001-1829 BOLT,W/WASHER,6X14 Bolt,w/washer,6x14;	92001-1829	from US $2.53
92002	92002 92002-1601 BOLT,RETURN SPRING Bolt,8x15;	92002-1601	US $6.21
	replacement
92002	92002 92150-1467 BOLT,RETURN SPRING Bolt,8x15;	92150-1467	from US $4.75
92004	92004 92004-1063 STUD,10X35 Stud,10x35;	92004-1063	US $4.77
92004A	92004A 92004-1065 STUD,10X45 Stud,10x45;	92004-1065	US $6.21
92022	92022 92022-1634 WASHER,8.3X28X1.6 Washer,8.3x28x1.6;	92022-1634	US $2.93
92026	92026 92026-1238 SPACER,15X28X1 Spacer,15x28x1;	92026-1238	from US $5.70
92027	92027 92027-1838 COLLAR	92027-1838	from US $17.27
92027A	92027A 92027-1839 COLLAR,15.2X17X4 Collar,15.2x17x4;	92027-1839	from US $8.08
92028	92028 92028-1133 BUSHING,CRANKCASE Bushing,crankcase;	92028-1133	US $11.43
92028A	92028A 92028-131 BUSHING	92028-131	from US $23.64
92028B	92028B 92028-132 BUSHING	92028-132	from US $23.64
92028C	92028C 92028-1366 BUSHING	92028-1366	—
92037	92037 92037-010 CLAMP FUEL PIPE Clamp fuel pipe;	92037-010	from US $2.69
92037A	92037A 92037-1318 CLAMP,HARNESS Clamp,harness;	92037-1318	from US $4.12
92043	92043 92042-007 PIN-DOWEL Pin-dowel;	92042-007	from US $4.44
92043A	92043A 92043-1258 PIN,4X32 Pin,4x32;	92043-1258	from US $2.93
92045	92045 92045-1211 BEARING-BALL	92045-1211	—
	replacement
92045	92045 92045-1304 BEARING-BALL	92045-1304	from US $12.21
92045A	92045A 92045-1024 BEARING,BALL,#6305SH2 Bearing,ball,#6305sh2;	92045-1024	US $54.60
92045B	92045B 92045-1212 BEARING-BALL	92045-1212	—
	replacements
92045B	92045B 92045-1305 BEARING-BALL	92045-1305	US $12.78
92045B	92045B 92045-1497 Bearing-Ball,608Mc3	92045-1497	from US $12.67
92045C	92045C 92045-1058 BEARING-BALL,6905Z Bearing-ball,6905z;	92045-1058	from US $25.73
92045D	92045D 92045-1115 BEARING-BALL,6205 Bearing-ball,6205;	92045-1115	US $24.09
92046	92046 92046-1052 BEARING-NEEDLE,AXK110 Bearing-needle,axk110;	92046-1052	from US $14.52
92049	92049 92049-004 OIL SEAL SB12205 Oil seal sb12205;	92049-004	from US $5.28
92049A	92049A 92049-1051 OIL SEAL,TCJ25457 Oil seal,tcj25457;	92049-1051	from US $19.80
92049B	92049B 92049-1052 OIL SEAL,TCJ20407 Oil seal,tcj20407;	92049-1052	from US $16.79
92049C	92049C 92049-1207 SEAL-OIL,SDO8144 Seal-oil,sdo8144;	92049-1207	from US $6.97
92049D	92049D 92050-033 OIL SEAL TB3040 Oil seal tb3040;	92050-033	from US $18.06
92049E	92049E 92051-003 OIL SEAL TB16267 Oil seal tb16267;	92051-003	from US $5.70
92059	92059 92059-1125 Tubu l=500m/m Tube,6x9x500;	92059-1125	US $9.76
	replacement
92059	92059 92059-1939 TUBE Tube,6x9x500;	92059-1939	from US $10.43
92066	92066 92066-1241 DRAIN PLUG	92066-1241	from US $3.96
92081	92081 92081-1934 SPRING,GOVERNOR Spring,governor;	92081-1934	from US $3.89

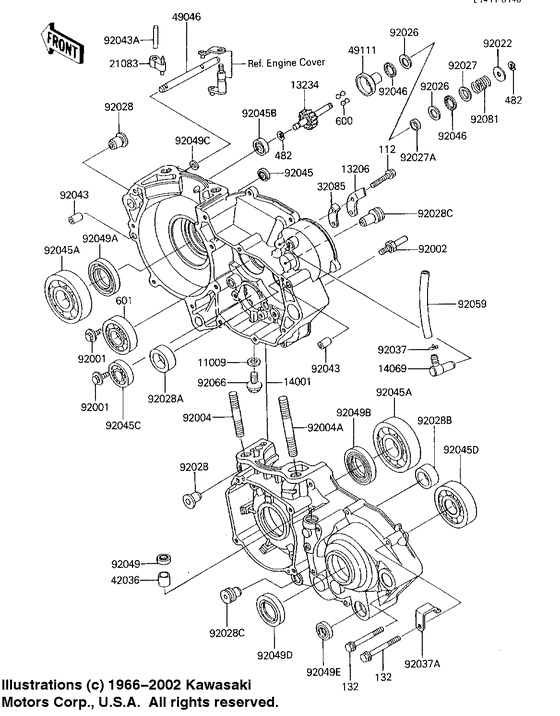

Crankcase Diagram Kawasaki KXT250 Tecate 3 USA 10412049-683873

Crankcase Diagram Kawasaki KXT250 Tecate 3 USA 10412049-683873
