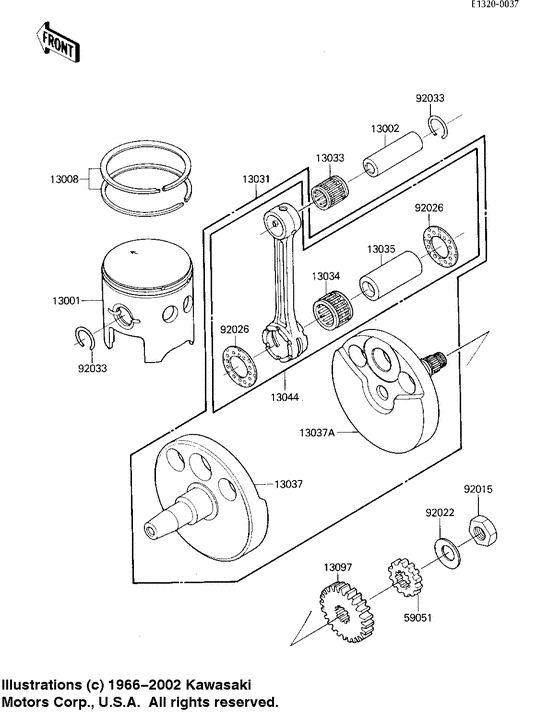

Crankshaft/piston Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13001
|
13001
13001-1039
PISTON,STD
Piston,std; |
13001-1039 |
— | ||
|
13002
|
13002
13002017 PIN-PISTON |
13002017 |
US $21.39 |
||
|
13008
|
13008
13008-5068 RING-SET-PISTON |
13008-5068 |
US $59.09 |
||
|
13031
|
13031
13031-1213 Crankshaft-comp |
13031-1213 |
US $623.41 |
||
|
13033
|
13033
13033-1010 BEARING-SMALL ENDBearing-small end; |
13033-1010 |
from US $21.23 |
||
|
13034
|
13034
13034-1060 BEARING-BIG END,H24X3Bearing-big end,h24x3; |
13034-1060 |
US $55.87 |
||
|
13035
|
13035
13035-034
PIN,CRANK
Pin,crank; |
13035-034 |
— | ||
|
13037
|
13037
13037-1097 CRANKSHAFT |
13037-1097 |
US $347.65 |
||
|
13037A
|
13037A
13037-1275 CRANKSHAFT,RHCrankshaft,rh; |
13037-1275 |
US $294.43 |
||
|
13044
|
13044
13044-5042 SET-CONNECTING ROD |
13044-5042 |
US $188.60 |
||
|
13097
|
13097
13097-1084 GEAR-PRIMARY SPUR,18TGear-primary spur,18t; |
13097-1084 |
US $115.42 |
||
|
59051
|
59051
59051-1049 GEAR-SPUR,WATER PUMP,Gear-spur,water pump,; |
59051-1049 |
US $26.10 |
||
|
92015
|
92015
92015-1176 NUT,16MMNut,16mm; |
92015-1176 |
US $4.52 |
||
|
92022
|
92022
92022-1356 WASHER,16.3X29X1.75Washer,16.3x29x1.75; |
92022-1356 |
from US $4.80 |
||
|
92026
|
92026
92026-1241
SPACER,24X42X1.6
|
92026-1241 |
— | ||
| replacement | |||||
|
92026
|
92026
92026-1500 SPACER,24X42X1.6 |
92026-1500 |
US $5.07 |
||
|
92033
|
92033
92036-015 CIRCLIP-PISTON PINCirclip-piston pin; |
92036-015 |
from US $3.33 |
||
