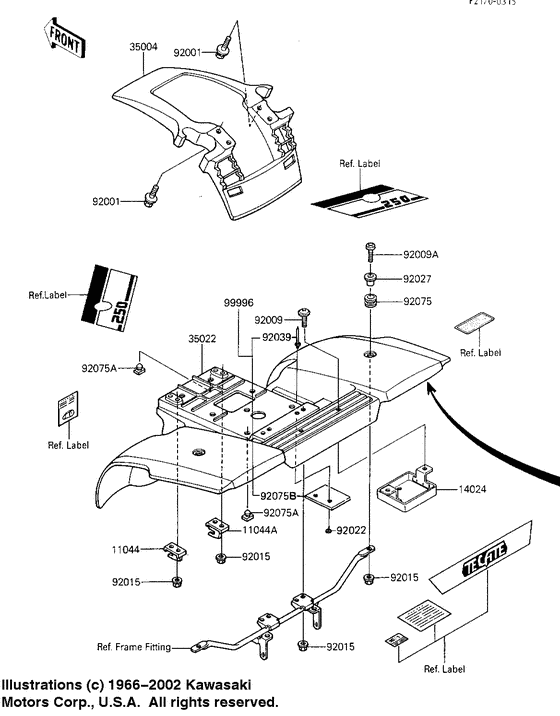

Fenders Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11044
|
11044
11044-1798 BRACKET,REAR FENDER,FBracket,rear fender,f; |
11044-1798 |
US $8.24 |
||
|
11044A
|
11044A
11044-1809 BRACKET,REAR FENDER,FBracket,rear fender,f; |
11044-1809 |
US $9.50 |
||
|
14024
|
14024
14024-1287
COVER
|
14024-1287 |
— | ||
|
35004
|
35004
35004-1181-6W
FENDER-FRONT
|
35004-1181-6W |
— | ||
|
35022
|
35022
35022-1230-6W
FENDER-COMP RR L GREN
|
35022-1230-6W |
— | ||
|
92001
|
92001
92001-1763 BOLT,W/SP,6X16Bolt,w/sp,6x16; |
92001-1763 |
from US $3.01 |
||
|
92009
|
92009
92009-1287
Screw,6x14
Screw,6x14; |
92009-1287 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0401 SCREW,6X14Screw,6x14; |
92172-0401 |
from US $1.11 |
||
|
92009A
|
92009A
92009-1347 SCREW,6X22Screw,6x22; |
92009-1347 |
from US $3.80 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
92022-4017 WASHER( jkaxtmb1 gb500938 - ) |
92022-4017 |
from US $0.62 |
||
|
92027
|
92027
92027-1045 COLLAR |
92027-1045 |
from US $3.33 |
||
|
92039
|
92039
92039-4006 RIVET( jkaxtmb1 gb500938 - ) |
92039-4006 |
from US $0.83 |
||
|
92075
|
92075
92075-222 DAMPER RUBBER,CASEDamper rubber,case; |
92075-222 |
from US $4.12 |
||
|
92075A
|
92075A
92075-1153 DAMPER,SEATDamper,seat; |
92075-1153 |
from US $3.33 |
||
|
92075B
|
92075B
92075-1868
DAMPER
( jkaxtmb1 gb500938 - ) |
92075-1868 |
— | ||
|
99996
|
99996
99996-1093
Kit
Kit,damper,kxt250b1; ( - jkaxtmb1 bg500937 ) |
99996-1093 |
— | ||
