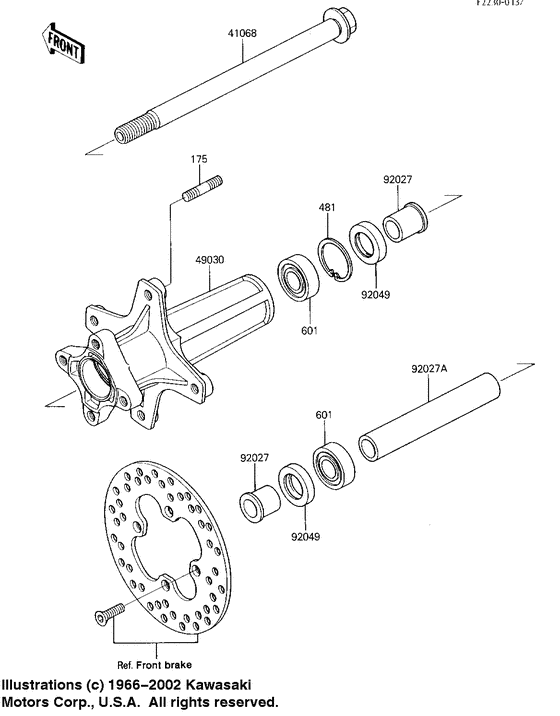

Front hub Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
175
|
175
175G1020 BOLT-STUD-FINE,10X20Bolt-stud-fine,10x20; |
175G1020 |
US $3.60 |
||
|
481
|
481
92033-1040 RING, SNAP,43.5M/MRing, snap,43.5m/m; |
92033-1040 |
from US $3.48 |
||
|
601
|
601
601B6203ZZ BRG,BALL,#6203ZZC3Bearing-ball #6203; |
601B6203ZZ |
US $17.11 |
||
|
41068
|
41068
41068-1206 AXLE,FRAxle,fr; |
41068-1206 |
US $98.30 |
||
|
49030
|
49030
49030-1071 HUB,FRHub,fr; |
49030-1071 |
US $309.94 |
||
|
92027
|
92027
92027-1951 COLLAR,L=20Collar,l=20; |
92027-1951 |
US $13.52 |
||
|
92027A
|
92027A
92027-1953 COLLAR,40.2X45.4X129Collar,40.2x45.4x129; |
92027-1953 |
US $33.98 |
||
|
92049
|
92049
92049-1110 SEAL-OIL,AG1258A0Seal-oil,ag1258a0; |
92049-1110 |
from US $6.49 |
