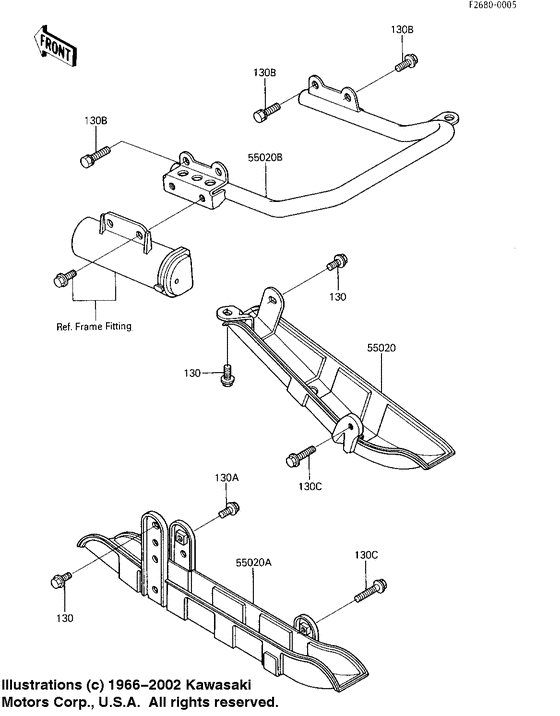

Guards Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0810 BOLT-FLANGED |
130B0810 |
US $0.72 |
||
| replacement | |||||
|
130
|
130
130AA0810 BOLT-FLANGED |
130AA0810 |
US $7.20 |
||
|
130A
|
130A
130G0814 BOLT-FLANGED,8X14Bolt,flanged,8x14; |
130G0814 |
from US $1.27 |
||
| replacement | |||||
|
130A
|
130A
130BA0814 BOLT-FLANGED,8X14Bolt,flanged,8x14; |
130BA0814 |
from US $0.95 |
||
|
130B
|
130B
130B0816 BOLT-FLANGEDBolt-flanged,8x16; |
130B0816 |
US $6.70 |
||
| replacements | |||||
|
130B
|
130B
130BA0816 BOLT-FLANGEDBolt-flanged,8x16; |
130BA0816 |
from US $1.11 |
||
|
130B
|
130B
130AA0816 BOLT-FLANGEDBolt-flanged,8x16; |
130AA0816 |
from US $1.24 |
||
|
130C
|
130C
130B0820 BOLT-FLANGEDBolt-flanged,8x20; |
130B0820 |
US $6.70 |
||
| replacements | |||||
|
130C
|
130C
130AA0820 BOLT-FLANGEDBolt-flanged,8x20; |
130AA0820 |
from US $1.05 |
||
|
130C
|
130C
130BA0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130BA0820 |
from US $1.43 |
||
|
55020
|
55020
55020-1205
GUARD,DISK
Guard,disk; |
55020-1205 |
— | ||
|
55020A
|
55020A
55020-1206
GUARD,CHAIN
Guard,chain; |
55020-1206 |
— | ||
|
55020B
|
55020B
55020-1217
GUARD,REAR STAY
Guard,rear stay; |
55020-1217 |
— | ||
