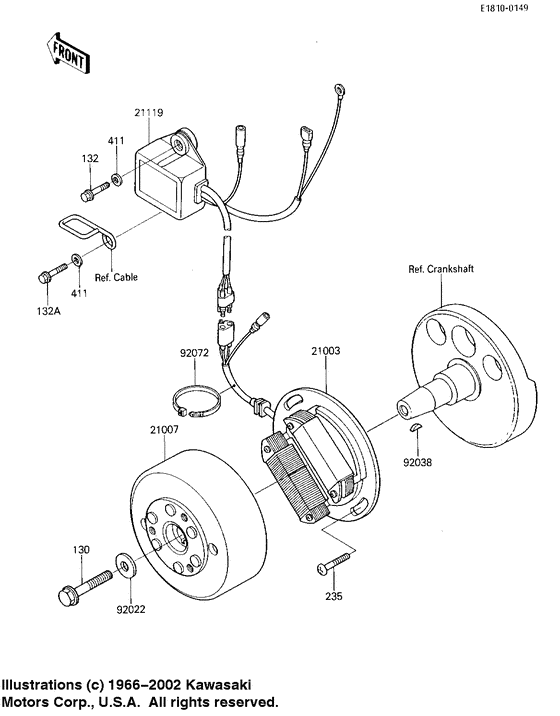

Ignition/generator Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130P0840 BOLT-FLANGED,8X40Bolt-flanged,8x40; |
130P0840 |
from US $1.01 |
||
| replacement | |||||
|
130
|
130
130CA0840 BOLT-FLANGED,8X40Bolt-flanged,8x40; |
130CA0840 |
from US $1.27 |
||
|
132
|
132
132G0616
BOLT-FLANGED-SMALL,6X
|
132G0616 |
— | ||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
132A
|
132A
132G0620
BOLT-FLANGED-SMALL,6X
|
132G0620 |
— | ||
| replacement | |||||
|
132A
|
132A
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
235
|
235
235B0616
SCREW-PAN-WP-CROS
|
235B0616 |
— | ||
| replacement | |||||
|
235
|
235
235AA0616 SCREW-PAN-WP-CROS |
235AA0616 |
from US $1.24 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
21003
|
21003
21003-1177 STATOR |
21003-1177 |
US $550.06 |
||
|
21007
|
21007
21007-1143 ROTOR |
21007-1143 |
US $588.26 |
||
|
21119
|
21119
21119-1074 IGNITER |
21119-1074 |
US $517.90 |
||
|
92022
|
92022
92022-276 WASHER,PLAIN,8MMWasher,plain,8mm; |
92022-276 |
from US $6.81 |
||
|
92038
|
92038
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
|
92072
|
92072
92072-3505
BAND
|
92072-3505 |
— | ||
