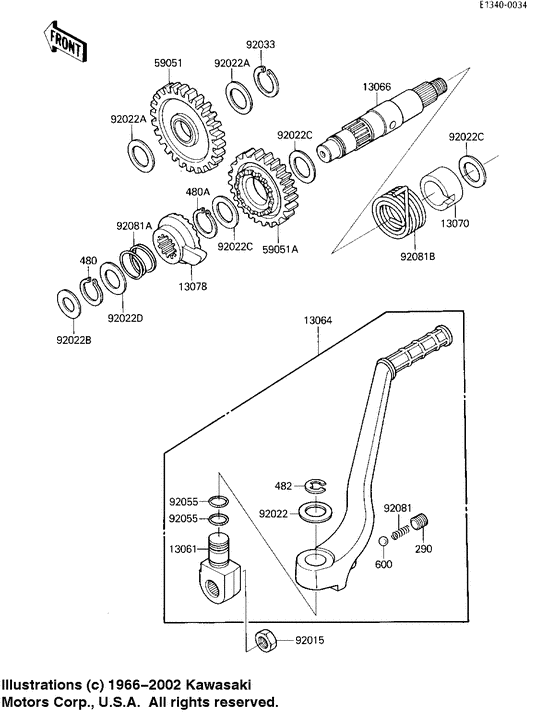

Kickstarter mechanism Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
290
|
290
290Q0816 SCREW, 8X16Screw, 8x16; |
290Q0816 |
US $2.88 |
||
|
480
|
480
480J1600 CIRCLIP 16MMCirclip 16mm; |
480J1600 |
from US $1.43 |
||
|
480A
|
480A
480J1800 CIRCLIP 18MMCirclip 18mm; |
480J1800 |
from US $1.11 |
||
|
482
|
482
482L0100 RING, SNAPRing, snap; |
482L0100 |
from US $1.11 |
||
| replacement | |||||
|
482
|
482
482EA0100 CIRCLIP-TYPE-E,10MMRing, snap; |
482EA0100 |
from US $0.72 |
||
|
600
|
600
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.91 |
||
|
13061
|
13061
13061-1055
BOSS,KICK PEDAL
Boss,kick pedal; |
13061-1055 |
— | ||
|
13064
|
13064
13064-1047
LEVER-ASSY-KICK,PEDAL
Lever-assy-kick,pedal; |
13064-1047 |
— | ||
|
13066
|
13066
13066-1026 SHAFT-KICK |
13066-1026 |
US $91.58 |
||
|
13070
|
13070
13070-1063 GUIDE,KICK SPRINGGuide,kick spring; |
13070-1063 |
from US $16.16 |
||
|
13078
|
13078
13078-1061 RATCHET |
13078-1061 |
US $72.71 |
||
|
59051
|
59051
59051-1022 IDLE GEAR, KICKSTRTERIdle gear, kickstrter; |
59051-1022 |
US $99.54 |
||
|
59051A
|
59051A
59051-1051
GEAR-SPUR,KICKSTARTER
Gear-spur,kickstarter; |
59051-1051 |
— | ||
|
92015
|
92015
92015-1001 NUT,12MMNut,12mm; |
92015-1001 |
from US $3.80 |
||
|
92022
|
92022
92022-1019 WASHER,PLAINWasher,plain; |
92022-1019 |
from US $3.48 |
||
|
92022A
|
92022A
92022-252 WASHER |
92022-252 |
from US $3.48 |
||
|
92022B
|
92022B
92022-269 WASHER,PLAINWasher,plain; |
92022-269 |
from US $1.72 |
||
|
92022C
|
92022C
92022-271 WASHER,PLAINWasher,plain; |
92022-271 |
from US $3.17 |
||
|
92022D
|
92022D
92022-315 WASHER,PLAINWasher,plain; |
92022-315 |
from US $3.48 |
||
|
92033
|
92033
92033-029 CIRCLIP,18MMCirclip,18mm; |
92033-029 |
from US $6.34 |
||
|
92055
|
92055
92055-072 O RING,11.5MM"o" ring,11.5mm; |
92055-072 |
US $4.14 |
||
|
92081
|
92081
92081-020 SPRING, KICK PEDALSpring kick pedal; |
92081-020 |
from US $2.85 |
||
|
92081A
|
92081A
92081-122 SPRING,RATCHETSpring,ratchet; |
92081-122 |
from US $5.70 |
||
|
92081B
|
92081B
92081-1253
SPRING,KICKSTARTER
Spring,kickstarter; |
92081-1253 |
— | ||
