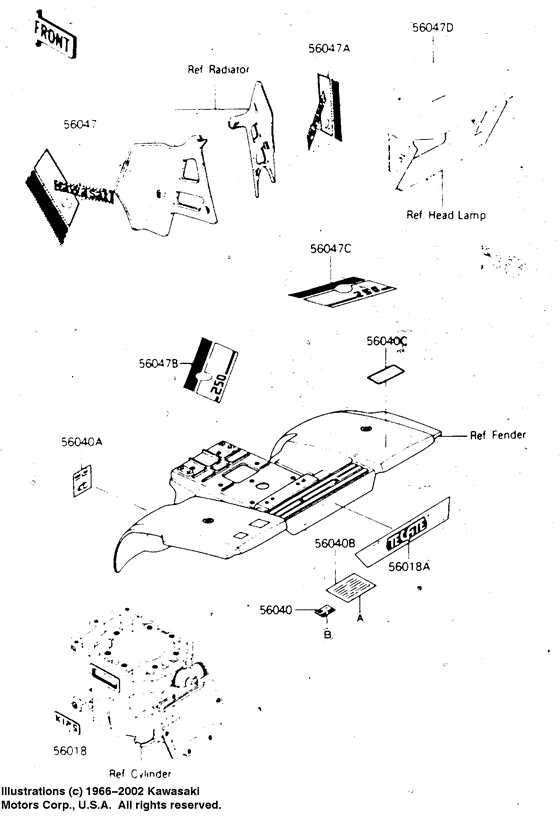

Labels Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56018
|
56018
56018-1651
MARK
|
56018-1651 |
— | ||
|
56018A
|
56018A
56018-1834
MARK,REAR FENDER
Mark,rear fender; |
56018-1834 |
— | ||
|
56040
|
56040
56040-1048
LABEL,GASOLINE
Label,gasoline; |
56040-1048 |
— | ||
|
56040A
|
56040A
56040-1161
LABEL-WARNING
|
56040-1161 |
— | ||
|
56040B
|
56040B
56040-1165
LABEL-WARNING,IMPORTA
Label-warning,importa; |
56040-1165 |
— | ||
|
56040C
|
56040C
56040-1166
LABEL-WARNING
|
56040-1166 |
— | ||
|
56047
|
56047
56047-1002
PATTERN,SHROUD,L.H
Pattern,shroud,l.h; |
56047-1002 |
— | ||
|
56047A
|
56047A
56047-1003
PATTERN,SHROUD.R.H.
Pattern,shroud.r.h.; |
56047-1003 |
— | ||
|
56047B
|
56047B
56047-1004
PATTERN,REAR FENDER
Pattern,rear fender; |
56047-1004 |
— | ||
|
56047C
|
56047C
56047-1005
PATTERN,REAR FENDER
Pattern,rear fender; |
56047-1005 |
— | ||
|
56047D
|
56047D
56047-1006
PATTERN,HEAD LAMP
Pattern,head lamp; |
56047-1006 |
— |
