	Description	OEM Part #	Price
11009	11009 44045057 GASKET,FORK CYLINDER Gasket,fork cylinder;	44045057	from US $3.33
13070	13070 13070-1075 GUIDE,SPRING Guide,spring;	13070-1075	from US $51.31
14024	14024 14024-1145 COVER	14024-1145	US $22.84
16126	16126 16126-1118 VALVE,AIR Valve,air;	16126-1118	US $26.10
39093	39093 39093-1106 PIPE-COMP-SUSP	39093-1106	US $152.37
43089	43089 43089-1109 CYLINDER-SHOCKABSORBE	43089-1109	US $380.86
45014	45014 45014-1359 Shock Absorber	45014-1359	US $1,044.32
46102	46102 46102-1160 ROD,SHOCKABSORBER Rod,shockabsorber;	46102-1160	US $701.68
52001	52001 52001-1068 TANK-OIL	52001-1068	US $348.10
59266	59266 59266-1053 JOINT-BALL,REAR SHOCK Joint-ball,rear shock;	59266-1053	from US $94.55
92001	92001 92001-1752 BOLT,PIPE-COMP-SUSP Bolt,pipe-comp-susp;	92001-1752	US $10.64
92015	92015 92015-1551 NUT,SPRING ADJUST LOC Nut,spring adjust loc;	92015-1551	US $38.39
92015A	92015A 92015-1552 NUT	92015-1552	US $45.32
92027	92027 92027-1871 COLLAR,SHOCK ABSORBER Collar,shockabsorber;	92027-1871	US $11.83
92028	92028 92028-1288 BUSHING,ROD Bushing,rod;	92028-1288	—
92033	92033 92033-1090 RING-SNAP,REARSHOCK Ring-snap,rearshock;	92033-1090	from US $3.64
92033A	92033A 92033-1206 RING-SNAP	92033-1206	US $2.66
92055	92055 92055-1181 RING-O,ROD Ring-o,rod;	92055-1181	—
92055A	92055A 92055-1234 RING-O,ROD Ring-o,rod;	92055-1234	—
92081	92081 92081-1937 SPRING,SHOCKABSORBER Spring,shockabsorber;	92081-1937	US $281.99
92092	92092 92092-1054 BUSHING-RUBBER,SHOCKA Bushing-rubber,shocka;	92092-1054	from US $20.94
92093	92093 92093-1183 SEAL,REAR SHOCK Seal,rear shock;	92093-1183	from US $11.25

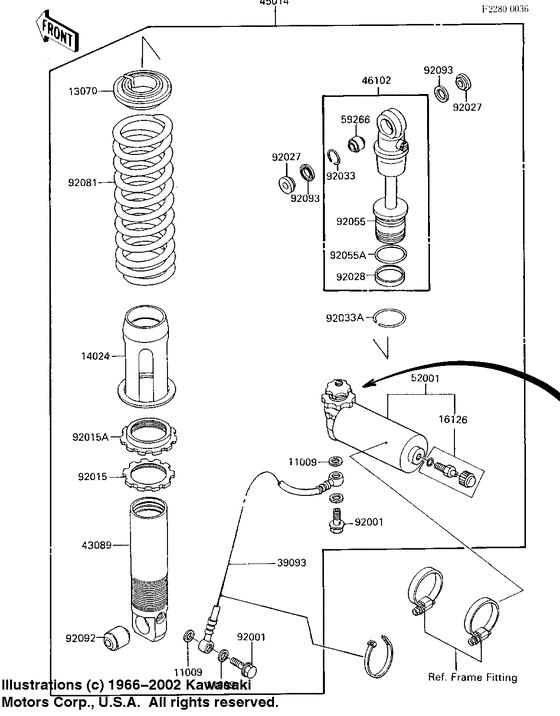

Shock absorber Diagram Kawasaki KXT250 Tecate 3 USA 10412079-683873

Shock absorber Diagram Kawasaki KXT250 Tecate 3 USA 10412079-683873
