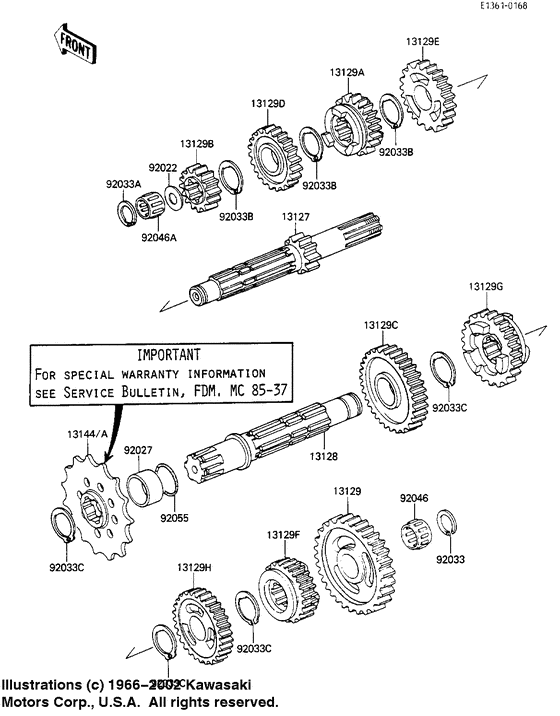

Transmission Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B1
- Engine Capacity
- 250
- Year
- 1986
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13127
|
13127
13127-1120 SHAFT-TRANSMISSION INShaft-transmission in; |
13127-1120 |
US $192.08 |
||
|
13128
|
13128
13128-1047
SHAFT-TRANSMISSION OU
|
13128-1047 |
— | ||
|
13129
|
13129
13129-1160
LOW GEAR,OUTPUT,32T
Low gear,output,32t; |
13129-1160 |
— | ||
|
13129A
|
13129A
13129-1956 GEAR,INPUT 3RD,18TGear,input 3rd,18t; |
13129-1956 |
US $65.52 |
||
|
13129B
|
13129B
13129-1392 GEAR,INPUT 2ND,17TGear,input 2nd,17t; |
13129-1392 |
US $74.43 |
||
|
13129C
|
13129C
13129-1394
GEAR,OUTPUT 2ND,30T
Gear,output 2nd,30t; |
13129-1394 |
— | ||
|
13129D
|
13129D
13129-1526 GEAR,INPUT 4TH,20TGear,input 4th,20t; |
13129-1526 |
from US $110.36 |
||
|
13129E
|
13129E
13129-1527 GEAR,INPUT TOP,28TGear,input top,28t; |
13129-1527 |
from US $105.08 |
||
|
13129F
|
13129F
13129-1529 GEAR,OUTPUT TOP,26TGear,output top,26t; |
13129-1529 |
from US $105.08 |
||
|
13129G
|
13129G
13129-1762 GEAR,OUTPUT 4TH,22TGear,output 4th,22t; |
13129-1762 |
US $84.38 |
||
|
13129H
|
13129H
13129-1763 GEAR,OUTPUT,3RD 25TGear,output,3rd 25t; |
13129-1763 |
from US $105.08 |
||
|
13144
|
13144
13144-1133 SPROCKET-OUTPUT |
13144-1133 |
US $48.11 |
||
|
13144A
|
13144A
13144-1006 ENGINE SPROCKET,14TEngine sprocket,14t; (option) |
13144-1006 |
US $47.84 |
||
|
92022
|
92022
92022-271 WASHER,PLAINWasher,plain; |
92022-271 |
from US $3.17 |
||
|
92027
|
92027
92027-1963 COLLAR,SPROCKETCollar,sprocket; |
92027-1963 |
US $18.37 |
||
|
92033
|
92033
92033-029 CIRCLIP,18MMCirclip,18mm; |
92033-029 |
from US $6.34 |
||
|
92033A
|
92033A
92033-032 CIRCLIP,16MMCirclip,16mm; |
92033-032 |
from US $3.01 |
||
|
92033B
|
92033B
92033-1231 RING-SNAP |
92033-1231 |
from US $3.48 |
||
|
92033C
|
92033C
92033-1089 RING-SNAP,25MMRing-snap,25mm; |
92033-1089 |
from US $4.25 |
||
|
92046
|
92046
92046-1170 BEARING-NEEDLE,KT2026Bearing-needle,kt2026; |
92046-1170 |
from US $16.95 |
||
|
92046A
|
92046A
92046-1184 BEARING-NEEDLE |
92046-1184 |
from US $20 |
||
|
92055
|
92055
92055-035 O-RING"o" ring; |
92055-035 |
from US $3.01 |
