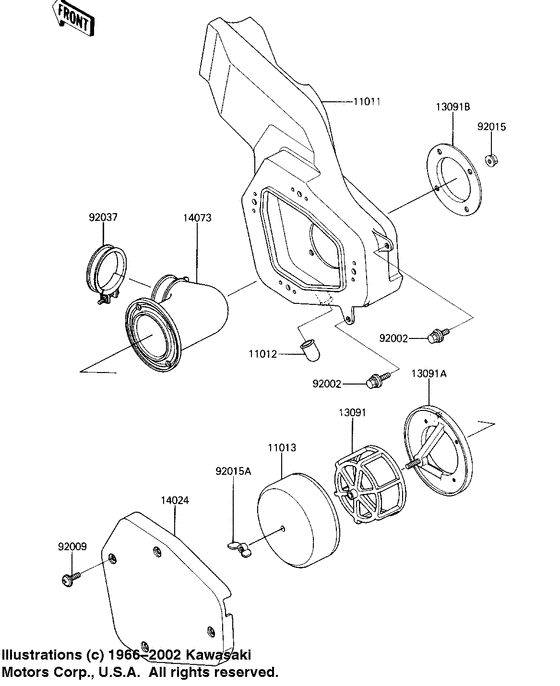

Air cleaner Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-1208 CASE-AIR FILTER |
11011-1208 |
US $78.16 |
||
|
11012
|
11012
11012-1308 CAP,DRAINCap,drain; |
11012-1308 |
US $7.36 |
||
|
11013
|
11013
11013-1136
Element-air filter
|
11013-1136 |
— | ||
|
13091
|
13091
13091-1403 HOLDER,ELEMENTHolder,element; |
13091-1403 |
US $17.11 |
||
|
13091A
|
13091A
13091-1404
HOLDER
|
13091-1404 |
— | ||
|
13091B
|
13091B
13091-1405 HOLDER |
13091-1405 |
from US $18.47 |
||
|
14024
|
14024
14024-1140
COVER,AIR FILTER CASE
Cover,air filter case; |
14024-1140 |
— | ||
|
14073
|
14073
14073-1237 DUCT,AIR FILTERDuct,air filter; |
14073-1237 |
US $56.52 |
||
|
92002
|
92002
92150-1506 BOLT |
92150-1506 |
from US $3.01 |
||
|
92009
|
92009
92009-1287
Screw,6x14
Screw,6x14; |
92009-1287 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0401 SCREW,6X14Screw,6x14; |
92172-0401 |
from US $1.11 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MMNut,flanged,5mm; |
92015-1259 |
from US $2.53 |
||
|
92015A
|
92015A
92016-062 NUT,AIR CLEANER CAPNut,air cleaner cap; |
92016-062 |
from US $3.33 |
||
|
92037
|
92037
92037-171
Clamp
|
92037-171 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-1563 CLAMP |
92171-1563 |
from US $8.08 |
||
