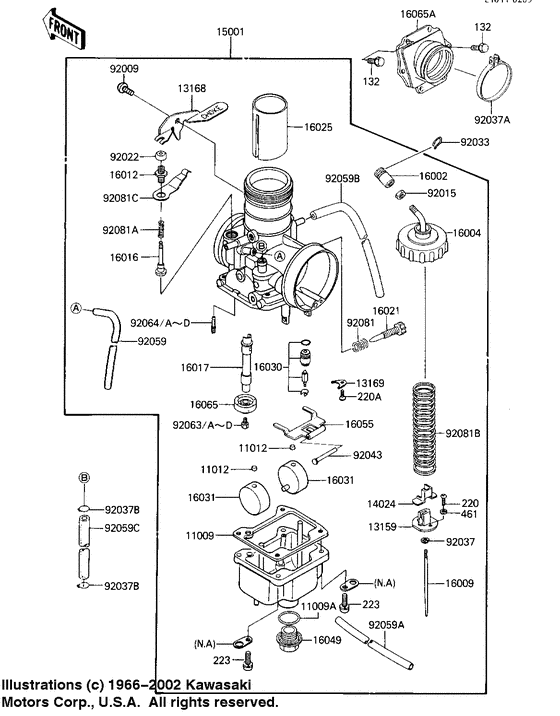

Carburetor Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0620
BOLT-FLANGED-SMALL,6X
|
132G0620 |
— | ||
| replacement | |||||
|
132
|
132
132BA0620 BOLT-FLANGED-SMALL,6X20 |
132BA0620 |
from US $1.43 |
||
|
220
|
220
220B0308
SCREW PAN HEAD 3X8
Screw pan head 3x8; |
220B0308 |
— | ||
| replacement | |||||
|
220
|
220
220AA0308 SCREW-PAN-CROSScrew pan head 3x8; |
220AA0308 |
from US $0.79 |
||
|
220A
|
220A
220B0406
SCREW-PAN CROS,4X6
Screw pan head 4x6; |
220B0406 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0406 SCREW-PAN CROS,4X6Screw pan head 4x6; |
220AA0406 |
from US $1.11 |
||
|
223
|
223
223B0518 SCREW-PAN-WS-CROS |
223B0518 |
US $3.20 |
||
| replacement | |||||
|
223
|
223
223AA0518 SCREW-PAN-WS-CROS |
223AA0518 |
from US $1.09 |
||
|
461
|
461
461F0300
WASHER SPRING 3MM
Washer spring 3mm; |
461F0300 |
— | ||
| replacement | |||||
|
461
|
461
461DA0300 WASHER-SPRINGWasher spring 3mm; |
461DA0300 |
from US $0.78 |
||
|
11009
|
11009
11009-1275
GASKET,FLOAT CHAMBER
Gasket,float chamber; |
11009-1275 |
— | ||
|
11009A
|
11009A
16038-009
GASKET-COVER
Gasket-cover; |
16038-009 |
— | ||
|
11012
|
11012
11012-1047
CAP,FLOAT
Cap,float; |
11012-1047 |
— | ||
|
13159
|
13159
13159-1010
CONNECTOR,THROTTLE
Connector,throttle; |
13159-1010 |
— | ||
|
13168
|
13168
13168-1233 LEVER,STARTERLever,starter; |
13168-1233 |
US $26.98 |
||
|
13169
|
13169
13169-1190
PLATE, LOCK
Plate, lock; |
13169-1190 |
— | ||
|
14024
|
14024
14025-1113
COVER,THROTTLE,VALVE
Cover,throttle,valve; |
14025-1113 |
— | ||
|
15001
|
15001
15001-1207 CARBURETOR-ASSY |
15001-1207 |
US $411.53 |
||
|
16002
|
16002
16002-1006
ADJUSTER,CABLE
Adjuster,cable; |
16002-1006 |
— | ||
|
16004
|
16004
16004-1013
CAP-CHAMBER,MIXING
Cap-chamber,mixing; |
16004-1013 |
— | ||
|
16009
|
16009
16009-1297 NEEDLE-JET,6FL56Needle-jet,6fl56; |
16009-1297 |
US $28.91 |
||
|
16012
|
16012
16012-019 CAP,STARTER PLUNGERCap,starter plunger; |
16012-019 |
from US $13.06 |
||
|
16016
|
16016
16016-011
PLUNGER
|
16016-011 |
— | ||
|
16017
|
16017
16017-1250 JET-NEEDLE,R-2Jet-needle,r-2; |
16017-1250 |
US $35.77 |
||
|
16021
|
16021
16021-1030
SCREW,THROT VLV ADJST
Screw,throt vlv adjst; |
16021-1030 |
— | ||
|
16025
|
16025
16025-1114 VALVE-THROTTLE,CA.3.0Valve-throttle,ca.3.0; |
16025-1114 |
US $138.73 |
||
|
16030
|
16030
16030-1020
VALVE-FLOAT,3.3
Valve-float,3.3; |
16030-1020 |
— | ||
|
16031
|
16031
16031-029
FLOAT
|
16031-029 |
— | ||
|
16049
|
16049
16049-006
COVER,MAIN JET
Cover,main jet; |
16049-006 |
— | ||
|
16055
|
16055
16055-009
ARM,FLOAT
Arm,float; |
16055-009 |
— | ||
|
16065
|
16065
16065-1045 HOLDER,NEEDLE JETHolder,needle jet; |
16065-1045 |
US $55.87 |
||
|
16065A
|
16065A
16065-1124
HOLDER-CARBURETOR
|
16065-1124 |
— | ||
|
92009
|
92009
92009-1412 SCREW |
92009-1412 |
US $5.81 |
||
|
92015
|
92015
16003-004 NUT CABLE ADJUST LOCKNut cable adjust lock; |
16003-004 |
from US $4.59 |
||
|
92022
|
92022
16039-015 CAP,RUBBER,STARTER PLCap,starter plunger; |
16039-015 |
from US $4.75 |
||
|
92033
|
92033
92036-018 CIRCLIPCirclip; |
92036-018 |
from US $2.53 |
||
|
92037
|
92037
16008-010 CIRCLIPCirclip; |
16008-010 |
from US $6.65 |
||
|
92037A
|
92037A
92037-1313
CLAMP,CARBURETOR HOLD
Clamp,carburetor hold; |
92037-1313 |
— | ||
|
92037B
|
92037B
92037-147 CLAMP,CHAIN OILERClamp,chain oiler; |
92037-147 |
from US $4.95 |
||
|
92043
|
92043
16032-008 PIN,FLOATPin,float; |
16032-008 |
from US $4.20 |
||
|
92059
|
92059
92059-1142
HOSE,FUEL OVERFLOW
Tube,3.5x6.5x410; |
92059-1142 |
— | ||
| replacements | |||||
|
92059
|
92059
92059-147
HOSE,FUEL OVERFLOW
Tube,3.5x6.5x410; |
92059-147 |
— | ||
|
92059
|
92059
92059-1102
HOSE,OVERFLOW,3.5X550
Tube,3.5x6.5x410; |
92059-1102 |
— | ||
|
92059A
|
92059A
92059-1211 TUBE,3.5X6.5X350Tube,3.5x6.5x350; |
92059-1211 |
US $8.69 |
||
|
92059B
|
92059B
92059-1292 TUBE,4X7X400,OVERFLOWTube,4x7x400,overflow; |
92059-1292 |
US $6.64 |
||
|
92059C
|
92059C
92059-1431 TUBE,2.5X5.8X270Tube,5.8x10.8x230; |
92059-1431 |
US $7.78 |
||
| replacement | |||||
|
92059C
|
92059C
92059-3731 TUBE,2.5X5.8X270Tube,5.8x10.8x230; |
92059-3731 |
from US $7.49 |
||
|
92063
|
92063
92063-028 JET-MAIN NO 260AJet-main no 260a; (option) |
92063-028 |
US $11.83 |
||
|
92063A
|
92063A
92063-029 JET-MAIN NO 270AJet-main no 270a; (option) |
92063-029 |
from US $12.36 |
||
|
92063B
|
92063B
92063-030
JET-MAIN NO 280A
Jet-main no 280a; |
92063-030 |
— | ||
|
92063C
|
92063C
92063-031 JET-MAIN NO 290A(option) |
92063-031 |
US $11.83 |
||
|
92063D
|
92063D
92063-045 JET-MAIN NO 300AJet-main no 300a; (option) |
92063-045 |
US $8.73 |
||
|
92064
|
92064
92064-022 JET-PILOT NO 30Jet-pilot no 30; (option) |
92064-022 |
from US $10.45 |
||
|
92064A
|
92064A
92064-023 JET-PILOT NO 35Jet-pilot no 35; |
92064-023 |
US $12.51 |
||
|
92064B
|
92064B
92064-024 JET-PILOT NO 40Jet-pilot no 40; (option) |
92064-024 |
from US $13.62 |
||
|
92064C
|
92064C
92064-032 PILOT JET,#A25Jet-pilot no 25; (option) |
92064-032 |
US $15.35 |
||
| replacement | |||||
|
92064C
|
92064C
92064-1020 PILOT JET,#A25Jet-pilot no 25; (option) |
92064-1020 |
from US $10.57 |
||
|
92064D
|
92064D
92064-044 JET-PILOT NO 45Jet-pilot no 45; (option) |
92064-044 |
US $13.94 |
||
|
92081
|
92081
16022-005 SPRING THR STOP SCREWSpring thr stop screw; |
16022-005 |
from US $6.81 |
||
|
92081A
|
92081A
92081-1181
SPRING,STRTR PLUNGER
Spring,strtr plunger; |
92081-1181 |
— | ||
|
92081B
|
92081B
92081-1432
SPRING,THROTTLE VALVE
Spring,throttle valve; |
92081-1432 |
— | ||
|
92081C
|
92081C
92081-1625 SPRING,PLATESpring,plate; |
92081-1625 |
US $14.87 |
||
