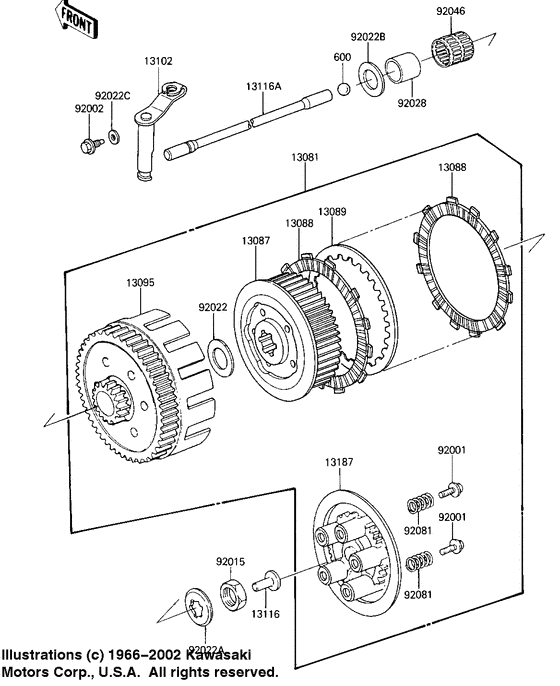

Clutch Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
600
|
600
600A1200 BALL STEEL 3/8'Ball steel 3/8'; |
600A1200 |
from US $0.95 |
||
|
13081
|
13081
13081-1222 CLUTCH-ASSY |
13081-1222 |
US $567.67 |
||
|
13087
|
13087
13087-1081 Hub-clutch |
13087-1081 |
US $97.99 |
||
|
13088
|
13088
13088-1065 PLATE-FRICTION |
13088-1065 |
US $25.85 |
||
|
13089
|
13089
13089-1010 PLATE-CLUTCH |
13089-1010 |
from US $13.31 |
||
|
13095
|
13095
13095-1143 HOUSING-COMP-CLUTCH |
13095-1143 |
US $309.35 |
||
|
13102
|
13102
13102-1078 RELEASE-COMP-CLUTCH |
13102-1078 |
US $46.44 |
||
|
13116
|
13116
13116-1010
ROD-PUSH,CLUTCH
Rod-push,clutch; |
13116-1010 |
— | ||
|
13116A
|
13116A
13116-1120 ROD-PUSH |
13116-1120 |
US $18.29 |
||
|
13187
|
13187
13187-1011 PLATE-CLUTCH OPERATIN |
13187-1011 |
US $66.83 |
||
|
92001
|
92001
92001-1066 BOLT,CLUTCH SPR FITTBolt,clutch spr fitt; |
92001-1066 |
from US $4.25 |
||
|
92002
|
92002
92002-1357 BOLT |
92002-1357 |
from US $2.85 |
||
|
92015
|
92015
92016-028 NUT 20MMNut 20mm; |
92016-028 |
from US $6.34 |
||
| replacement | |||||
|
92015
|
92015
92016-043
NUT,20MM
Nut 20mm; |
92016-043 |
— | ||
|
92022
|
92022
92022-1646 WASHER,20.5X46X2.6Washer,20.5x46x2.6; |
92022-1646 |
US $8.42 |
||
|
92022A
|
92022A
92022-1648
WASHER
|
92022-1648 |
— | ||
|
92022B
|
92022B
92022-168 WASHER-CLUTCH THRUSTWasher-clutch thrust; |
92022-168 |
from US $6.02 |
||
|
92022C
|
92022C
92022-304 WASHER,PLAINWasher,plain; |
92022-304 |
from US $2.53 |
||
|
92028
|
92028
92028-1076
BUSHING,CLUTCH
Bushing,clutch; |
92028-1076 |
— | ||
|
92046
|
92046
92046-1049
BEARING-NEEDLE,WR25/2
Bearing-needle,wr25/2; |
92046-1049 |
— | ||
|
92081
|
92081
92081-139 SPRING,CLUTCHSpring,clutch; |
92081-139 |
from US $5.54 |
||
