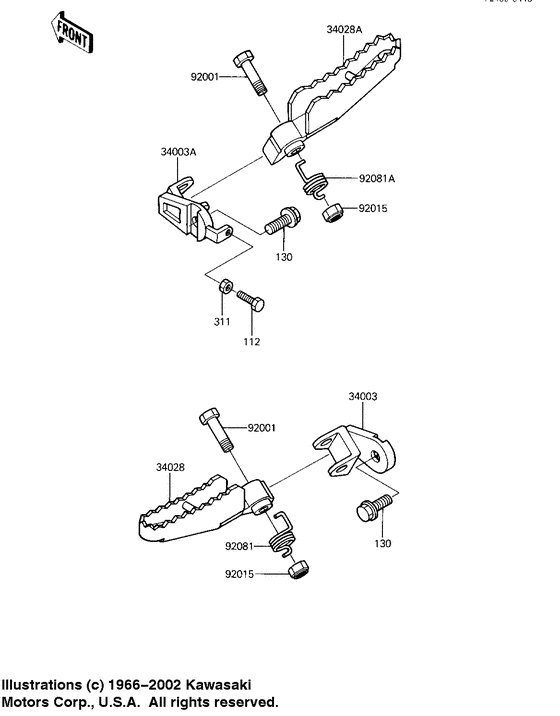

Footrests Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0622 BOLT-UPSET |
112G0622 |
from US $1.27 |
||
| replacement | |||||
|
112
|
112
112BA0622 BOLT-UPSET |
112BA0622 |
from US $1.61 |
||
|
130
|
130
130P1225 BOLT-FLANGED |
130P1225 |
US $5.83 |
||
| replacement | |||||
|
130
|
130
130CA1225 BOLT-FLANGED |
130CA1225 |
from US $1.87 |
||
|
311
|
311
311G0600 NUT-HEXNut,6m/m; |
311G0600 |
US $0.95 |
||
| replacement | |||||
|
311
|
311
311BA0600 NUT-HEXNut,6m/m; |
311BA0600 |
from US $0.95 |
||
|
34003
|
34003
34003-1294 HOLDER-STEP-LH |
34003-1294 |
US $34.74 |
||
|
34003A
|
34003A
34003-1295 HOLDER-STEP-RH |
34003-1295 |
US $34.38 |
||
|
34028
|
34028
34028-1177 STEP,LHStep,lh; |
34028-1177 |
US $55.76 |
||
|
34028A
|
34028A
34028-1178 STEP,RHStep,rh; |
34028-1178 |
US $63.90 |
||
|
92001
|
92001
92001-4038 BOLT,10X44Bolt,10x44; |
92001-4038 |
US $3.35 |
||
|
92015
|
92015
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015
|
92015
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015
|
92015
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
from US $3.33 |
||
|
92081
|
92081
92081-4027 SPRING,STEP,LHSpring,step,lh; |
92081-4027 |
US $4.82 |
||
|
92081A
|
92081A
92081-4028 SPRING,STEP,RHSpring,step,rh; |
92081-4028 |
US $4.25 |
||
