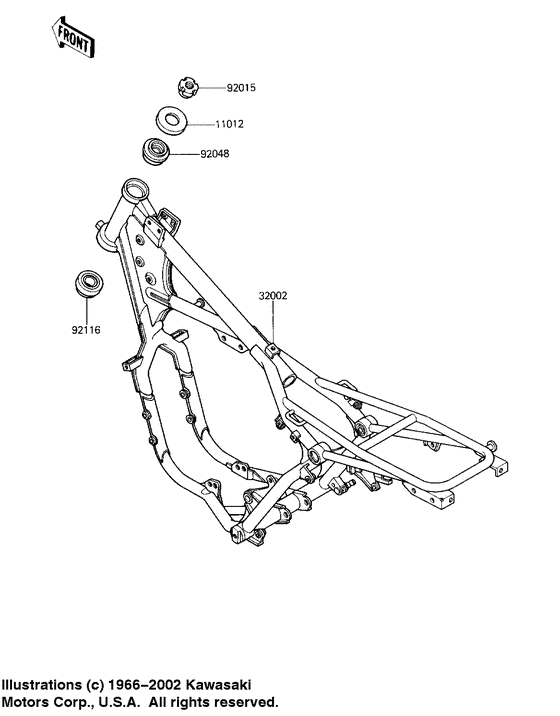

Frame Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1256 CAP,STEERING STEMCap,steering stem; |
11012-1256 |
from US $4.67 |
||
|
32002
|
32002
32002-1838
FRAME-COMP
|
32002-1838 |
— | ||
|
92015
|
92015
92015-1467 NUT,25MM,T=12Nut,25mm,t=12; |
92015-1467 |
US $21.65 |
||
|
92048
|
92048
92047-017 BEARING,STEERING STEMBearing,steering stem; |
92047-017 |
from US $25.58 |
||
|
92116
|
92116
92116-1008 BEARING,ROLLER,32006Bearing,roller,32006; |
92116-1008 |
from US $44.28 |
