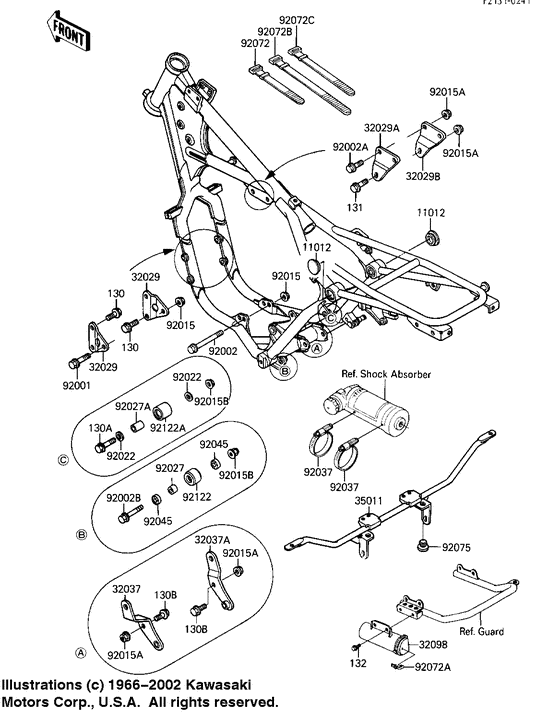

Frame fittings Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0825
BOLT-FLANGED,8X25
Bolt-flanged,8x25; |
130G0825 |
— | ||
| replacement | |||||
|
130
|
130
130BA0825 BOLT-FLANGED,8X25Bolt-flanged,8x25; |
130BA0825 |
from US $1.27 |
||
|
130A
|
130A
130G0855 BOLT-FLANGED,8X55Bolt,flanged,8x55; |
130G0855 |
from US $1.43 |
||
| replacement | |||||
|
130A
|
130A
130BA0855 BOLT-FLANGED,8X55Bolt,flanged,8x55; |
130BA0855 |
from US $1.43 |
||
|
130B
|
130B
130P1020 BOLT-FLANGED,10X20Bolt-flanged,10x20; |
130P1020 |
from US $1.43 |
||
| replacement | |||||
|
130B
|
130B
130CA1020 BOLT-FLANGED,10X20Bolt-flanged,10x20; |
130CA1020 |
from US $1.43 |
||
|
131
|
131
131G1055 BOLT-FLANGEDBolt-flanged,10x55; |
131G1055 |
US $16.20 |
||
| replacement | |||||
|
131
|
131
130BA1055 BOLT-FLANGEDBolt-flanged,10x55; |
130BA1055 |
from US $0.78 |
||
|
132
|
132
132G0816
BOLT-FLANGED-SMALL
|
132G0816 |
— | ||
| replacement | |||||
|
132
|
132
132BA0816 BOLT-FLANGED-SMALL |
132BA0816 |
from US $1.27 |
||
|
11012
|
11012
11012-1211
CAP,UNI TRAK
Cap,uni trak; |
11012-1211 |
— | ||
|
32029
|
32029
32029-1438 BRACKET-ENGINE,FRBracket-engine,fr; |
32029-1438 |
US $13.14 |
||
|
32029A
|
32029A
32029-1439
BRACKET-ENGINE,LH
Bracket-engine,lh; |
32029-1439 |
— | ||
|
32029B
|
32029B
32029-1488
BRACKET-ENGINE,RH
Bracket-engine,rh; |
32029-1488 |
— | ||
|
32037
|
32037
32037-1378 BRACKET-SHOCKABSORBER |
32037-1378 |
US $26.98 |
||
|
32037A
|
32037A
32037-1379 BRACKET-SHOCKABSORBER |
32037-1379 |
US $26.96 |
||
|
32098
|
32098
32098-1016
CASE-TOOL
|
32098-1016 |
— | ||
|
35011
|
35011
35011-1295
STAY,RR
Stay,rr; |
35011-1295 |
— | ||
|
92001
|
92001
92002-1481 BOLT,FLANGED,8X75Bolt,flanged,8x75; |
92002-1481 |
from US $6.02 |
||
|
92002
|
92002
92002-1543
BOLT
|
92002-1543 |
— | ||
|
92002A
|
92002A
92002-1544 BOLT |
92002-1544 |
US $5.90 |
||
|
92002B
|
92002B
92002-1857 BOLT |
92002-1857 |
US $3.64 |
||
|
92015
|
92015
92015-1143 NUT-8MMNut-8mm; |
92015-1143 |
from US $0.99 |
||
|
92015A
|
92015A
92015-1415 NUT,10MMNut,10mm; |
92015-1415 |
from US $3.54 |
||
|
92015B
|
92015B
92015-1432 NUT,8MMNut,8mm; |
92015-1432 |
from US $3.80 |
||
|
92022
|
92022
92022-1629 WASHER,8.5X22X1.5Washer,8.5x22x1.5; |
92022-1629 |
from US $3.80 |
||
|
92027
|
92027
92027-1081 COLLAR |
92027-1081 |
from US $5.60 |
||
|
92027A
|
92027A
92027-1670 COLLAR,CHAIN ROLLERCollar,chain roller; |
92027-1670 |
from US $4.12 |
||
|
92037
|
92037
92037-509 CLAMP |
92037-509 |
from US $6.49 |
||
|
92045
|
92045
92045-1009 BEARING,BALLBearing,ball; |
92045-1009 |
from US $24.98 |
||
|
92072
|
92072
92072-030 BAND,SHORTBand,short; |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1060 BAND,TOOL CASEBand,tool case; |
92072-1060 |
US $3.60 |
||
|
92072B
|
92072B
92072-1211 BAND,L-444.5Band,l-444.5; |
92072-1211 |
US $1.64 |
||
|
92072C
|
92072C
92072-3505
BAND
|
92072-3505 |
— | ||
|
92075
|
92075
92075-281 DAMPER RUBBERDamper rubber; |
92075-281 |
from US $3.64 |
||
|
92122
|
92122
92122-1102 ROLLER,CHAIN GUIDERoller,chain guide; |
92122-1102 |
from US $48.21 |
||
|
92122A
|
92122A
92122-1117 ROLLER,CHAIN GUIDERoller,chain guide; |
92122-1117 |
US $71.50 |
||
