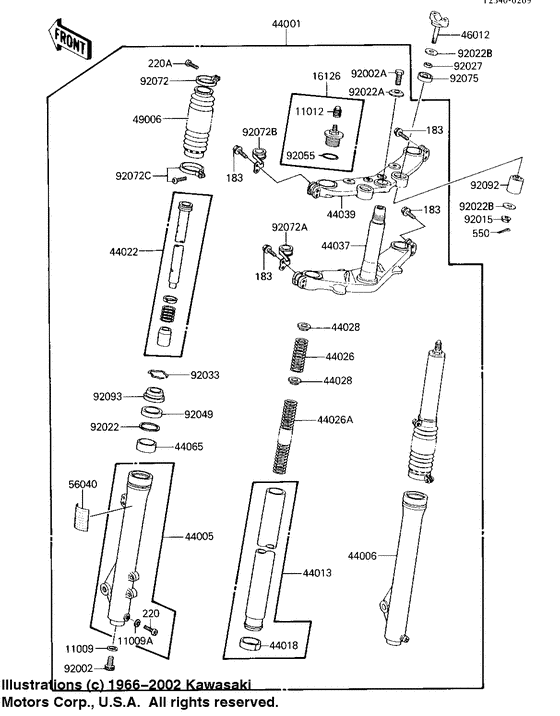

Front fork Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
183
|
183
183G0840
BOLT-UPSET-WS-SMALL
|
183G0840 |
— | ||
| replacement | |||||
|
183
|
183
183BA0840
BOLT-UPSET-WS-SMALL
|
183BA0840 |
— | ||
|
220
|
220
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
220
|
220
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
220A
|
220A
220B0416
SCREW PAN HEAD 4X16
Screw pan head 4x16; |
220B0416 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0416 SCREW-PAN-CROSScrew pan head 4x16; |
220AA0416 |
from US $0.94 |
||
|
550
|
550
550D2020 PIN-COTTER,2.0X20Pin cotter 2.0x20; |
550D2020 |
US $0.79 |
||
| replacement | |||||
|
550
|
550
550AA2020 PIN-COTTER,2.0X20Pin cotter 2.0x20; |
550AA2020 |
from US $0.79 |
||
|
11009
|
11009
11009-1553 GASKET,FORK DRAIN PLUGasket,fork drain plu; |
11009-1553 |
from US $3.96 |
||
|
11009A
|
11009A
44045002 GASKET FORK DRAIN PLGGasket fork drain plg; |
44045002 |
from US $3.96 |
||
|
11012
|
11012
11012-1391 CAP,VALVE AIRCap,valve air; |
11012-1391 |
from US $4.12 |
||
|
16126
|
16126
16126-1147 VALVE |
16126-1147 |
from US $53.86 |
||
|
44001
|
44001
44001-1651 FORK-FRONT |
44001-1651 |
US $2,075.89 |
||
|
44005
|
44005
44005-1237 PIPE-LEFT FORK OUTER |
44005-1237 |
US $340.04 |
||
|
44006
|
44006
44006-1237 PIPE-RIGHT FORK OUTER |
44006-1237 |
US $309.94 |
||
|
44013
|
44013
44013-1235 PIPE-FORK INNER |
44013-1235 |
US $336.69 |
||
|
44018
|
44018
44018-1051 BUSHING-FRONT FORK,INPiston-fork,inner pip; |
44018-1051 |
US $16.27 |
||
| replacement | |||||
|
44018
|
44018
44065-1081
BUSHING-FRONT FORK,IN
Piston-fork,inner pip; |
44065-1081 |
— | ||
|
44022
|
44022
44022-1201 CYLINDER-FORK |
44022-1201 |
US $90.34 |
||
|
44026
|
44026
44026-1356 SPRING-FRONT FORK,UPPSpring-front fork,upp; |
44026-1356 |
US $17.84 |
||
|
44026A
|
44026A
44026-1357 SPRING-FRONT FORK,LWRSpring-front fork,lwr; |
44026-1357 |
US $45.27 |
||
|
44028
|
44028
44028-1060 GUIDE-FORK SPRING |
44028-1060 |
from US $8.30 |
||
|
44037
|
44037
44037-1190 Holder-fork under |
44037-1190 |
US $647.64 |
||
|
44039
|
44039
44039-1128 HOLDER-FORK UPPER |
44039-1128 |
US $463.90 |
||
|
44065
|
44065
44065-1064 BUSHING-FRONT FORKBushing,front fork; |
44065-1064 |
US $25.27 |
||
| replacement | |||||
|
44065
|
44065
44065-1085 BUSHING-FRONT FORKBushing,front fork; |
44065-1085 |
from US $21.84 |
||
|
46012
|
46012
46012-1124 HOLDER-HANDLE,LWRHolder-handle,lwr; |
46012-1124 |
US $33.64 |
||
|
49006
|
49006
49006-1213
BOOT
|
49006-1213 |
— | ||
|
56040
|
56040
56040-1120
LABEL,FRONT FORK
Label,front fork; |
56040-1120 |
— | ||
|
92002
|
92002
92002-1650 BOLT,FORK DRAINBolt,fork drain; |
92002-1650 |
from US $9.50 |
||
|
92002A
|
92002A
92002-1910 BOLT,FORK TOPBolt,fork top; |
92002-1910 |
US $26.68 |
||
|
92015
|
92015
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015
|
92015
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015
|
92015
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
from US $3.33 |
||
|
92022
|
92022
92022-1298 WASHER,FORK OUTER TUBWasher,fork outer tub; |
92022-1298 |
from US $6.57 |
||
|
92022A
|
92022A
92022-1864 WASHER |
92022-1864 |
US $8.28 |
||
|
92022B
|
92022B
92022-196
WASHER-HANDLEBAR FIT
|
92022-196 |
— | ||
|
92027
|
92027
92027-1850 COLLAR,10.5X15.1X6Collar,10.5x15.1x6; |
92027-1850 |
US $4.52 |
||
|
92033
|
92033
92033-1036 CIRCLIPCirclip; |
92033-1036 |
from US $3.80 |
||
|
92049
|
92049
92049-1245 SEAL-OIL,FORKSeal-oil,fork; |
92049-1245 |
US $20.95 |
||
|
92055
|
92055
92055-1321 0 RING,32MM |
92055-1321 |
from US $1.76 |
||
| replacement | |||||
|
92055
|
92055
670B3032 0 RING,32MM |
670B3032 |
from US $1.84 |
||
|
92072
|
92072
92072-1077 BAND,BOOTBand,boot; |
92072-1077 |
from US $6.49 |
||
|
92072A
|
92072A
92072-1166 BAND |
92072-1166 |
from US $16.32 |
||
|
92072B
|
92072B
92072-1204
BAND
|
92072-1204 |
— | ||
|
92072C
|
92072C
92072-1206 BAND |
92072-1206 |
US $9.97 |
||
|
92075
|
92075
92075-1725 DAMPER,HANDLE HOLDERDamper,handle holder; |
92075-1725 |
US $3.11 |
||
|
92092
|
92092
92092-1053 BUSHING-RUBBER |
92092-1053 |
US $48.78 |
||
|
92093
|
92093
92093-1206 SEAL,FORKSeal,fork; |
92093-1206 |
from US $14.41 |
||
