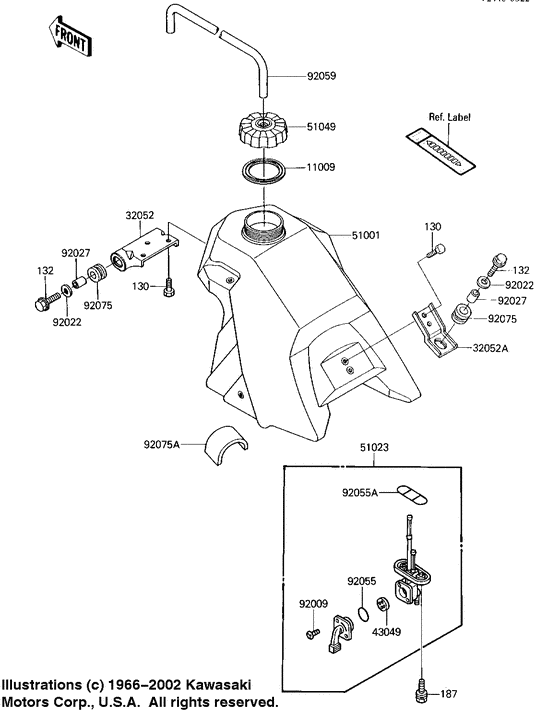

Fuel tank Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0610
BOLT-FLANGED,6X10
Bolt,flanged,6x10; |
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10Bolt,flanged,6x10; |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10Bolt,flanged,6x10; |
130BA0610 |
from US $0.79 |
||
|
132
|
132
132G0625
BOLT-FLANGED-SMALL,6X
|
132G0625 |
— | ||
| replacements | |||||
|
132
|
132
92002-1609 BOLT |
92002-1609 |
from US $2.85 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
187
|
187
187B0616
BOLT-UPSET-WSP
|
187B0616 |
— | ||
| replacement | |||||
|
187
|
187
187AA0616 BOLT-UPSET-WSP |
187AA0616 |
from US $1.70 |
||
|
11009
|
11009
11009-1623
GASKET,FUEL TANK CAP
Gasket,fuel tank cap; |
11009-1623 |
— | ||
|
32052
|
32052
32052-1216 BRACKET-TANK |
32052-1216 |
US $8.84 |
||
|
32052A
|
32052A
32052-1217 BRACKET-TANK |
32052-1217 |
US $8.84 |
||
|
43049
|
43049
43049-1017 PACKING,FUEL TAP VALVPacking,fuel tap valv; |
43049-1017 |
from US $5.70 |
||
| replacement | |||||
|
43049
|
43049
43049-1102 PACKING,VALVEPacking,fuel tap valv; |
43049-1102 |
from US $4.59 |
||
|
51001
|
51001
51001-1232-6W
TANK-COMP
|
51001-1232-6W |
— | ||
|
51023
|
51023
51023-1045
TAP-ASSY
|
51023-1045 |
— | ||
| replacement | |||||
|
51023
|
51023
51023-1344
TAP-ASSY
|
51023-1344 |
— | ||
|
51049
|
51049
51049-1068
CAP-TANK,FUEL
Cap-tank,fuel; |
51049-1068 |
— | ||
|
92009
|
92009
220B0305A
SCREW,PAN HEAD,3X5
|
220B0305A |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1123 SCREW,PAN HEAD,3X5 |
92009-1123 |
from US $0.79 |
||
|
92022
|
92022
92022-1690 WASHER |
92022-1690 |
from US $2.53 |
||
|
92027
|
92027
92027-169 COLLAR |
92027-169 |
from US $3.60 |
||
|
92055
|
92055
92055-1111
O-RING,FUEL TAP LEVER
"0" ring,fuel tap lev; |
92055-1111 |
— | ||
| replacement | |||||
|
92055
|
92055
92055-0960 Ring-O,fuel Tap Lever"0" ring,fuel tap lev; |
92055-0960 |
from US $6.43 |
||
|
92055A
|
92055A
92055-1348 RING-O,FUEL TAP PACKIRing-o,fuel tap packi; |
92055-1348 |
from US $3.96 |
||
|
92059
|
92059
92059-1265
TUBE,5X9X350
Tube,5x9x350; |
92059-1265 |
— | ||
|
92075
|
92075
92075-030
DAMPER RUBB TANK REAR
|
92075-030 |
— | ||
|
92075A
|
92075A
92075-1382 DAMPER |
92075-1382 |
from US $18.37 |
||
