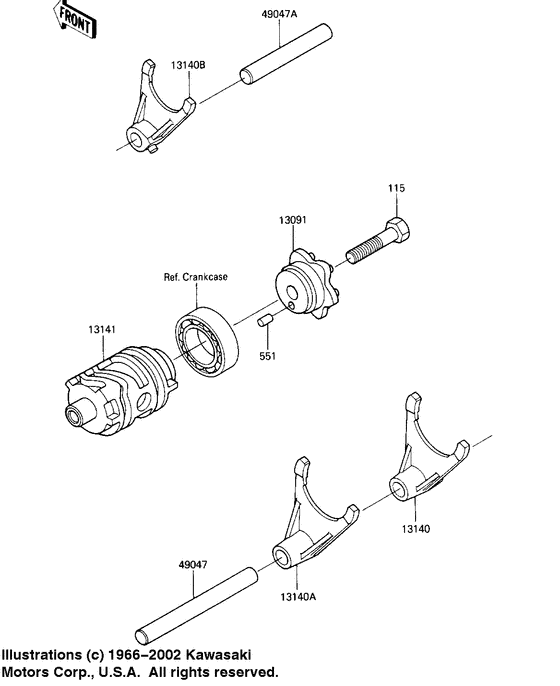

Gear change drum & forks Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115G0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115G0825 |
US $1.43 |
||
| replacement | |||||
|
115
|
115
115BA0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115BA0825 |
from US $1.11 |
||
|
551
|
551
551A0408 PIN,DOWEL,4X8Pin,dowel,4x8; |
551A0408 |
from US $1.17 |
||
|
13040A
|
13040A
13140-1072 FORK-SHIFT,2ND&3RDFork-shift,2nd&3rd; |
13140-1072 |
US $82.28 |
||
|
13091
|
13091
13091-1427 HOLDER |
13091-1427 |
US $92.38 |
||
|
13140
|
13140
13140-1071 FORK-SHIFT,LOWFork-shift,low; |
13140-1071 |
from US $77.13 |
||
|
13140B
|
13140B
13140-1073 FORK-SHIFT,4TH&TOPFork-shift,4th⊤ |
13140-1073 |
US $82.28 |
||
|
13141
|
13141
13141-1069 DRUM-CHANGE |
13141-1069 |
US $116.99 |
||
|
49047
|
49047
49047-1009 ROD,SHIFT,10X90Rod,shift,10x90; |
49047-1009 |
from US $11.72 |
||
|
49047A
|
49047A
49047-1011 ROD,SHIFT,L=65M/MRod,shift,l=65m/m; |
49047-1011 |
US $7.15 |
||
