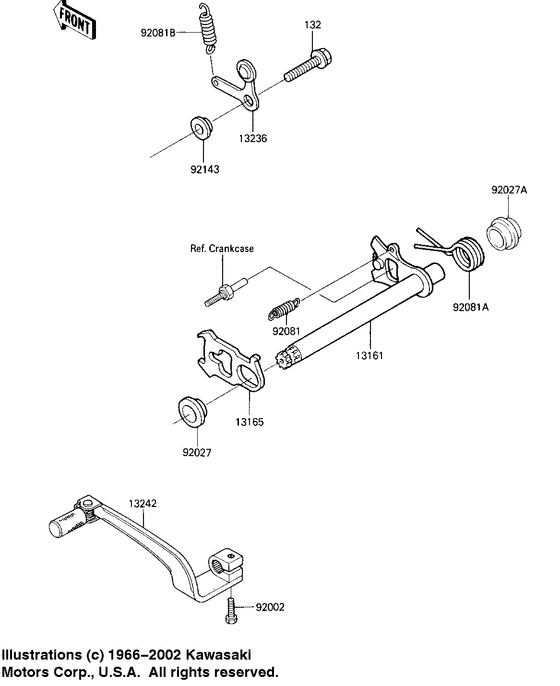

Gear change mechanism Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0616
BOLT-FLANGED-SMALL,6X
|
132G0616 |
— | ||
| replacement | |||||
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
13161
|
13161
13161-1109
LEVER-COMP-CHANGE SHA
|
13161-1109 |
— | ||
|
13165
|
13165
13165-1119
PAWL,CHANGE LEVER
Pawl,change lever; |
13165-1119 |
— | ||
|
13236
|
13236
13236-1152 LEVER-COMP,POSITIONLever-comp,position; |
13236-1152 |
from US $6.97 |
||
|
13242
|
13242
13242-1220 LEVER-ASSY-CHANGE |
13242-1220 |
US $180.77 |
||
|
92002
|
92002
130P0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130P0625 |
from US $1.74 |
||
| replacement | |||||
|
92002
|
92002
130CA0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130CA0625 |
from US $1.61 |
||
|
92027
|
92027
92027-1512
COLLAR,CHANGE SHAFT,L
Collar,change shaft,l; |
92027-1512 |
— | ||
|
92027A
|
92027A
92027-1682 COLLAR,RETURN SPRINGCollar,return spring; |
92027-1682 |
US $8.55 |
||
|
92081
|
92081
92081-076 SPRING-CHANGE LEVERSpring-change lever; |
92081-076 |
from US $4.09 |
||
|
92081A
|
92081A
92081-1716 SPRING,CHANGE SHAFT RSpring,change shaft r; |
92081-1716 |
from US $6.65 |
||
|
92081B
|
92081B
92083-012 SPRING,CHNG DRUM LEVSpring,chng drum lev; |
92083-012 |
from US $3.01 |
||
|
92143
|
92143
92143-1055 COLLAR |
92143-1055 |
from US $4.12 |
||
