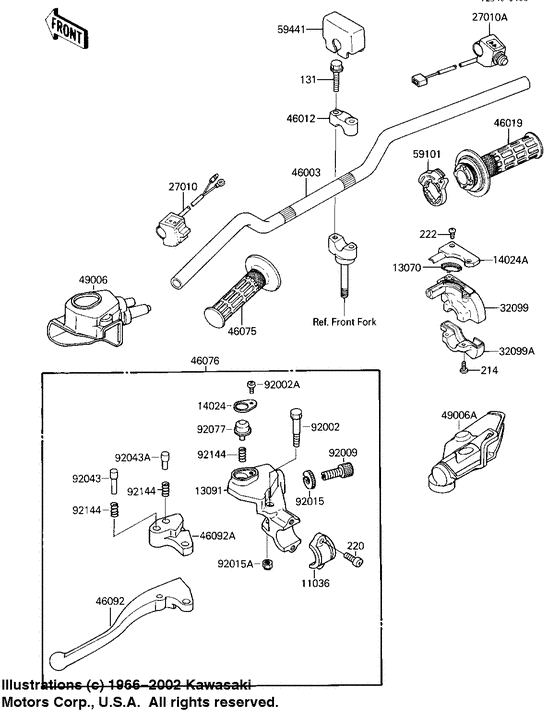

Handlebar Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
131
|
131
131G0830 BOLT-FLANGEDBolt-flanged,8x30; |
131G0830 |
US $25 |
||
| replacement | |||||
|
131
|
131
130CA0830 BOLT-FLANGEDBolt-flanged,8x30; |
130CA0830 |
from US $1.27 |
||
|
214
|
214
220C0518 SCREW-PAN-CROS,5X18Screw-pan-cros,5x18; |
220C0518 |
from US $1.11 |
||
| replacement | |||||
|
214
|
214
220AB0518 SCREW-PAN-CROS,5X18Screw-pan-cros,5x18; |
220AB0518 |
from US $0.79 |
||
|
220
|
220
220C0514
SCREW-PAN-CROSS
Screw-pan-cross,5x14; |
220C0514 |
— | ||
| replacement | |||||
|
220
|
220
220AB0514 SCREW-PAN-CROSSScrew-pan-cross,5x14; |
220AB0514 |
from US $1.25 |
||
|
222
|
222
222E0412 SCREW OVL CNTSNK 4X12Screw ovl cntsnk 4x12; |
222E0412 |
from US $0.95 |
||
|
11036
|
11036
11036-1297
BRACKET,LEVER HOLDER
|
11036-1297 |
— | ||
| replacements | |||||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
|
11056-0150 |
— | ||
|
11036
|
11036
11056-0036 BRACKET,LEVER HOLDER |
11056-0036 |
from US $9.33 |
||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDER |
11058-2777 |
US $17.31 |
||
|
13070
|
13070
13070-1074 GUIDE,THROTTLEGuide,throttle; |
13070-1074 |
from US $5.07 |
||
|
13091
|
13091
13091-1456 HOLDER |
13091-1456 |
from US $27.99 |
||
|
14024
|
14024
14024-1351 COVER |
14024-1351 |
from US $6.06 |
||
|
14024A
|
14024A
14025-1646 COVER,THROTTLE CASE UCover,throttle case u; |
14025-1646 |
from US $7.13 |
||
|
27010
|
27010
27010-1194
SWITCH,ENGINE STOP
Switch,engine stop; |
27010-1194 |
— | ||
|
27010A
|
27010A
27010-1195
SWITCH,LIGHITING
Switch,lighiting; |
27010-1195 |
— | ||
|
32099
|
32099
32099-1036 CASE,THROTTLE UPPCase,throttle upp; |
32099-1036 |
from US $24.98 |
||
|
32099A
|
32099A
32099-1044 CASE,THROTTLE,LWRCase,throttle lwr; |
32099-1044 |
from US $18.07 |
||
| replacement | |||||
|
32099A
|
32099A
32099-0038 CASE,THROTTLE,LWRCase,throttle lwr; |
32099-0038 |
from US $11.09 |
||
|
46003
|
46003
46003-1245 HANDLE-BAR |
46003-1245 |
US $50.49 |
||
|
46012
|
46012
46012-1119 HOLDER-HANDLEHolder-handle,upp; |
46012-1119 |
US $24.59 |
||
| replacement | |||||
|
46012
|
46012
46012-1191 HOLDER-HANDLEHolder-handle,upp; |
46012-1191 |
from US $21.39 |
||
|
46019
|
46019
46019-1054 GRIP-ASSY,THROTTLEGrip-assy, throttle; |
46019-1054 |
from US $26.33 |
||
|
46075
|
46075
46075-1024 GRIP,LHGrip,lh; |
46075-1024 |
from US $17.58 |
||
|
46076
|
46076
46076-1137 LEVER-ASSY-GRIP,LHLever-assy-grip,lh; |
46076-1137 |
from US $105.48 |
||
|
46092
|
46092
46092-1137 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-1137 |
from US $15.07 |
||
|
46092A
|
46092A
46092-1138 LEVER-GRIP,PARKINGLever-grip,parking; |
46092-1138 |
from US $9.63 |
||
|
49006
|
49006
49006-1197
BOOT
|
49006-1197 |
— | ||
|
49006A
|
49006A
49006-1198
BOOT
|
49006-1198 |
— | ||
|
59101
|
59101
59101-1110 REEL,THROTTLEReel,throttle; |
59101-1110 |
from US $8.71 |
||
|
59441
|
59441
59441-1075
COVER-HANDLE
|
59441-1075 |
— | ||
|
92002
|
92002
92002-1833 BOLT,LEVER SETBolt,lever set; |
92002-1833 |
US $4.46 |
||
|
92002A
|
92002A
92002-1834 BOLT,TAPPINGBolt,tapping; |
92002-1834 |
from US $2.23 |
||
|
92009
|
92009
46055009 SCREW,CABLE ADJUSTScrew,cable adjust; |
46055009 |
from US $12.99 |
||
|
92015
|
92015
46056006 NUT,CABLE ADJUST LOCKNut,cable adjust lock; |
46056006 |
from US $6.02 |
||
|
92015A
|
92015A
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92043
|
92043
92043-1341 PIN |
92043-1341 |
from US $4.82 |
||
|
92043A
|
92043A
92043-1342 PIN |
92043-1342 |
from US $4.98 |
||
|
92077
|
92077
92077-1076 KNOB,PARKING LEVERKnob,parking lever; |
92077-1076 |
from US $4.05 |
||
|
92144
|
92144
92144-1058 SPRING |
92144-1058 |
US $4.46 |
||
