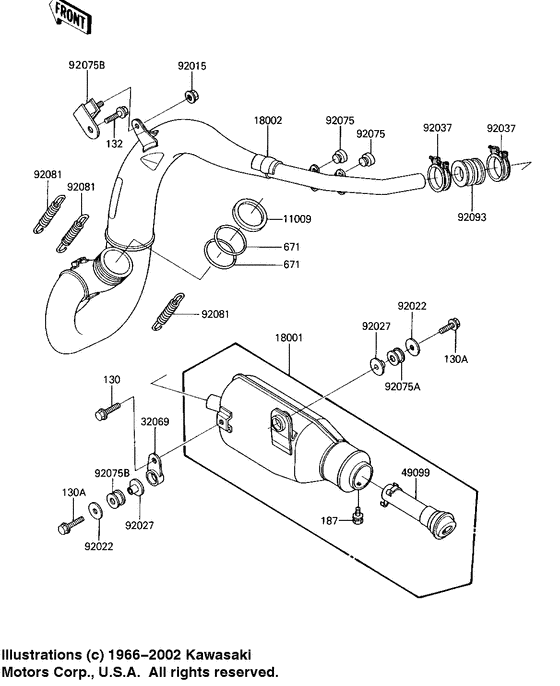

Muffler Diagram Kawasaki KXT250 Tecate 3
- Model code
- KXT250-B2
- Engine Capacity
- 250
- Year
- 1987
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 2 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0814 BOLT-FLANGED,8X14Bolt,flanged,8x14; |
130G0814 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130BA0814 BOLT-FLANGED,8X14Bolt,flanged,8x14; |
130BA0814 |
from US $0.95 |
||
|
130A
|
130A
130G0830 BOLT-FLANGED,8X30Bolt,flanged,8x30; |
130G0830 |
US $1.42 |
||
| replacements | |||||
|
130A
|
130A
130CA0830 BOLT-FLANGEDBolt,flanged,8x30; |
130CA0830 |
from US $1.27 |
||
|
130A
|
130A
130BA0830 BOLT-FLANGED,8X30Bolt,flanged,8x30; |
130BA0830 |
from US $1.43 |
||
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
|
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
187
|
187
187B0612
BOLT-UPSET-WSP
Bolt 6x12; |
187B0612 |
— | ||
| replacement | |||||
|
187
|
187
187AA0612 BOLT-UPSET-WSPBolt 6x12; |
187AA0612 |
from US $1.11 |
||
|
671
|
671
671E2550 O RING,50MMO ring,50mm; |
671E2550 |
from US $12.04 |
||
|
11009
|
11009
11009-1253
GASKET,EXHAUST PIPE
Gasket,exhaust pipe; |
11009-1253 |
— | ||
| replacement | |||||
|
11009
|
11009
11009-1949 GASKET,EXHAUST PIPEGasket,exhaust pipe; |
11009-1949 |
from US $9.19 |
||
|
18001
|
18001
18001-1647 MUFFLER |
18001-1647 |
US $207.83 |
||
|
18002
|
18002
18002-1747
BODY-COMP-MUFFLER
|
18002-1747 |
— | ||
|
32069
|
32069
32069-1259
BRACKET-MUFFLER
|
32069-1259 |
— | ||
|
49099
|
49099
49099-1221
BAFFLE-PIPE MUFFLER
|
49099-1221 |
— | ||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
92022-298
WASHER,PLAIN
Washer,plain; |
92022-298 |
— | ||
|
92027
|
92027
92027-1981 COLLAR,MUFFLERCollar,muffler; |
92027-1981 |
from US $6.54 |
||
|
92037
|
92037
92037-1129 CLAMP,CARBURETOR,40MMClamp,carburetor,40mm; |
92037-1129 |
from US $6.49 |
||
|
92075
|
92075
92075-1598 DAMPER,SIDE COVERDamper,side cover; |
92075-1598 |
from US $5.52 |
||
|
92075A
|
92075A
92075-1809 DAMPER,MUFFLERDamper,muffler; |
92075-1809 |
from US $4.98 |
||
|
92075B
|
92075B
92075-1891 DAMPER,MUFFLERDamper,muffler; |
92075-1891 |
from US $20.75 |
||
|
92081
|
92081
92081-1526 SPRING,MUFFLER CONECTSpring,muffler conect; |
92081-1526 |
from US $7.13 |
||
|
92093
|
92093
92093-1085
SEAL,MUFFLER
Seal, muffler; |
92093-1085 |
— | ||
